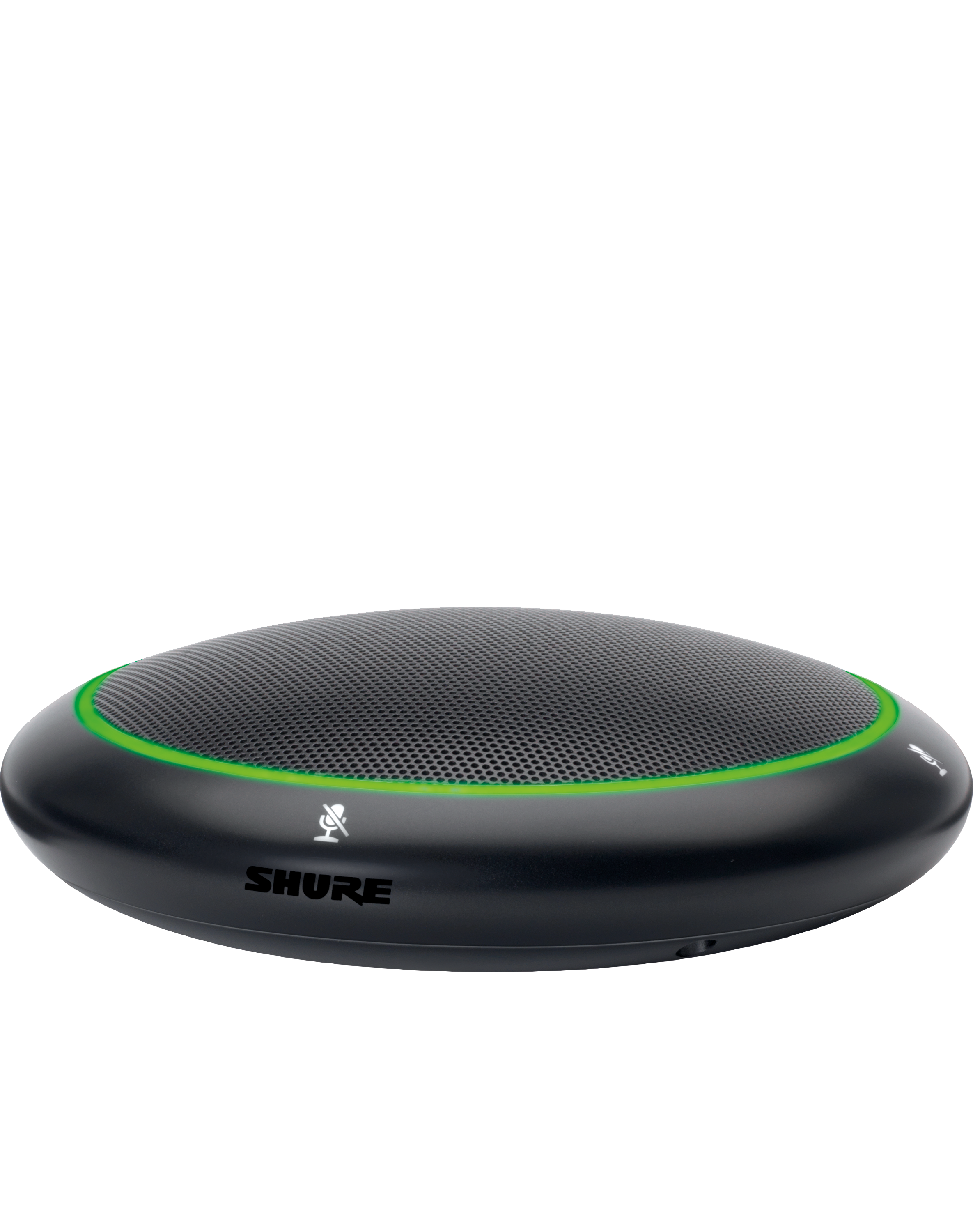

Shure MXA310 Table Array Microphone

By Brian Long

Introduction

The Shure MXA310 Table Array Microphone is a premium solution for AV conferencing, offering advanced audio capture and flexible polar pattern options to suit any meeting environment. Featuring Shure’s Microflex® Advance™ technology, the MXA310 delivers crystal-clear sound while seamlessly integrating with modern conferencing systems.

Equipped with Dante audio networking and sophisticated digital signal processing, the MXA310 ensures high-quality audio output. Its compact design and customizable polar patterns make it an ideal choice for boardrooms, classrooms, and collaboration spaces.

Features and Specifications

Features
  • Advanced Microflex® Advance™ technology for superior sound quality
  • Adjustable polar patterns: Cardioid, Hypercardioid, Supercardioid, Toroid, Omnidirectional, and Bidirectional
  • Built-in IntelliMix DSP for automatic mixing, echo cancellation, noise reduction, and gain control
  • Dante digital audio networking compatibility
  • Compact and lightweight design for easy table placement
  • Browser-based control application for simplified configuration
  • PoE-powered for flexible installation
Specifications
Specification Value
Polar Patterns Cardioid, Hypercardioid, Supercardioid, Toroid, Omnidirectional, Bidirectional
Power Requirements PoE (Class 0)
Power Consumption 4 W maximum
Dimensions (H x W x D) 3.6 x 13.4 x 13.4 cm (1.4 x 5.3 x 5.3 in.)
Weight 362 g (0.8 lbs)
Frequency Response 100 Hz to 20 kHz
Channel Count 5 channels (4 independent, 1 automix)
Sampling Rate 48 kHz
Bit Depth 24
Sensitivity -21 dBFS/Pa
Maximum SPL 115.2 dB SPL
Signal-to-Noise Ratio Cardioid: 75 dB, Toroid: 67 dB
Dynamic Range Cardioid: 96 dB, Toroid: 90 dB
Self-Noise Cardioid: 19.2 dB SPL-A, Toroid: 26.8 dB SPL-A
Latency < 1 ms
Operating Temperature Range −6.7°C (20°F) to 40°C (104°F)
Storage Temperature Range −29°C (-20°F) to 74°C (165°F)
