Shure MXA710 Linear Array Microphone
By Brian Long
Introduction
The Shure MXA710 Linear Array Microphone is a cutting-edge solution for premium AV conferencing environments. Designed with Shure’s renowned Microflex® Advance™ technology, the MXA710 captures high-quality audio with precision and clarity. Its linear form factor provides versatile mounting options, including wall, ceiling, or table placement, making it ideal for modern meeting spaces.
Equipped with Steerable Coverage™ technology and IntelliMix DSP, the MXA710 delivers unparalleled audio performance. Whether installed in small huddle rooms or expansive conference areas, this microphone ensures consistent, clear audio capture for every participant.

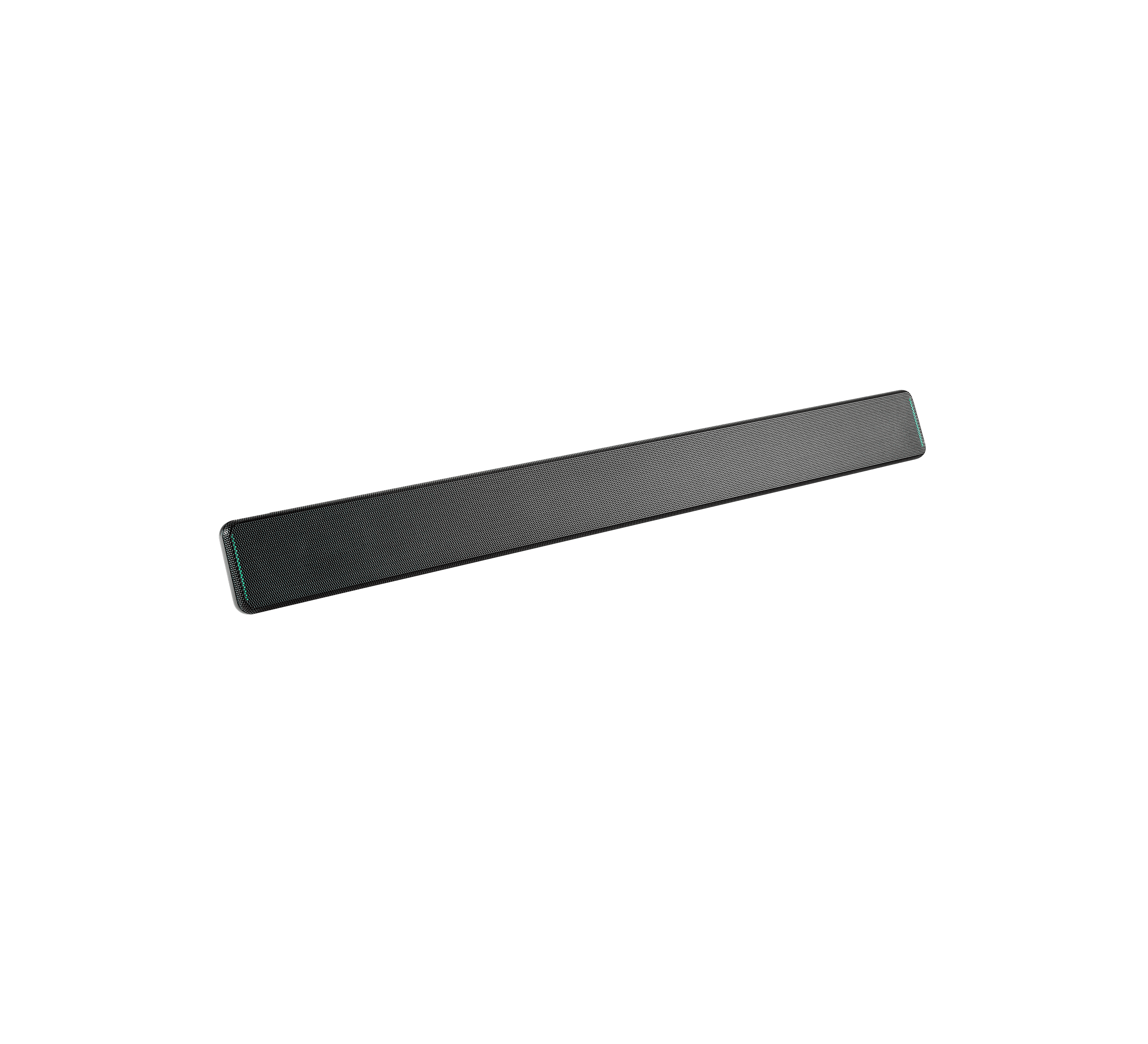

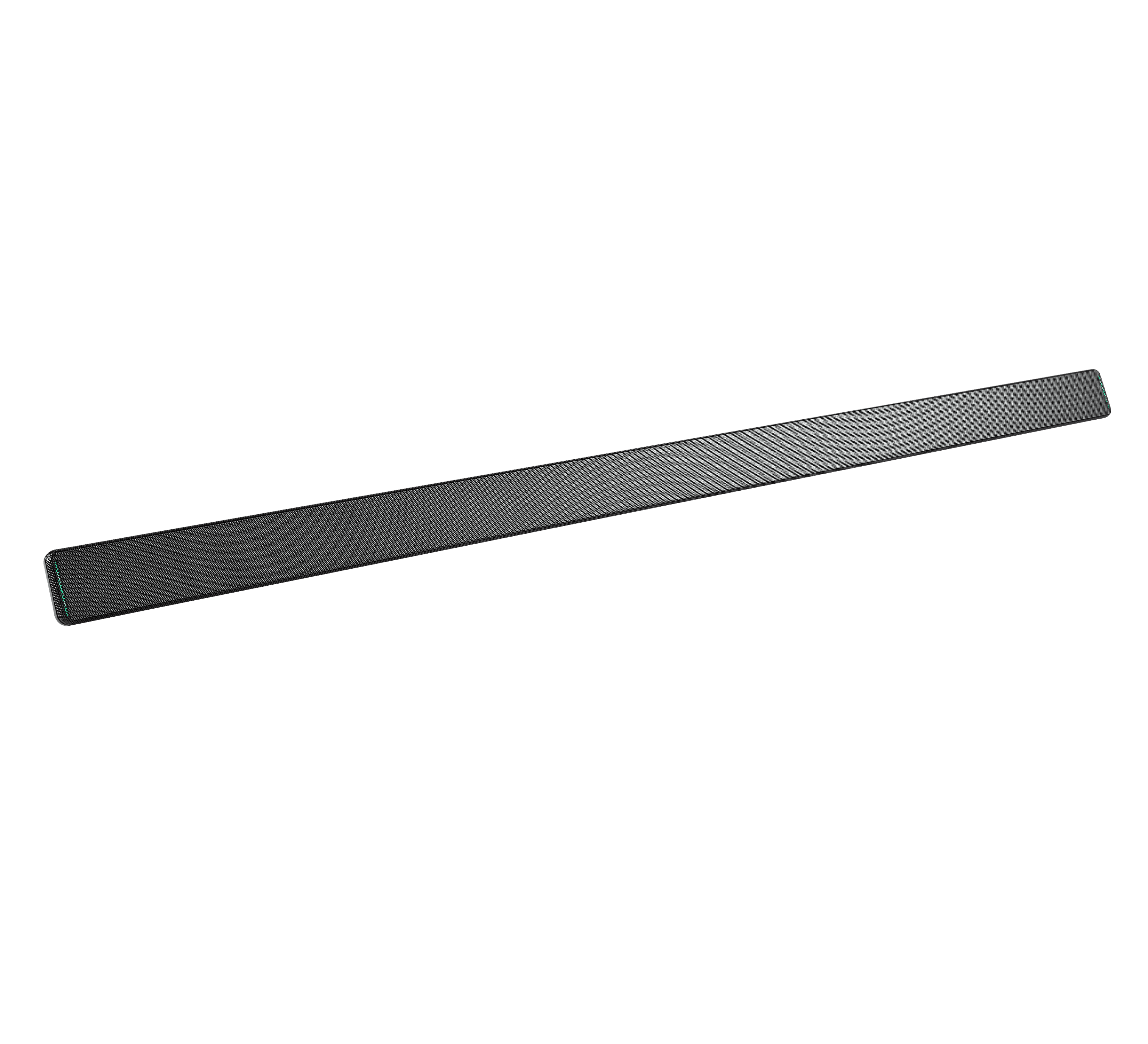

Product Gallery
Features and Specifications
Features
- Steerable Coverage™ technology with up to 8 lobes (4 lobes for 2-foot model)
- IntelliMix DSP for advanced audio processing, including echo cancellation and noise reduction
- Autofocus technology for real-time lobe adjustment
- Default room coverage templates for simplified setup
- PoE-powered for streamlined installation
- Dante and AES67 audio networking compatibility
- LED status bars with customizable colors and brightness
- Shure Designer and SystemOn software support for configuration and management
- Plenum-rated (UL2043) for air handling spaces
- Multiple mounting accessories for versatile installation
Specifications
| Specification | Value |
|---|---|
| Lobe Width | Narrow: 30°, Medium: 40°, Wide: 70° |
| Power Requirements | PoE (Class 0) |
| Power Consumption | 10 W maximum |
| Dimensions (H x W x L) | 2-foot model: 0.87 x 2.36 x 25.04 in (22.09 x 60 x 636 mm) |
| 4-foot model: 0.87 x 2.36 x 49.12 in (22.09 x 60 x 1247.76 mm) | |
| Weight | 2-foot model: 2 lbs (0.91 kg) |
| 4-foot model: 3.7 lbs (1.67 kg) | |
| Frequency Response | 100 Hz to 20 kHz |
| Channel Count | 2-foot model: 6 channels (4 independent, 1 automix, 1 AEC reference) |
| 4-foot model: 10 channels (8 independent, 1 automix, 1 AEC reference) | |
| Sampling Rate | 48 kHz |
| Bit Depth | 24 |
| Latency | Direct Outputs: 8.7 ms |
| Automix Outputs: 19.3 ms | |
| Signal-to-Noise Ratio | 71.2 dB A-weighted |
| Dynamic Range | 2-foot model: 78.5 dB |
| 4-foot model: 79.1 dB | |
| Operating Temperature Range | −6.7°C (20°F) to 40°C (104°F) |
| Storage Temperature Range | −29°C (-20°F) to 74°C (165°F) |
Manuals and Documents
- Specifications Sheet - Detailed specifications for the MXA710 Linear Array Microphone.
