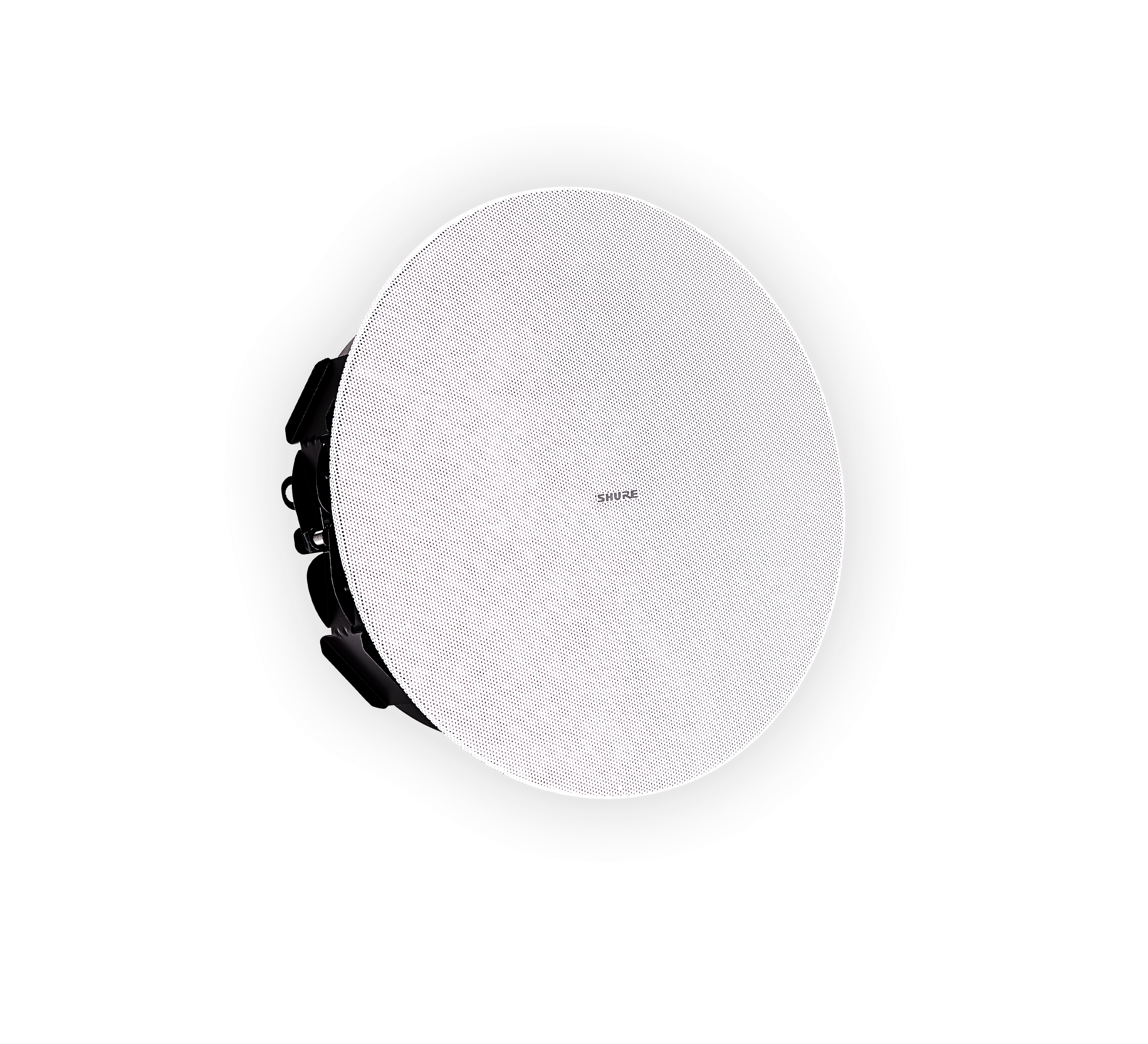

Shure Microflex MXN5-C Networked Ceiling Loudspeaker

By Brian Long

Introduction

The Shure Microflex MXN5-C Networked Ceiling Loudspeaker is a premium solution for AV conferencing, designed to provide exceptional speech intelligibility in modern boardrooms and meeting spaces. Featuring a low-profile design optimized for drop ceilings, this PoE/PoE+ enabled loudspeaker integrates seamlessly with Shure’s networked audio ecosystem and the Dante digital audio protocol.

Equipped with integrated DSP utilities like EQ, delay, and limiter, the MXN5-C delivers crystal-clear sound without the need for external amplifiers. Its aesthetic design blends subtly into any environment, while its software-based configuration ensures efficient installation and control.

Features and Specifications

Features
  • Pre-tuned frequency response optimized for voice intelligibility in AV conferencing
  • Low-profile design for drop ceiling installations
  • PoE/PoE+ enabled, eliminating the need for outboard amplifiers
  • Integrated DSP utilities: EQ, delay, limiter, and signal/tone generator
  • Dante digital audio networking with 2 inputs and 1 output
  • Aesthetic design with a magnetic, paintable grille
  • UL 2043 plenum rated for air handling spaces
  • Software-based configuration via Shure Designer
Specifications
Specification Value
Connector Type RJ45
Power Requirements PoE (Class 0) or PoE Plus (Class 4)
Power Consumption PoE: 12 W max (11 W typical); PoE+: 24 W max (23 W typical)
Weight 6.5 lbs (2.95 kg)
Dimensions (H x W x D) 12 x 12 x 4 in. (304.8 x 304.8 x 101.6 mm)
Frequency Response 120 Hz to 20 kHz (-3 dB)
Maximum Output Level PoE: 92 dB SPL @ 1 meter; PoE+: 98 dB SPL @ 1 meter
Coverage Angle PoE: 180° @ 2 kHz; PoE+: 107° @ 10 kHz
Latency 1.5 ms (excluding Dante latency)
Control Software Shure Designer
Operating Temperature Range −6.7°C (20°F) to 40°C (104°F)
Storage Temperature Range −29°C (20°F) to 74°C (165°F)
Plenum Rating UL 2043 (Suitable for Air Handling Spaces)
