Shure IntelliMix P300

By Brian Long

Shure IntelliMix P300

Introduction

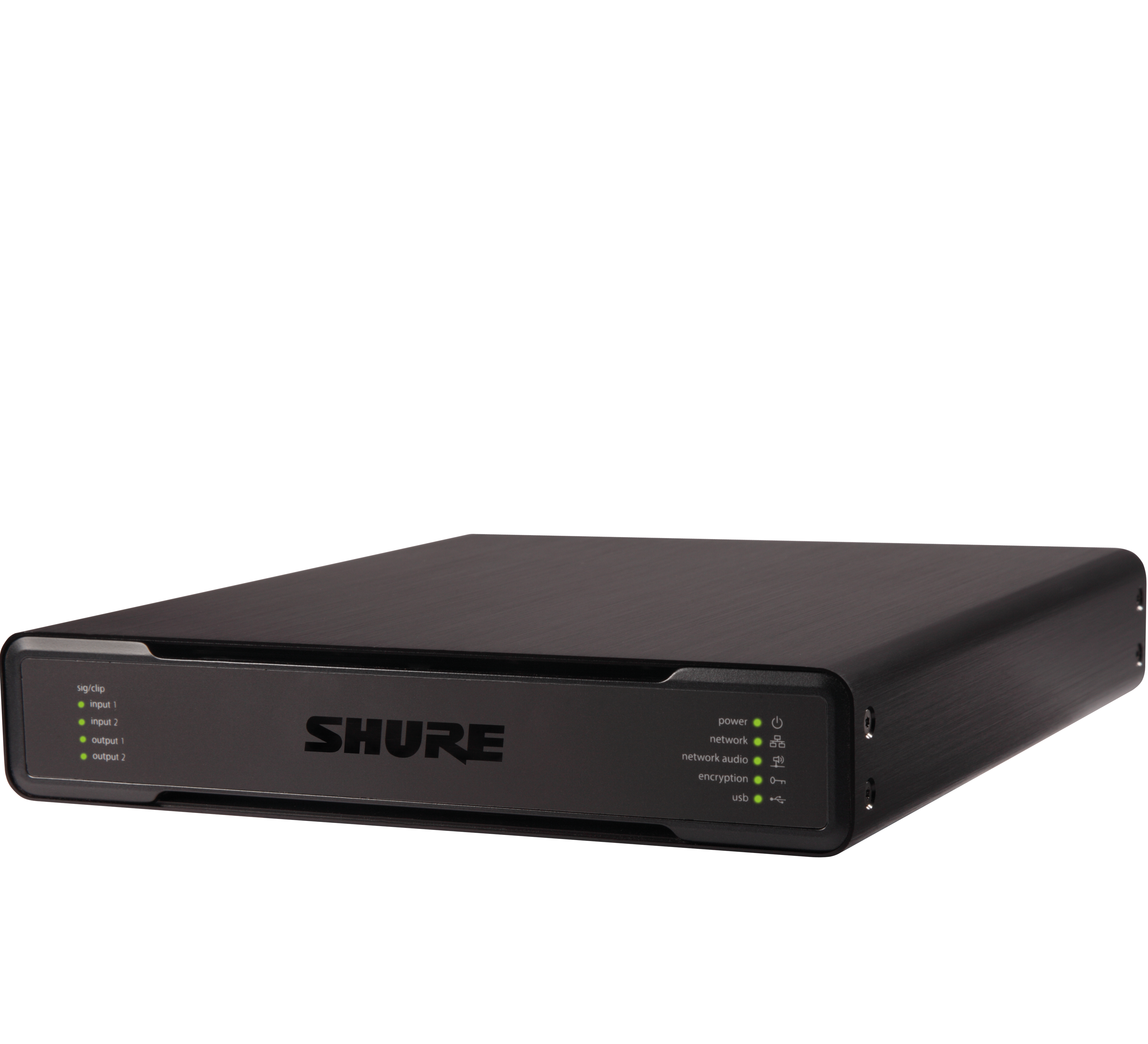

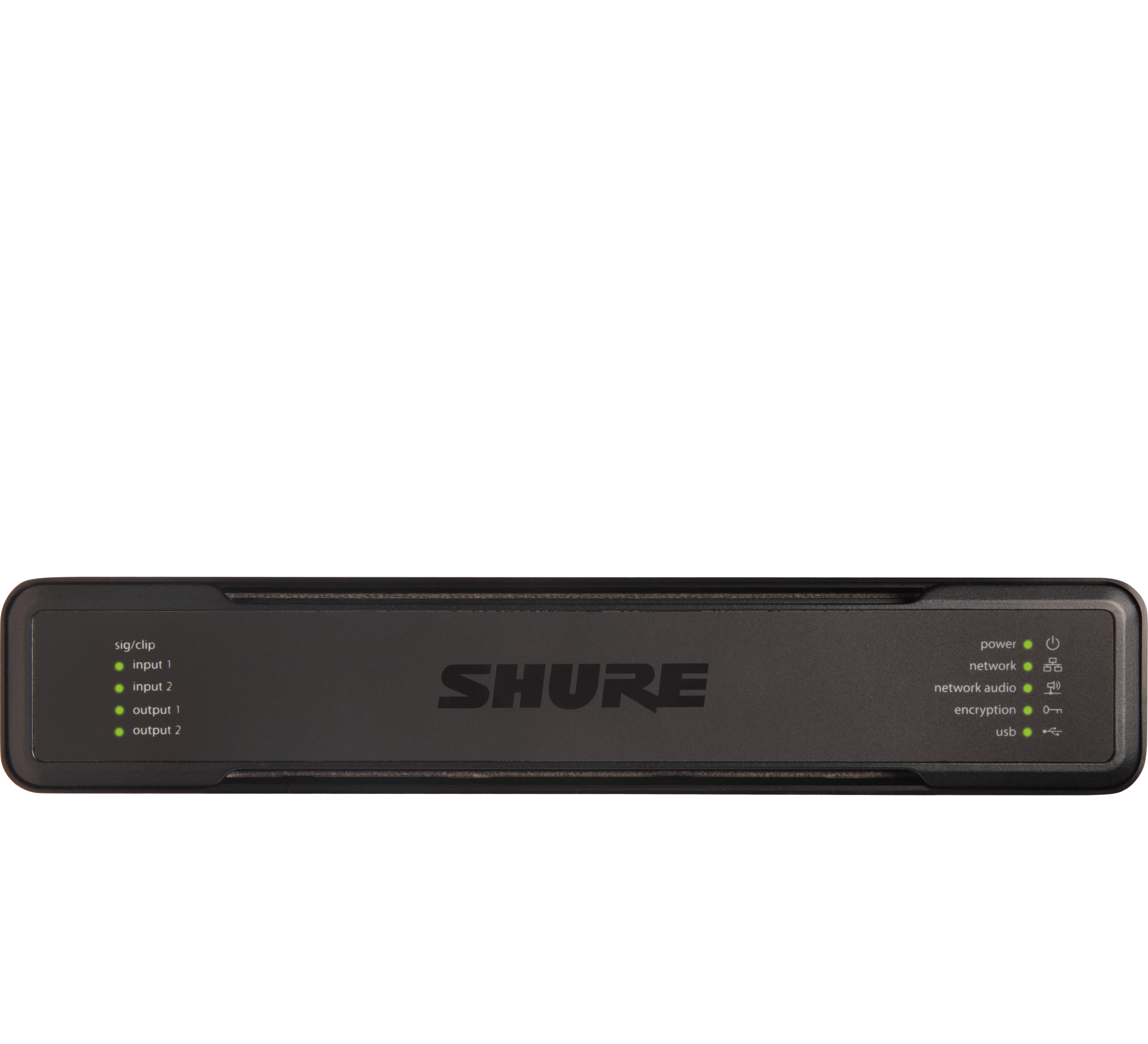

The Shure IntelliMix P300 is a compact, high-performance conferencing audio processor designed to elevate the quality of professional meetings. Equipped with advanced IntelliMix DSP technology, it ensures crystal-clear sound in every conversation. With its versatile connectivity, including USB, Dante, and analog options, the P300 seamlessly integrates with a variety of AV setups, making it the ultimate solution for modern conferencing environments.

This intuitive processor features flexible compatibility with leading conference platforms, ensuring effortless installation and operation. Compact and powerful, the IntelliMix P300 is engineered for high reliability and excellent audio performance.

Features and Specifications

Features
  • Advanced IntelliMix DSP for noise reduction and echo cancellation
  • Multiple connectivity options: USB, Dante, and analog
  • Compact design for easy integration into AV systems
  • Shure Designer software compatibility for simplified setup and control
  • Power over Ethernet Plus (PoE+) for efficient power management
  • Support for 10 Dante input and 8 output channels
  • Industry-leading audio quality with low latency
Specifications
Specification

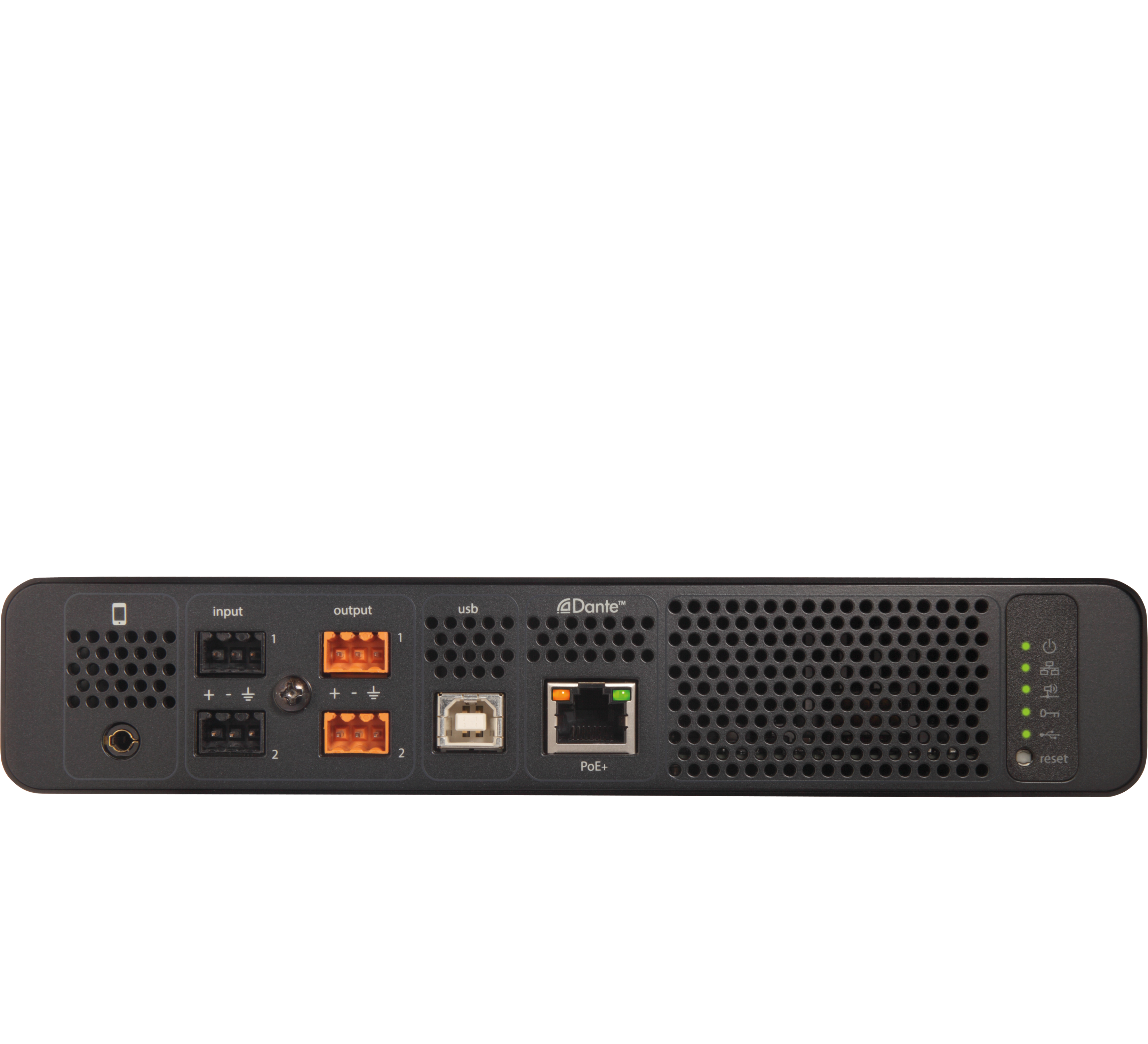

Inputs 2 x 3-pin block connector (balanced)
Outputs 2 x 3-pin block connector (balanced)
Mobile Connectivity 1 x 3.5 mm TRRS
USB 1 x USB 2.0 Type B (2 in, 2 out)
Dante Channels 10 inputs, 8 outputs
Dimensions (H x W x D) 4 x 21 x 22.6 cm (1.6 x 8.3 x 8.9 in.)
Weight 1.71 kg (3.8 lbs)
Power Requirements PoE+ (802.3 at Type 2, Class 4)
Power Consumption 17.5 W (max)
Frequency Response 20 Hz to 20 kHz
Sampling Rate 48 kHz
Dynamic Range Analog-to-Dante: 113 dB, Dante-to-Analog: 117 dB
Latency 3.4 ms to 15.4 ms (depends on configuration)
