Lenovo ThinkCentre Tiny-In-One 22 Gen 5
By Brian Long
Overview

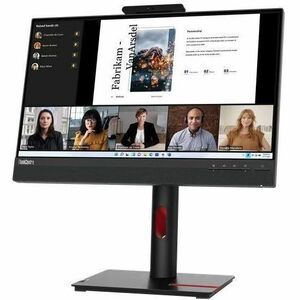

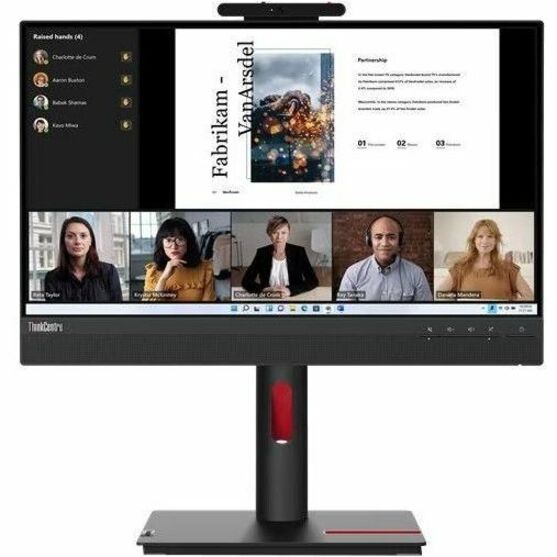

The Lenovo ThinkCentre Tiny-In-One (TIO) 22 Gen 5 is a space-saving, modular display designed for seamless integration with Lenovo’s ThinkCentre and ThinkStation Tiny PCs (4th Gen and later). Its 21.5-inch Full HD IPS screen delivers crisp visuals with 99% sRGB color coverage, TÜV Eye Comfort certification, and Natural Low Blue Light for extended use without eye strain.
Both variants feature a built-in 1080p webcam with a privacy shutter, dual 3W speakers, and VoIP features including mute/volume controls and a Smart Traffic Light meeting indicator. The Touch variant adds 10-point capacitive touch support with passive pen compatibility and anti-fingerprint coating, allowing for intuitive interaction across productivity and collaboration apps.
Product Gallery








- 21.5" FHD (1920 x 1080) IPS panel with anti-glare coating
- TÜV Rheinland Eye Comfort, Low Blue Light, and Eyesafe 2.0 certifications
- 99% sRGB color gamut with 16.7 million colors

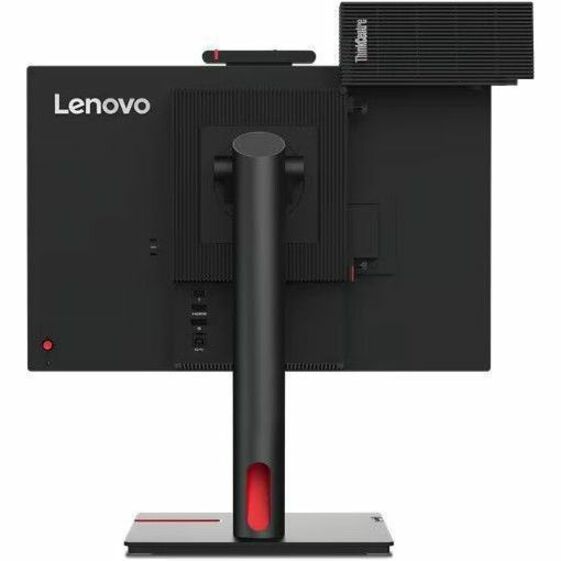

- Modular rear bay supports Lenovo Tiny PCs (4th Gen and newer)

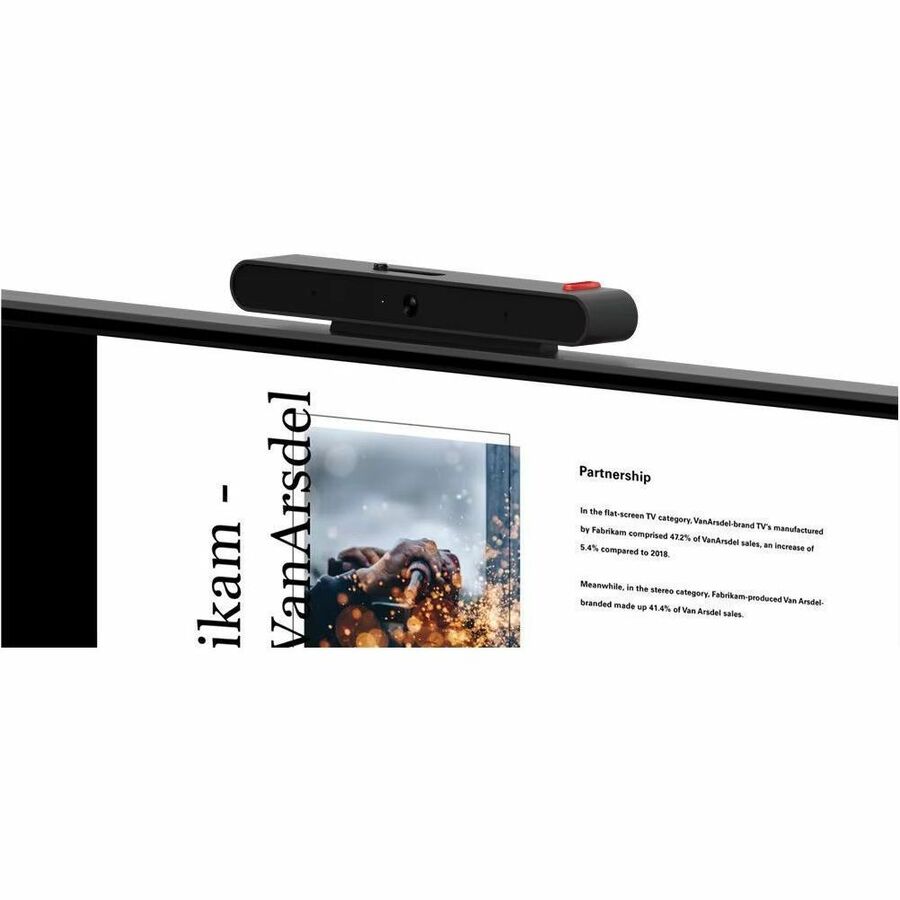

- Integrated 1080p RGB webcam with privacy shutter and Smart Traffic Light
- Dual 3W front-facing speakers and noise-canceling microphone
- Dedicated VoIP buttons for quick volume/mute access
- Touch Variant: 10-point capacitive touch with passive pen support and anti-fingerprint finish

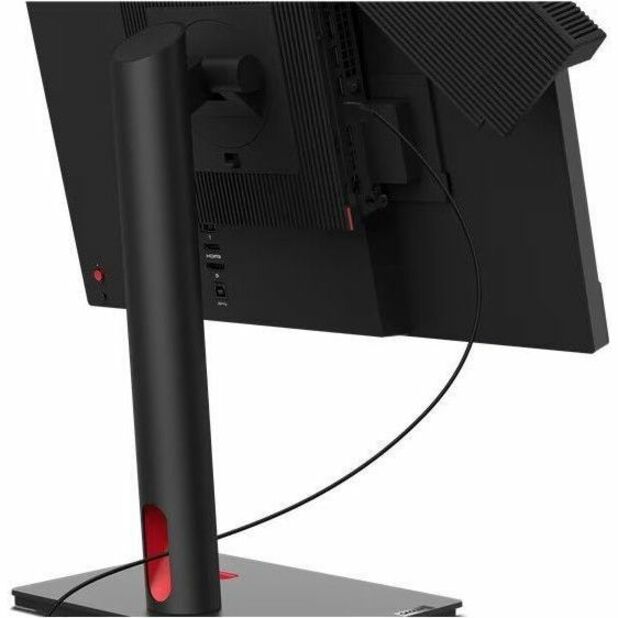

- HDMI 1.4 and DisplayPort 1.2 inputs for expanded connectivity
- USB hub with 1x USB-B upstream and 1x USB-A downstream

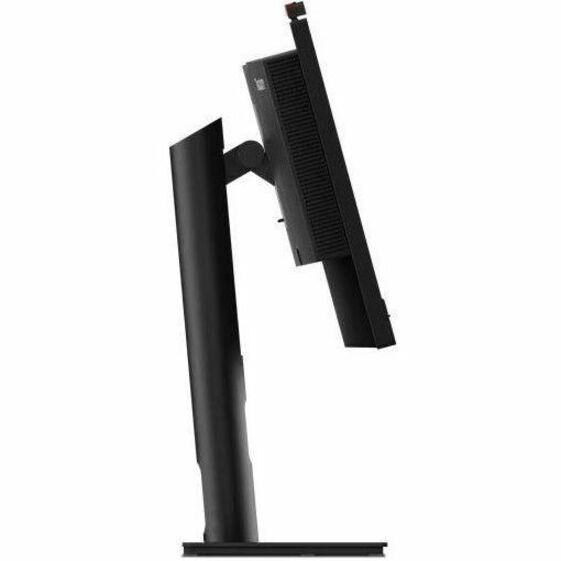

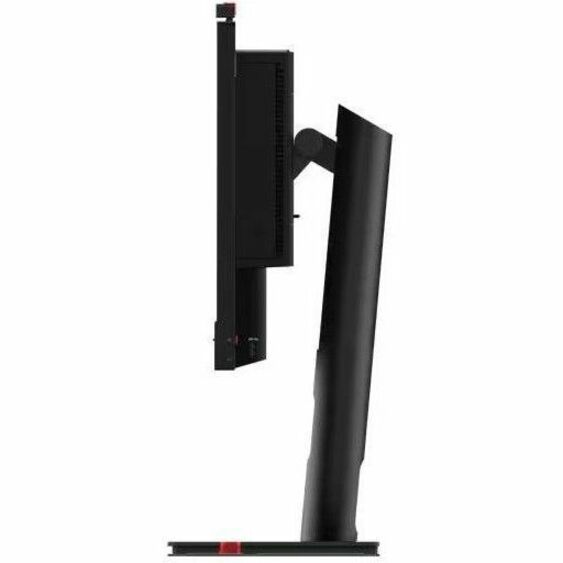

- Ergonomic stand: tilt, swivel, lift, and pivot adjustment
- VESA mount compatible (100 x 100 mm)
- Green packaging and optional CO₂ offset service
Specification | Non-Touch Variant | Touch Variant |
---|---|---|
Display Size | 21.5-inch | 21.5-inch |
Resolution | 1920 x 1080 (FHD) | 1920 x 1080 (FHD) |
Panel Type | IPS, Anti-glare | IPS, Anti-glare, Anti-fingerprint |
Color Gamut | 99% sRGB | 99% sRGB |
Color Depth | 8-bit (6+FRC), 16.7M colors | 8-bit (6+FRC), 16.7M colors |
Brightness | 250 cd/m² | 250 cd/m² (panel), 230 cd/m² (overall) |
Response Time | 4ms (Extreme), 6ms (Normal) | 4ms (Extreme), 6ms (Normal) |
Refresh Rate | 60Hz | 60Hz |
Touch Support | No | Yes, 10-point capacitive with pen support |
Webcam | 1080p RGB with ThinkShutter | 1080p RGB with ThinkShutter |
Microphone | Yes, noise-canceling | Yes, noise-canceling |
Speakers | 2 x 3W | 2 x 3W |
Smart Traffic Light | Yes | Yes |
KVM Switch | Yes | Yes |
Video Inputs | 1x HDMI 1.4, 1x DP 1.2 | 1x HDMI 1.4, 1x DP 1.2 |
USB Upstream | 1x USB 3.2 Gen 1 Type-B | 1x USB 3.2 Gen 1 Type-B |
USB Downstream | 1x USB 3.2 Gen 1 Type-A | 1x USB 3.2 Gen 1 Type-A |
Power Supply | External (90W) | External (90W) |
Power Consumption (Typ/Max) | 13.4W / 33.0W | 13.4W / 33.0W |
VESA Mount | Yes (100 x 100 mm) | Yes (100 x 100 mm) |
Ergonomics | Tilt: -5°/23.5°, Swivel: ±45°, Lift: 155 mm, Pivot: -5°/90° | Same |
Dimensions (Unpacked w/ Stand) | 489.3 x 512.3 x 207.6 mm (W x H x D) | Same |
Weight (Head Only) | 3.2 kg | 3.4 kg |
- ThinkCentre TIO 22 Gen 5 Non-Touch Datasheet – Full specifications and setup guidance
- ThinkCentre TIO 22 Gen 5 Non-Touch User Guide – Comprehensive user manual for setup and operation
- ThinkCentre TIO 22 Gen 5 Touch Datasheet – Includes touch capability details and pen support
- ThinkCentre TIO 22 Gen 5 Touch User Guide – Detailed instructions for touch functionality
