Lenovo ThinkCentre Tiny-In-One 24 Gen 5
By Brian Long
Overview
The Lenovo ThinkCentre Tiny-In-One 24 Gen 5 offers an innovative modular display solution for enterprise and educational environments. Its 23.8-inch Full HD IPS panel delivers vivid visuals and 99% sRGB color coverage, enhanced by TÜV Eye Comfort certifications and Natural Low Blue Light technology.
With seamless compatibility for Lenovo Tiny PCs (4th Gen and later), this display simplifies IT maintenance while promoting a clean, cable-free desk setup. Both variants — Touch and Non-Touch — include integrated 1080p webcams, dual 3W speakers, and smart VoIP features like a traffic light indicator and mute/volume buttons. The Touch model enhances interaction with 10-point capacitive input and passive pen support.

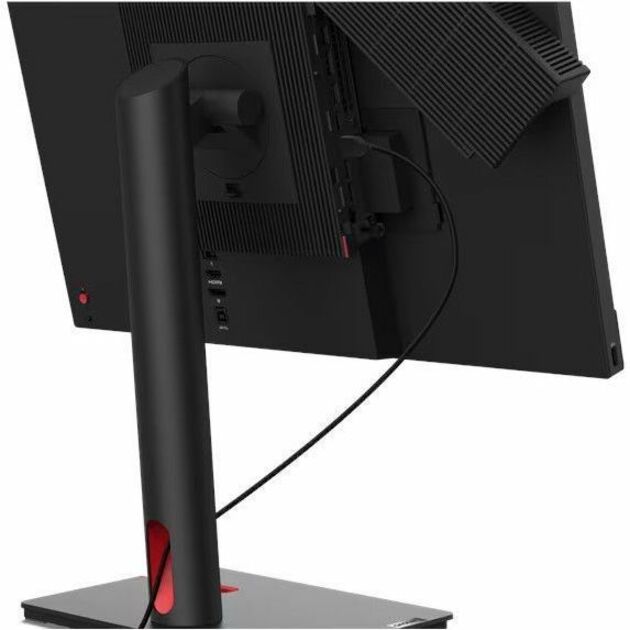

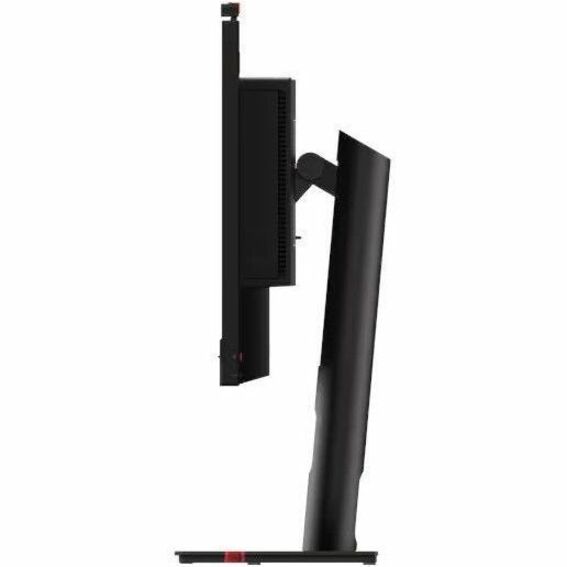

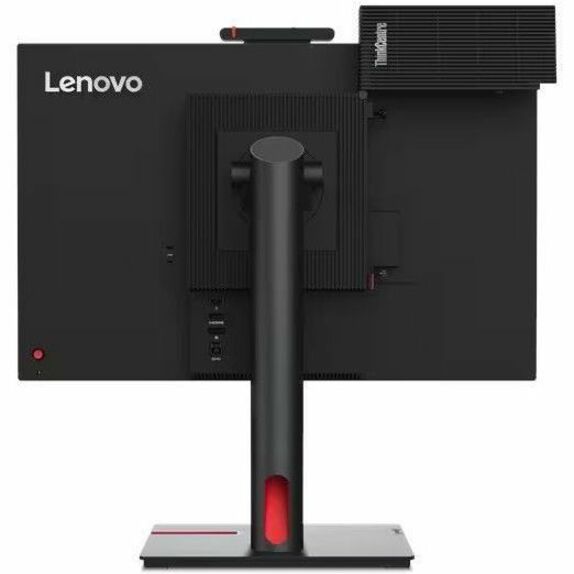

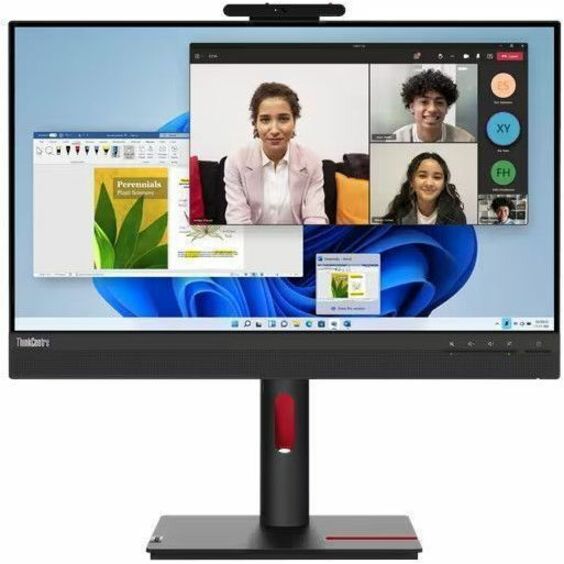

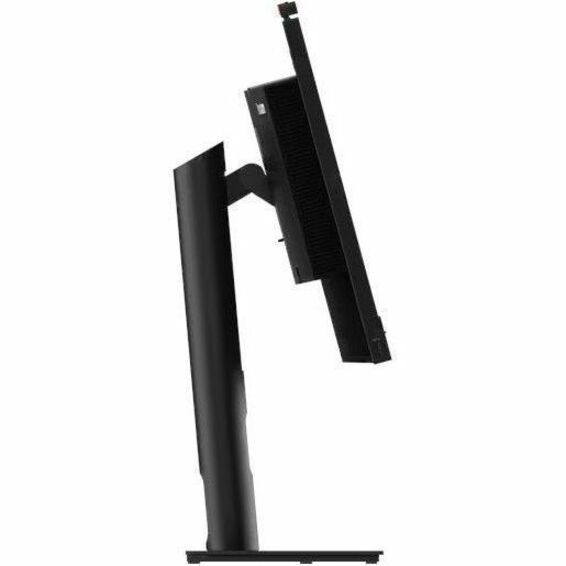

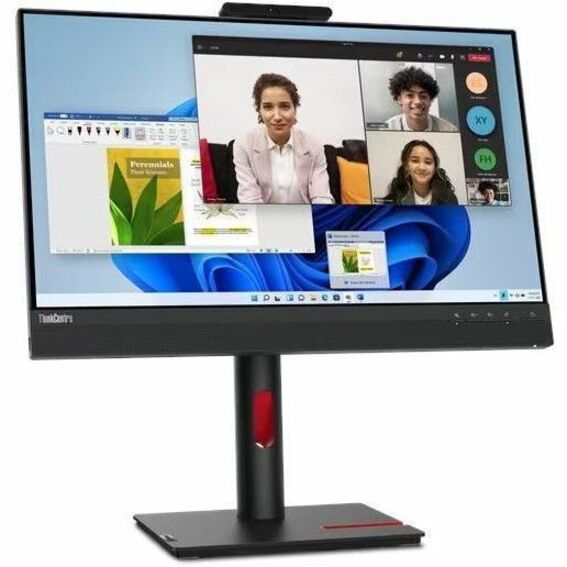

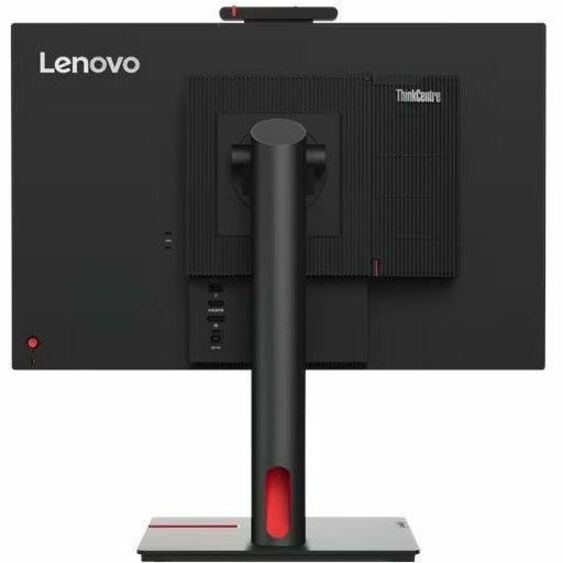

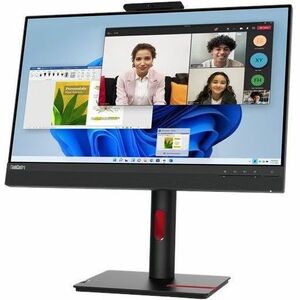

Product Gallery









Features
- 23.8" Full HD (1920 x 1080) IPS display with 3-side borderless design
- 99% sRGB color gamut with TÜV Eye Comfort, Low Blue Light, and Eyesafe 2.0 certification
- Modular bay supports Lenovo ThinkCentre / ThinkStation Tiny PCs (4th Gen+)

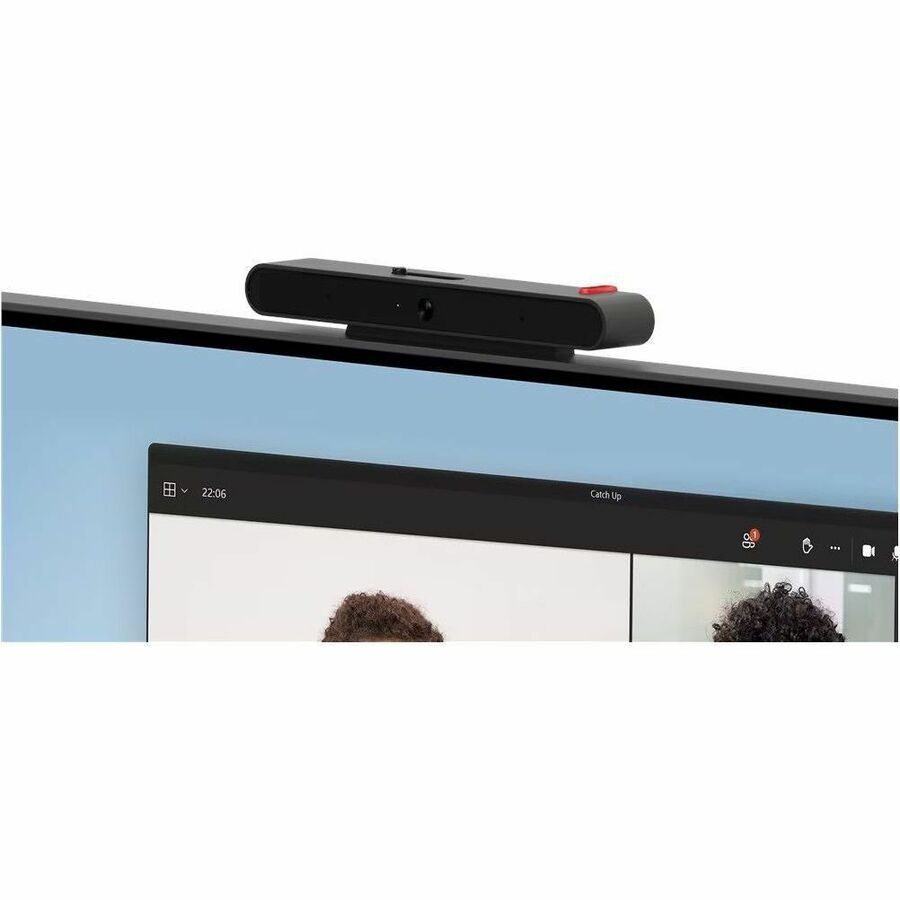

- Integrated 1080p RGB webcam with privacy shutter and noise-canceling mic
- Smart Traffic Light meeting indicator and VoIP buttons for mute/volume
- 2 x 3W front-facing speakers for immersive audio
- Touch Variant: 10-point capacitive touch and anti-fingerprint surface with passive pen support
- Natural Low Blue Light hardware solution for reduced eye strain
- HDMI 1.4 and DP 1.2 video inputs; USB hub with upstream/downstream ports
- Ergonomic stand with tilt, lift, swivel, and pivot adjustability
- VESA mount compatible (100 x 100 mm)
- Sustainable packaging and optional CO₂ offset service
Specifications
Specification | Non-Touch Variant | Touch Variant |
---|---|---|
Display Size | 23.8-inch | 23.8-inch |
Resolution | 1920 x 1080 (FHD) | 1920 x 1080 (FHD) |
Panel Type | IPS, Anti-glare | IPS, Anti-glare, Anti-fingerprint |
Color Gamut | 99% sRGB | 99% sRGB |
Brightness | 250 cd/m² | 250 cd/m² (panel), 230 cd/m² (overall) |
Color Depth | 8-bit (6+FRC), 16.7 Million colors | 8-bit (6+FRC), 16.7 Million colors |
Response Time | 4ms (Extreme), 6ms (Normal) | 4ms (Extreme), 6ms (Normal) |
Refresh Rate | 60Hz | 60Hz |
Touch Support | No | Yes, 10-point capacitive with passive pen |
Webcam | 1080p RGB | 1080p RGB |
Speakers | 2 x 3W | 2 x 3W |
Microphone | Yes, noise-canceling | Yes, noise-canceling |
KVM Switch | Yes | Yes |
Connectivity (Video) | 1x HDMI 1.4, 1x DP 1.2 | 1x HDMI 1.4, 1x DP 1.2 |
USB Upstream | 1x USB 3.2 Gen 1 Type-B | 1x USB 3.2 Gen 1 Type-B |
USB Downstream | 1x USB 3.2 Gen 1 Type-A | 1x USB 3.2 Gen 1 Type-A |
Power Supply | External (90W) | External (90W) |
Power Consumption (Typ/Max) | 14W / 34W | 14W / 34W |
VESA Mount | Yes (100 x 100 mm) | Yes (100 x 100 mm) |
Ergonomics | Tilt: -5°/23.5°, Swivel: ±45°, Lift: 155mm, Pivot: -5°/90° | Same |
Dimensions (Unpacked w/ Stand) | 539.8 x 539.6 x 207.6 mm (H x W x D) | Same |
Weight (Head Only) | 3.7 kg | 4.0 kg |
Manuals and Documents
- ThinkCentre TIO 24 Gen 5 Non-Touch Datasheet – Full specifications and features overview (Non-Touch)
- ThinkCentre TIO 24 Gen 5 Touch Datasheet – Full specifications and features overview (Touch)
- ThinkCentre TIO 24 Gen 5 User Guide – Comprehensive user manual for setup and operation
