Next-Generation Wireless Connectivity with Ruckus
Ruckus Wireless Access Points (APs) offer industry-leading performance, coverage, and security, making them the preferred choice for enterprises, hospitality, education, and smart cities. With advanced technologies like BeamFlex+ adaptive antennas, Wi-Fi 6/6E/7 support, and Cloud AI-driven management, Ruckus APs deliver faster speeds, greater capacity, and superior reliability in high-density environments.
Whether you’re upgrading an existing network or deploying a new one, Ruckus APs ensure seamless connectivity with ultra-low latency, high-efficiency performance, and robust security.
Why Choose Ruckus Wireless?
- Best-in-Class Performance – High-speed connectivity powered by BeamFlex+ technology, offering up to 12.22 Gbps with Wi-Fi 7.
- Scalable Solutions – From entry-level indoor APs to rugged outdoor solutions, Ruckus fits every environment.
- AI-Driven Network Optimization – SmartZone, RUCKUS One, and Unleashed management for intelligent control.
- Secure and IoT-Ready – Built-in support for BLE, Zigbee, and WPA3 for secure enterprise and IoT deployments.
Ruckus Unleashed: Cloud-Managed Wi-Fi for Small Businesses
Looking for a simple, cost-effective Wi-Fi solution for your small business? Ruckus Unleashed offers enterprise-grade performance, cloud management, and easy setup without the complexity.
Explore Ruckus Wireless Access Points
Ruckus Wireless AP Product Lineup
| Model | Wi-Fi Standard | Max Data Rate | Key Features |
|---|---|---|---|
| R850 | Wi-Fi 6 | 5.9 Gbps | Dual-band, 8x8:8, high-density, 5GbE, IoT Onboard |
| R770 | Wi-Fi 7 | 12.22 Gbps | Tri-band, 8 spatial streams, 10GbE, IoT Onboard |
| R760 | Wi-Fi 6E | 8.35 Gbps | Tri-band, 12 spatial streams, 10GbE, IoT Onboard |
| R750 | Wi-Fi 6 | 3.5 Gbps | Dual-band, 4x4:4, medium density, 2.5GbE, IoT Onboard |
| R650 | Wi-Fi 6 | 3.5 Gbps | Dual-band, 4x4:4, IoT Onboard |
| R560 | Wi-Fi 6E | 4.7 Gbps | Tri-band, 2x2:2, IoT Onboard |
| R550 | Wi-Fi 6 | 2.4 Gbps | Dual-band, 2x2:2, IoT Onboard |
| R350 | Wi-Fi 6 | 1.8 Gbps | Dual-band, 2x2:2, IoT Ready, compact |
| Model | Wi-Fi Standard | Max Data Rate | Key Features |
|---|---|---|---|

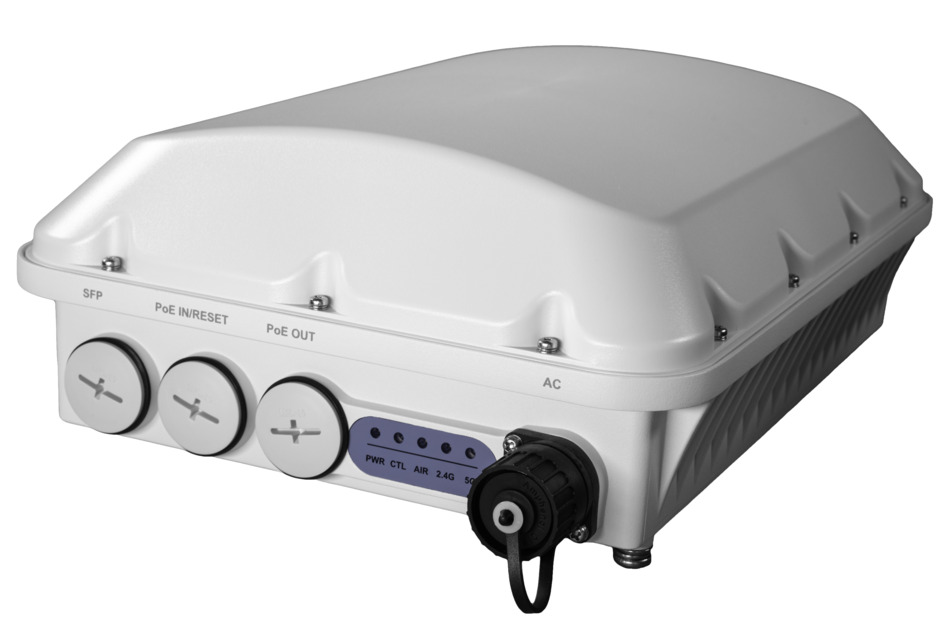

| T750 | Wi-Fi 6 | 3.5 Gbps | Ruggedized, IP67-rated, high-density, IoT Onboard |
| T350 | Wi-Fi 6 | 1.8 Gbps | Compact outdoor AP, IP67-rated, IoT Onboard |
Choosing the Right Ruckus AP for Your Network
Not sure which access point fits your needs? Contact Synapses Technologies for expert recommendations and custom network solutions.
Optimize your Wi-Fi network with Ruckus. Get in touch with Synapses Technologies today!

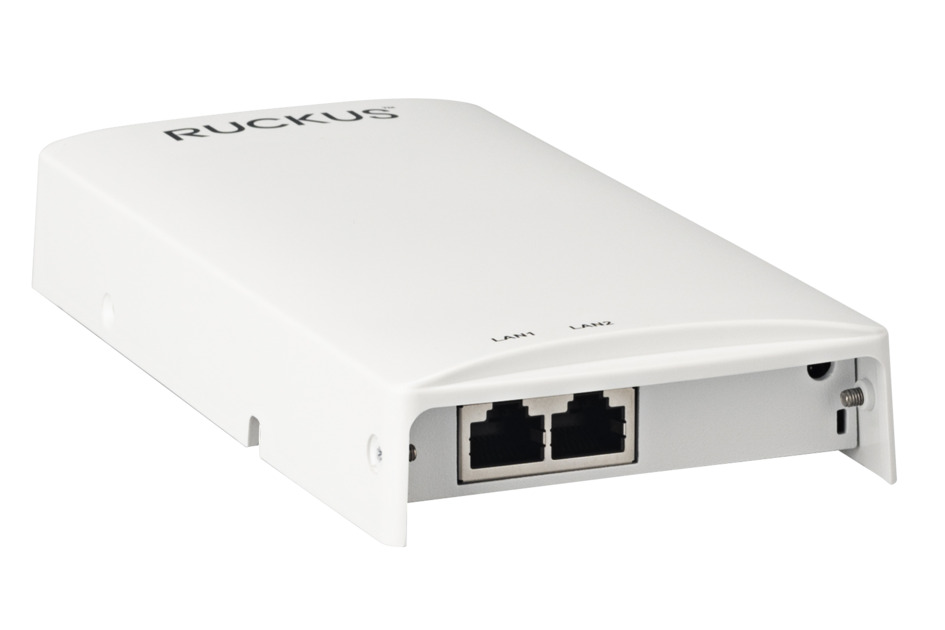

Ruckus H350 Wi-Fi 6 Dual-Band Wall-Mounted Access Point
Introduction
The Ruckus H350 is an entry-level Wi-Fi 6 (802.11ax) wall-mounted access point designed to meet the in-room connectivity requirements of hospitality and residential environments, such as hotel guest rooms, student residences, and multi-dwelling units. Combining dual-band Wi-Fi 6 coverage with an integrated IoT gateway and a built-in 2-port Gigabit Ethernet switch, the H350 delivers wired and wireless connectivity for multiple devices without additional cabling. It supports advanced technologies like OFDMA and MU-MIMO, ensuring efficient spectrum use and reduced latency for high-demand applications. The sleek, low-profile design allows for discrete installation over a standard electrical outlet.

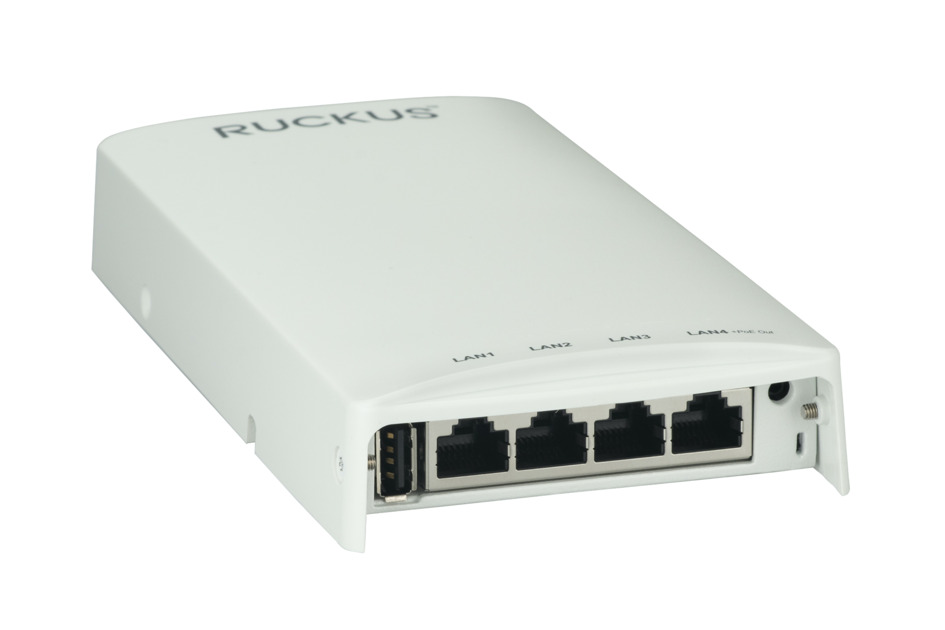

Ruckus H550 Wi-Fi 6 Dual-Band Wall-Mounted Access Point
Introduction
The Ruckus H550 is a high-performance Wi-Fi 6 (802.11ax) wall-mounted access point designed to meet the demanding in-room connectivity requirements of hospitality and residential environments, such as hotel guest rooms, student residence halls, and apartments. Combining dual-band Wi-Fi 6 coverage with an integrated IoT gateway and a built-in 4-port Gigabit Ethernet switch, the H550 delivers wired and wireless connectivity for multiple devices without additional cabling. It supports advanced technologies like OFDMA and MU-MIMO, ensuring efficient spectrum use and reduced latency for high-demand applications. The sleek, low-profile design allows for discrete installation over a standard electrical outlet.

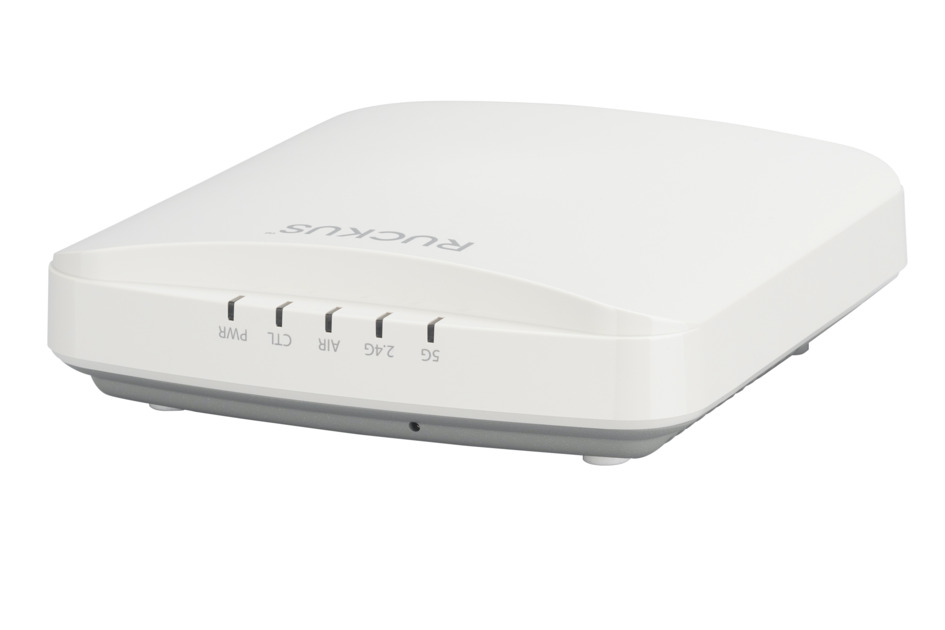

Ruckus R350 Wi-Fi 6 Dual-Band Indoor Access Point
Introduction
The Ruckus R350 is an entry-level Wi-Fi 6 (802.11ax) access point designed to deliver reliable and affordable connectivity in low-density indoor environments such as small and medium-sized businesses, retail locations, restaurants, and multi-tenant small offices. Supporting 2x2:2 streams in both 2.4 GHz and 5 GHz bands, the R350 achieves a combined data rate of up to 1.8 Gbps and efficiently manages up to 256 client connections. With OFDMA and MU-MIMO capabilities, it provides enhanced efficiency and reduced latency for high-demand applications. The R350 also features a USB port supporting an optional pluggable BLE and Zigbee IoT module, allowing for seamless integration of various wireless technologies.
Ruckus R550 Wi-Fi 6 Dual-Band Indoor Access Point
Introduction
The Ruckus R550 is a mid-range Wi-Fi 6 (802.11ax) access point designed to deliver increased capacity, improved coverage, and affordability in dense environments. Supporting four spatial streams (2x2:2 in both 2.4 GHz and 5 GHz bands), the R550 achieves a combined data rate of up to 1.774 Gbps and efficiently manages up to 512 client connections. With OFDMA and MU-MIMO capabilities, it provides enhanced efficiency and reduced latency for high-demand applications. The R550 also features built-in IoT radios with onboard Bluetooth® Low Energy (BLE) and Zigbee capabilities, allowing for seamless integration of various wireless technologies.

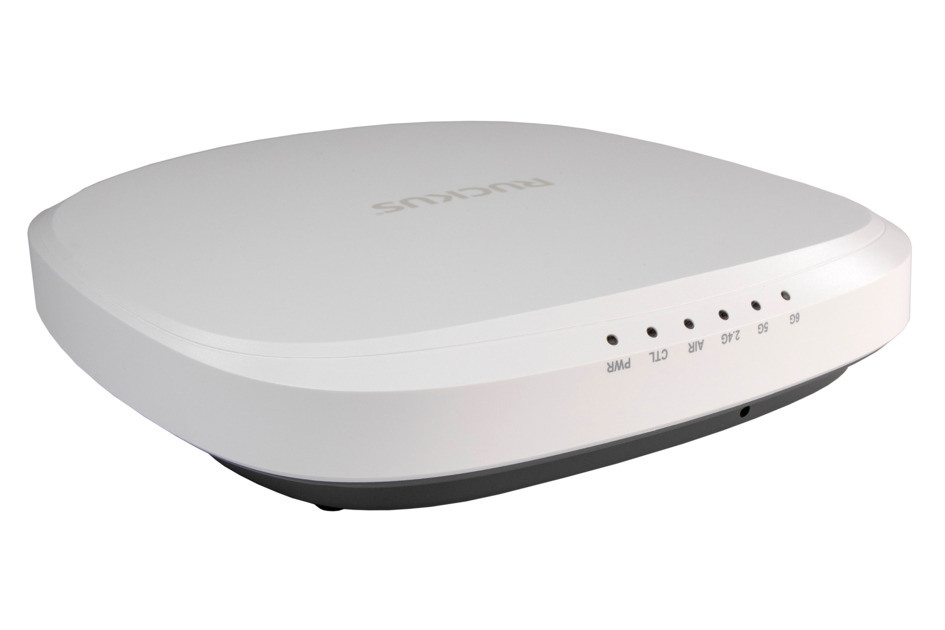

Ruckus R560 Wi-Fi 6E Tri-Band Concurrent Wireless Access Point
Introduction
The Ruckus R560 is a mid-range Wi-Fi 6E (802.11ax) access point designed to meet the demands of high-density indoor environments such as transit hubs, auditoriums, and conference centers. With its tri-band concurrent design, the R560 supports six spatial streams—2x2:2 in 2.4 GHz, 5 GHz, and 6 GHz bands—achieving a combined data rate of up to 4.7 Gbps. This ensures reliable, high-speed wireless connectivity for a large number of devices, supporting applications like 4K video streaming and latency-sensitive voice and data transmissions.

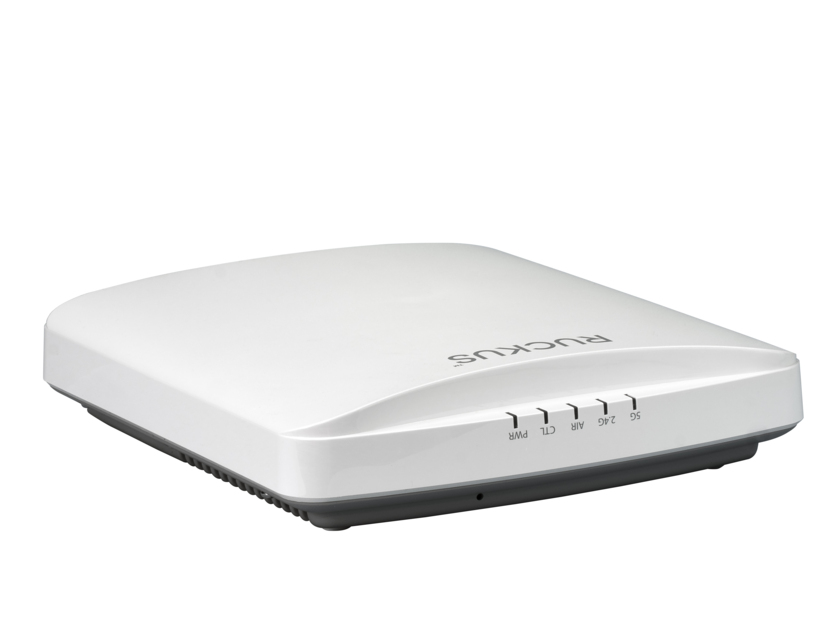

Ruckus R650 Wi-Fi 6 Dual-Band Concurrent Wireless Access Point
Introduction
The Ruckus R650 is a mid-range Wi-Fi 6 (802.11ax) access point designed to deliver increased capacity, improved coverage, and superior performance in medium-density indoor environments such as office buildings, classrooms, and retail venues. Supporting six spatial streams (4x4:4 in 5 GHz and 2x2:2 in 2.4 GHz bands), the R650 achieves a combined data rate of up to 2.974 Gbps and efficiently manages up to 512 client connections. With OFDMA and MU-MIMO capabilities, it provides enhanced efficiency and reduced latency for high-demand applications. The R650 also features built-in IoT radios with onboard Bluetooth® Low Energy (BLE) and Zigbee capabilities, allowing for seamless integration of various wireless technologies.

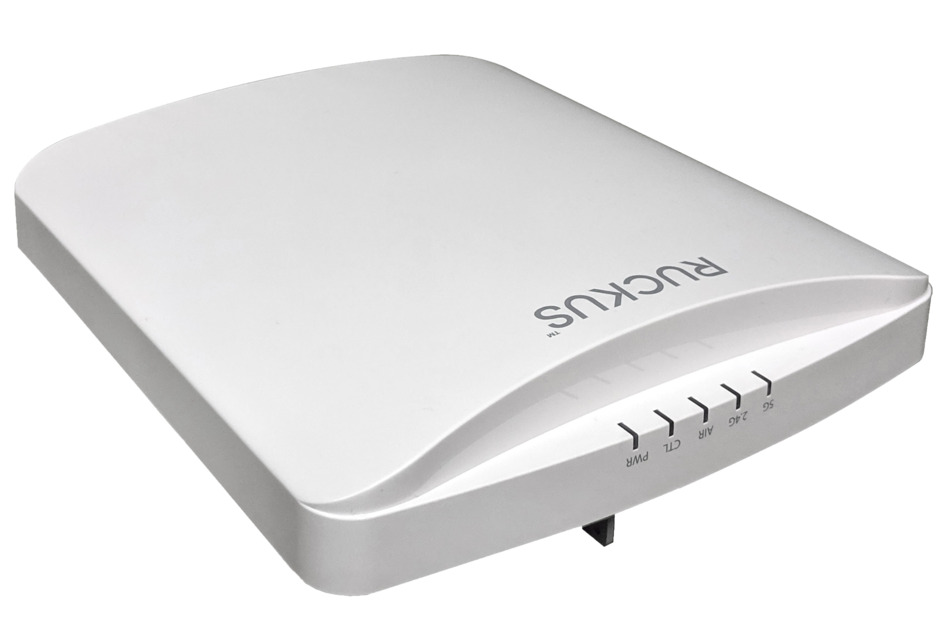

Ruckus R750 Wi-Fi 6 Dual-Band Concurrent Wireless Access Point
Introduction
The Ruckus R750 is a high-end Wi-Fi 6 access point designed to deliver reliable, secure, and high-performance connectivity in high-traffic indoor spaces such as transit hubs, auditoriums, and conference centers. Supporting 8 spatial streams (4x4:4 in both 5 GHz and 2.4 GHz bands), the R750 achieves a combined data rate of up to 3.5 Gbps. With OFDMA and MU-MIMO capabilities, it efficiently manages up to 1,024 client connections, providing increased capacity, improved coverage, and superior performance in ultra-high-density environments.

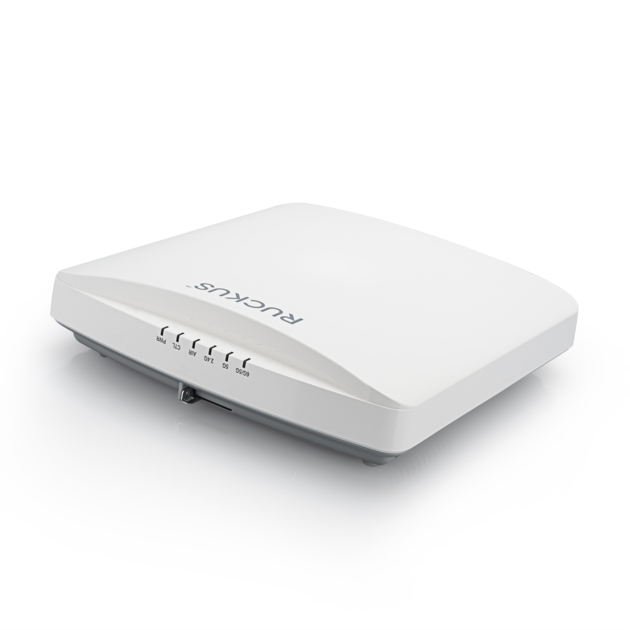

Ruckus R760 Wi-Fi 6E Tri-Band Concurrent Wireless Access Point
Introduction
The Ruckus R760 is a top-tier Wi-Fi 6E access point engineered to meet the demands of ultra-high-density indoor environments such as convention centers, lecture halls, and transit stations. Featuring a tri-band concurrent design, the R760 supports 12 spatial streams—4x4:4 in 2.4 GHz, 5 GHz, and 6 GHz bands—achieving a combined data rate of 8.35 Gbps. This ensures high-speed, low-latency wireless connectivity with enhanced capacity and efficiency, supporting applications like 4K/8K video streaming, virtual reality, and large-scale collaboration platforms.

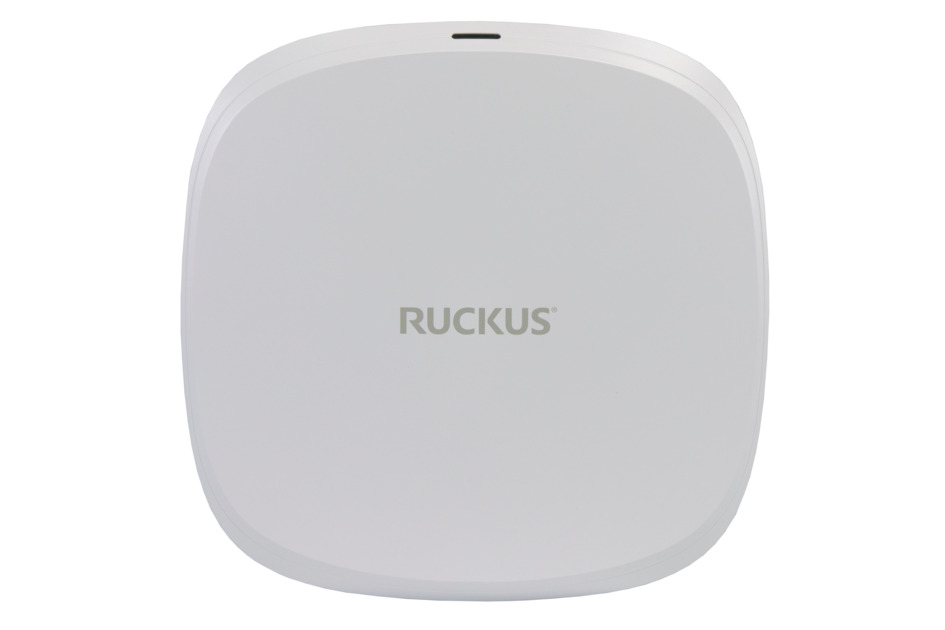

Ruckus R770 Wi-Fi 7 Tri-Band Concurrent Wireless Access Point
Introduction
The Ruckus R770 is a state-of-the-art Wi-Fi 7 access point designed to meet the demands of high-traffic indoor environments such as transit hubs, auditoriums, and conference centers. With its tri-band concurrent design, the R770 delivers eight spatial streams—2x2:2 in 2.4 GHz, 4x4:4 in 5 GHz, and 2x2:2 in 6 GHz—achieving a combined data rate of 12.22 Gbps. This ensures ultra-fast, low-latency wireless connections with greater capacity and efficiency, supporting applications like 8K video streaming, XR video conferencing, and massive social gaming.
Ruckus R850 Wi-Fi 6 Dual-Band Concurrent Wireless Access Point
Introduction
The Ruckus R850 is a high-capacity Wi-Fi 6 access point designed to meet the demands of ultra-high-density indoor environments such as large enterprises, public venues, and convention centers. Featuring a dual-band concurrent design, the R850 supports 12 spatial streams—8x8:8 in 5 GHz and 4x4:4 in 2.4 GHz bands—achieving a combined data rate of 5.9 Gbps. This ensures high-speed, low-latency wireless connectivity with enhanced capacity and efficiency, supporting applications like 4K/8K video streaming, virtual reality, and large-scale collaboration platforms.
