Ruckus H350 Wi-Fi 6 Dual-Band Wall-Mounted Access Point
By Brian Long
Introduction
The Ruckus H350 is an entry-level Wi-Fi 6 (802.11ax) wall-mounted access point designed to meet the in-room connectivity requirements of hospitality and residential environments, such as hotel guest rooms, student residences, and multi-dwelling units. Combining dual-band Wi-Fi 6 coverage with an integrated IoT gateway and a built-in 2-port Gigabit Ethernet switch, the H350 delivers wired and wireless connectivity for multiple devices without additional cabling. It supports advanced technologies like OFDMA and MU-MIMO, ensuring efficient spectrum use and reduced latency for high-demand applications. The sleek, low-profile design allows for discrete installation over a standard electrical outlet.

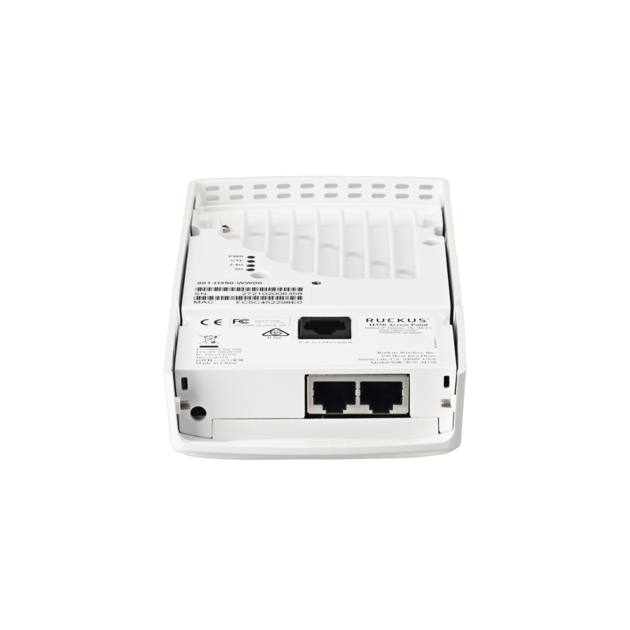

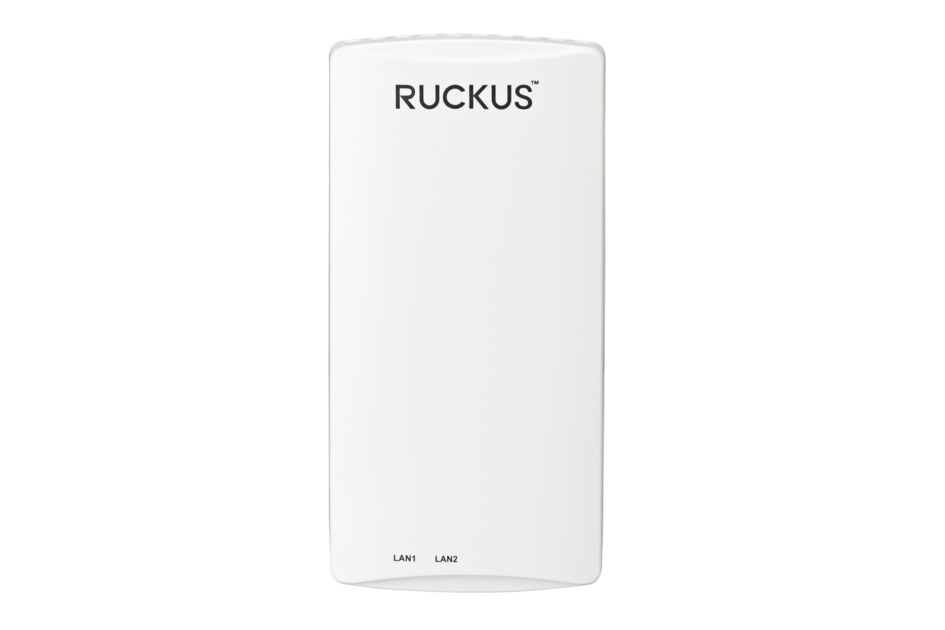

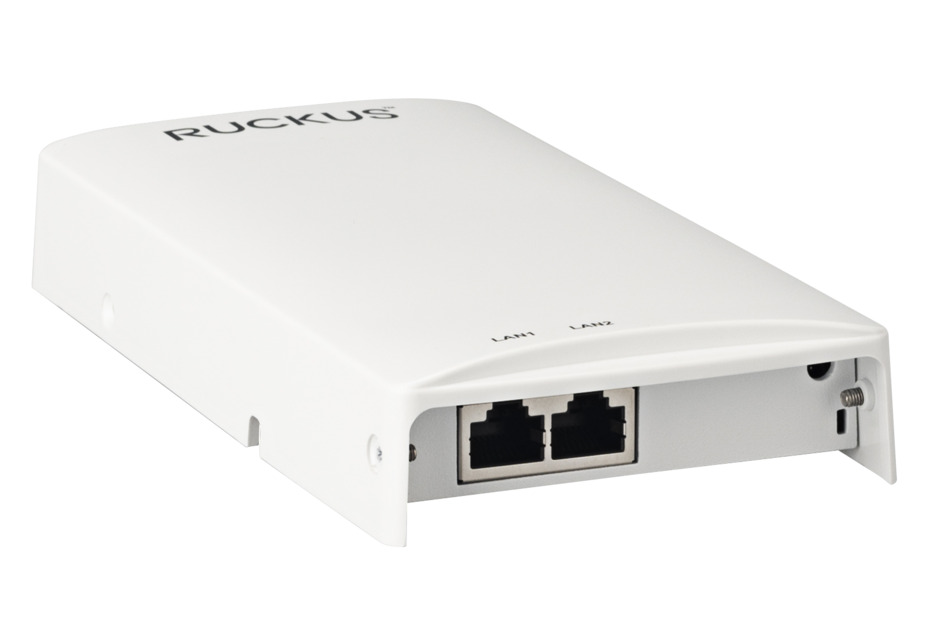

Product Gallery
- All-in-One Connectivity: Delivers in-room Wi-Fi 6 speeds, integrated IoT support (BLE and Zigbee), and a built-in 2-port Gigabit Ethernet switch for consolidated IP services.
- Stunning Wi-Fi Performance: Extends coverage with patented BeamFlex+ adaptive antenna technology, mitigating interference by utilizing multi-directional antenna patterns.
- IoT Onboard: Eliminates siloed networks by unifying Wi-Fi and IoT technologies into a single network.
- Mesh Networking: Dynamically creates self-forming, self-healing network mesh with Ruckus SmartMesh technology, reducing expensive cabling and complex configurations.
- Affordable Enterprise Performance: Provides consistent, reliable Wi-Fi 6 wireless networking without breaking the bank.
- Multiple Unified Management Options: Manageable from the cloud, with on-premises physical/virtual appliances, or without a controller.
| Specification | Details |
|---|---|
| Wi-Fi Standards | Wi-Fi 6 (802.11ax); backward compatible with 802.11a/b/g/n/ac |
| Frequency Bands | 2.4 GHz, 5 GHz |
| Spatial Streams | 2x2:2 (2.4 GHz), 2x2:2 (5 GHz) |
| Maximum Data Rate | Up to 1.8 Gbps |
| Ethernet Ports | 3x 1 Gbps Ethernet ports |
| Antenna Technology | BeamFlex+ Adaptive Antenna Technology |
| IoT Support | Embedded BLE and Zigbee |
| Security | WPA3, Enhanced protection against man-in-the-middle attacks |
| Power Options | 802.3af/at PoE |
| Dimensions | 3.52" x 7.03" x 1.15" |
| Weight | 0.613 lbs |
- Data Sheet - Comprehensive technical specifications and features.
- Quick Setup Guide - Step-by-step instructions for initial setup and configuration.
- User Manual - Detailed information on device operation and management.
Need help with design and installation? Contact Synapses Technologies for expert solutions tailored to your networking needs.
