Ruckus H550 Wi-Fi 6 Dual-Band Wall-Mounted Access Point
By Brian Long
Introduction
The Ruckus H550 is a high-performance Wi-Fi 6 (802.11ax) wall-mounted access point designed to meet the demanding in-room connectivity requirements of hospitality and residential environments, such as hotel guest rooms, student residence halls, and apartments. Combining dual-band Wi-Fi 6 coverage with an integrated IoT gateway and a built-in 4-port Gigabit Ethernet switch, the H550 delivers wired and wireless connectivity for multiple devices without additional cabling. It supports advanced technologies like OFDMA and MU-MIMO, ensuring efficient spectrum use and reduced latency for high-demand applications. The sleek, low-profile design allows for discrete installation over a standard electrical outlet.

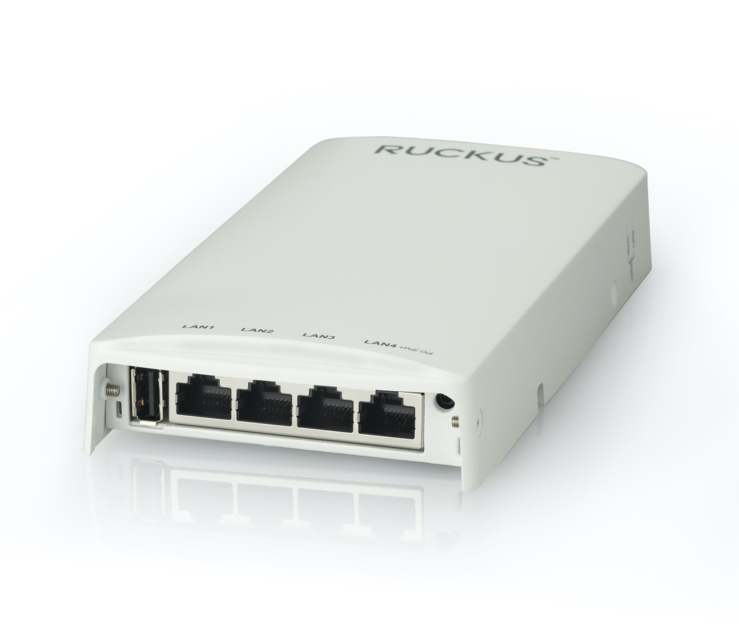

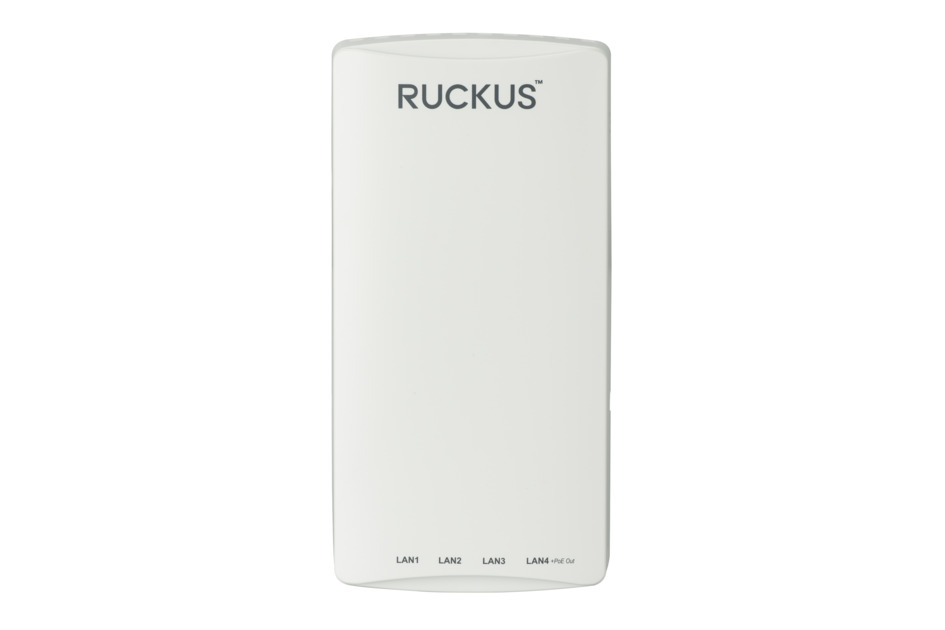

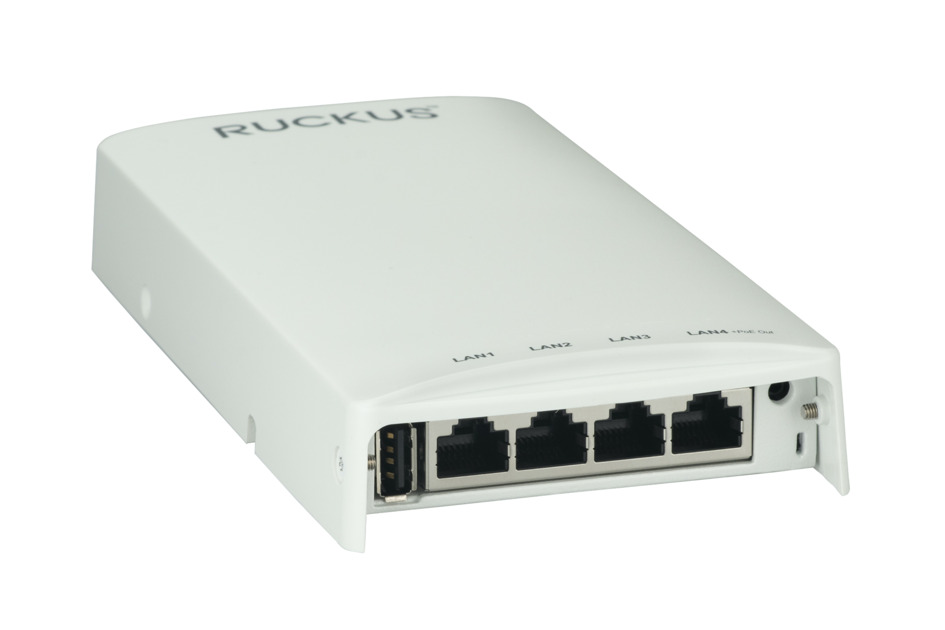

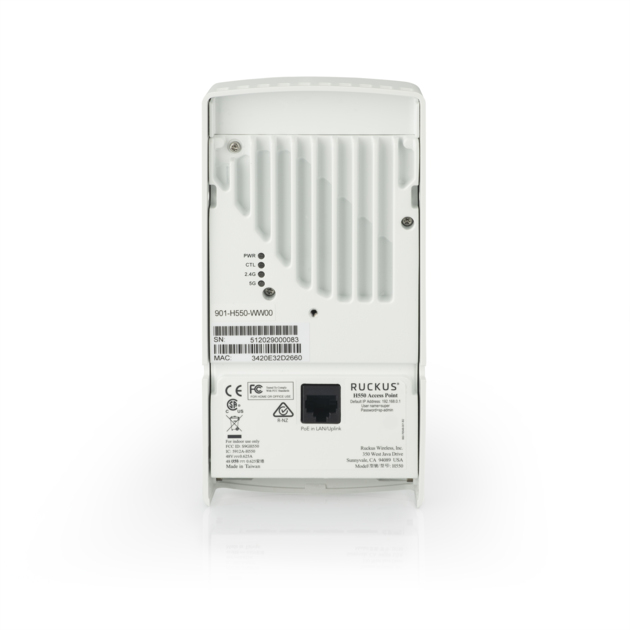

Product Gallery
- All-in-One Connectivity: Delivers in-room Wi-Fi 6 speeds, integrated IoT support (BLE and Zigbee), and a built-in 4-port Gigabit Ethernet switch for consolidated IP services.
- Stunning Wi-Fi Performance: Extends coverage with patented BeamFlex®+ adaptive antenna technology, mitigating interference by utilizing multi-directional antenna patterns.
- Support for Multiple Services: Multiple SSIDs and switch ports help support services such as VoIP, IPTV, high-speed Internet access, and in-room device connectivity. Embedded IoT supports connected entry, staff alert, and building automation.
- Automated Optimal Throughput: ChannelFly® dynamic channel technology uses machine learning to automatically find the least congested channels, ensuring the highest throughput the band can support.
- Serve More Devices: Connect more devices simultaneously with two MU-MIMO spatial streams and concurrent dual-band 2.4/5GHz radios.
- Multiple Management Options: Manage the H550 from the cloud, with on-premises physical/virtual appliances, or without a controller.
| Specification | Details |
|---|---|
| Wi-Fi Standards | Wi-Fi 6 (802.11ax); backward compatible with 802.11a/b/g/n/ac |
| Frequency Bands | 2.4 GHz, 5 GHz |
| Spatial Streams | 2x2:2 (2.4 GHz), 2x2:2 (5 GHz) |
| Maximum Data Rate | Up to 1.8 Gbps |
| Ethernet Ports | 5x 1 Gbps Ethernet ports (1 PoE input, 4 access ports) |
| Antenna Technology | BeamFlex+ Adaptive Antenna Technology |
| IoT Support | Embedded BLE and Zigbee; optional support for other protocols via USB |
| Security | WPA3, Enhanced protection against man-in-the-middle attacks |
| Power Options | 802.3af/at/bt PoE |
| Dimensions | 3.52" x 7.03" x 1.15" |
| Weight | 0.613 lbs |
- Data Sheet - Comprehensive technical specifications and features.
- Quick Setup Guide - Step-by-step instructions for initial setup and configuration.
- User Manual - Detailed information on device operation and management.
Need help with design and installation? Contact Synapses Technologies for expert solutions tailored to your networking needs.
