Ruckus R560 Wi-Fi 6E Tri-Band Concurrent Wireless Access Point
By Brian Long
Introduction
The Ruckus R560 is a mid-range Wi-Fi 6E (802.11ax) access point designed to meet the demands of high-density indoor environments such as transit hubs, auditoriums, and conference centers. With its tri-band concurrent design, the R560 supports six spatial streams—2x2:2 in 2.4 GHz, 5 GHz, and 6 GHz bands—achieving a combined data rate of up to 4.7 Gbps. This ensures reliable, high-speed wireless connectivity for a large number of devices, supporting applications like 4K video streaming and latency-sensitive voice and data transmissions.

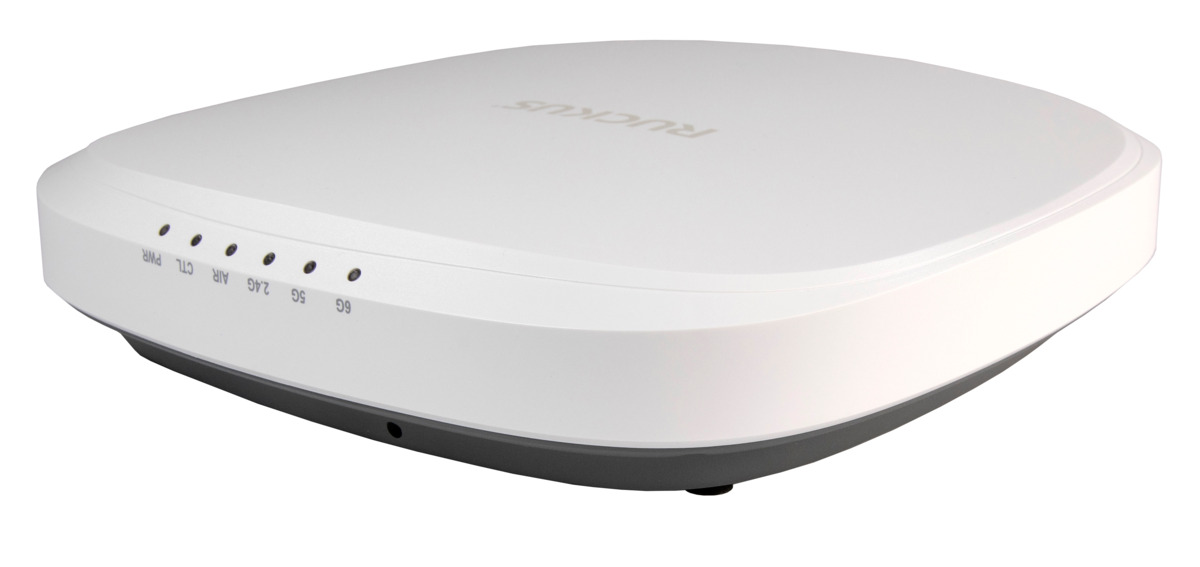

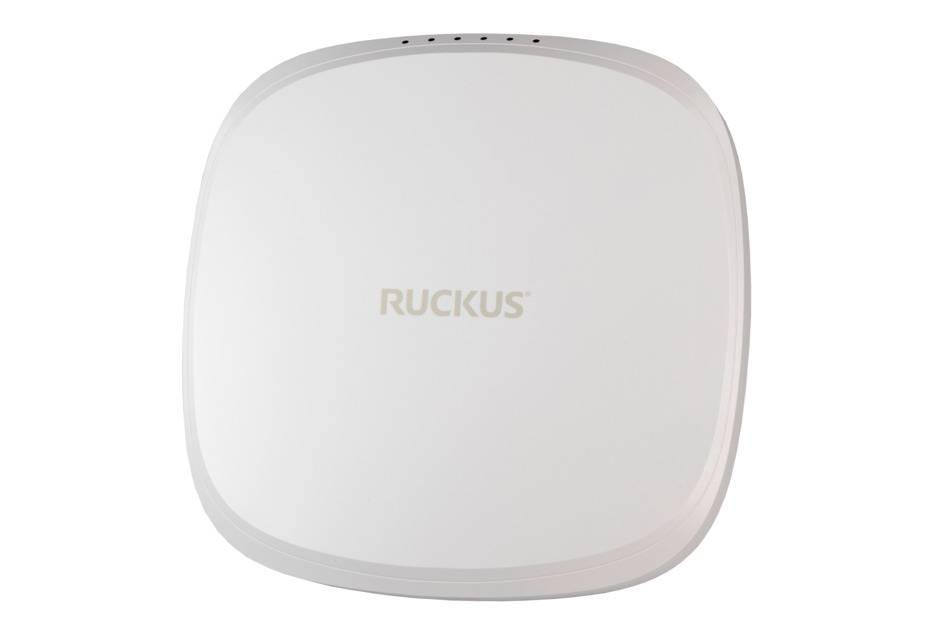

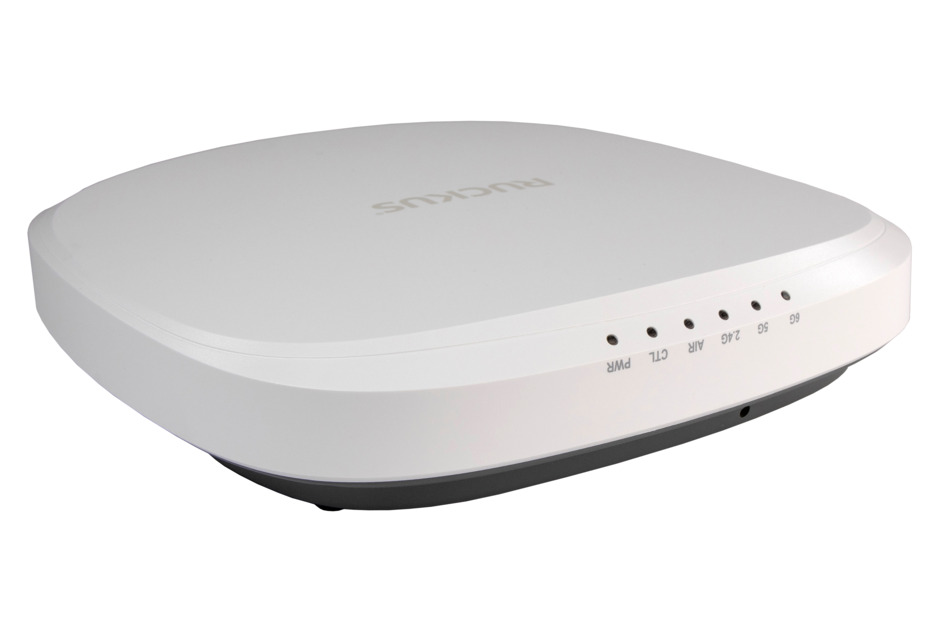

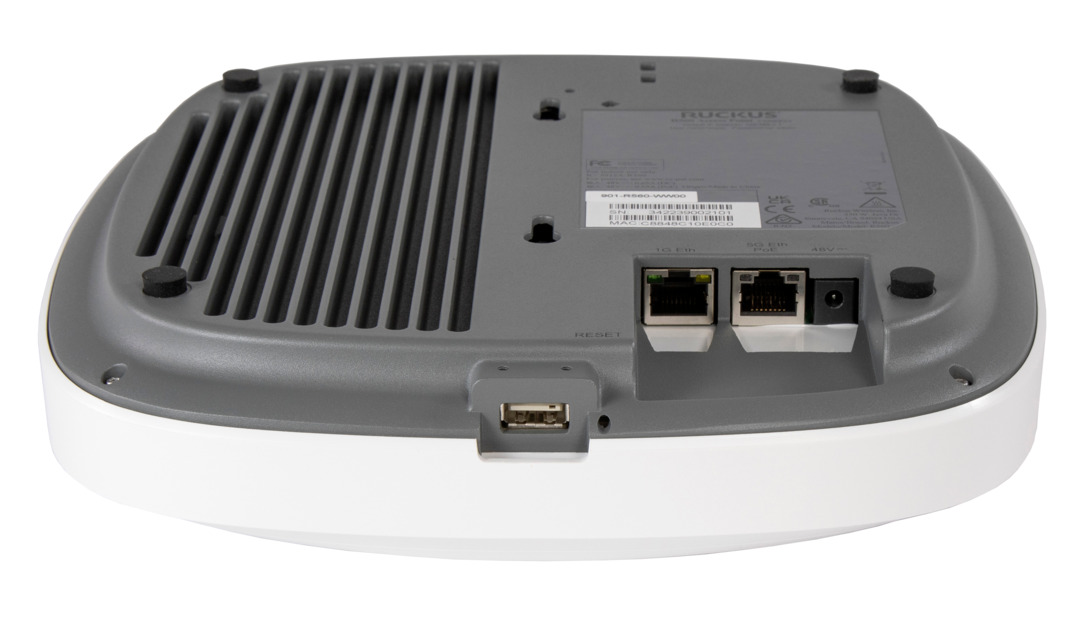

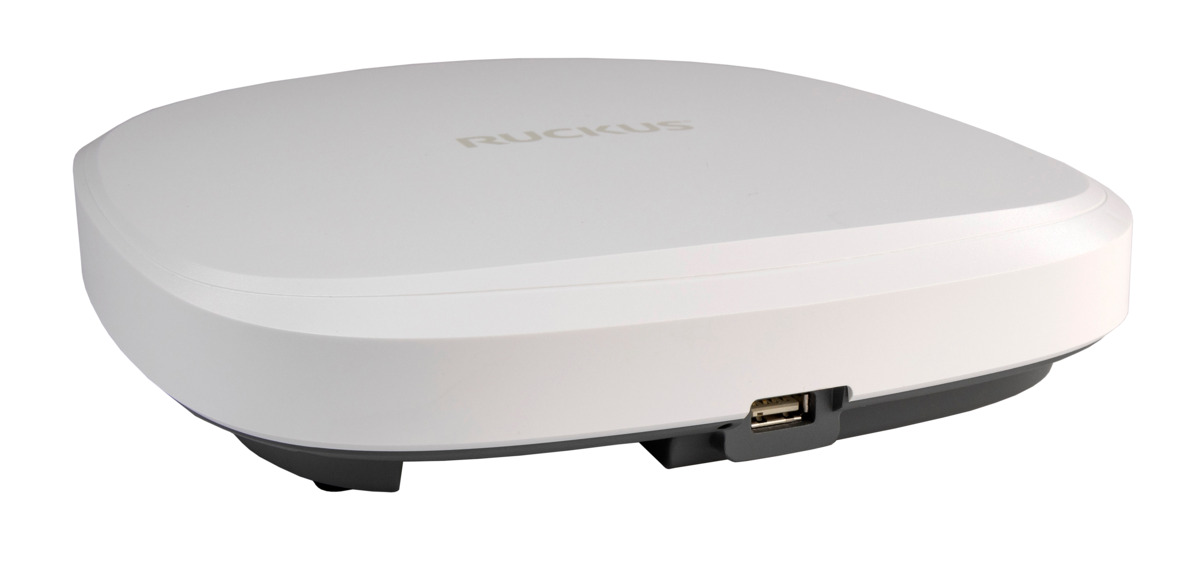

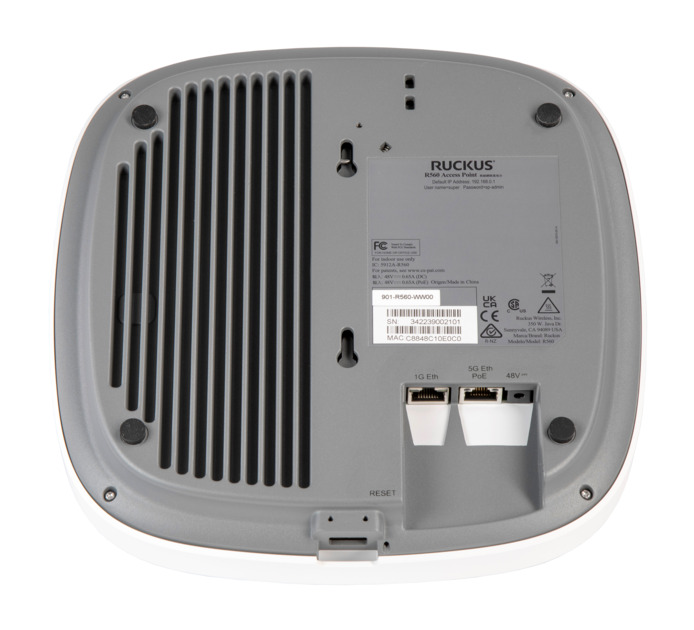

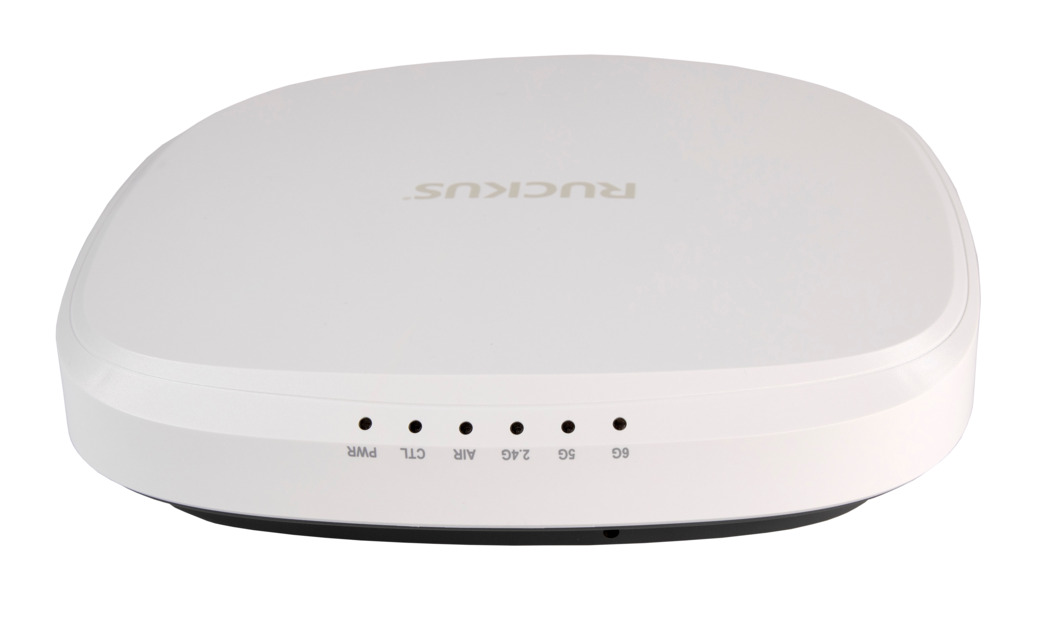

Product Gallery
Features
- High Performance: Delivers a combined data rate of up to 4.7 Gbps across tri-band concurrent radios, efficiently managing up to 1,536 client connections.
- Advanced Wi-Fi 6E Technologies: Supports OFDMA, TWT, and MU-MIMO for efficient spectrum use and reduced latency.
- Embedded IoT Capabilities: Built-in support for BLE and Zigbee, with the option to integrate future wireless technologies via the USB port.
- BeamFlex+ Adaptive Antenna Technology: Enhances signal coverage, throughput, and network capacity by dynamically adjusting antenna patterns, offering over 4,000 unique combinations.
- 5 Gbps Ethernet Port: Ensures the backhaul is not a bottleneck, allowing full utilization of available Wi-Fi capacity.
- Enhanced Security: Supports WPA3 for advanced security protocols, providing enhanced protection against man-in-the-middle attacks.
Specifications
| Specification | Details |
|---|---|
| Wi-Fi Standards | Wi-Fi 6E (802.11ax); backward compatible with 802.11a/b/g/n/ac |
| Frequency Bands | 2.4 GHz, 5 GHz, 6 GHz |
| Spatial Streams | 2x2:2 (2.4 GHz), 2x2:2 (5 GHz), 2x2:2 (6 GHz) |
| Maximum Data Rate | Up to 4.7 Gbps |
| Ethernet Ports | 1x 1/2.5/5 Gbps Ethernet port; 1x 1 Gbps Ethernet port |
| Antenna Technology | BeamFlex+ Adaptive Antenna Technology |
| IoT Support | Embedded BLE and Zigbee; optional support for other protocols via USB |
| Security | WPA3, Enhanced protection against man-in-the-middle attacks |
| Power Options | 802.3bt PoE |
| Dimensions | 8.8" x 7.6" x 1.9" |
| Weight | 1.88 lbs |
Manuals and Documents
- Data Sheet - Comprehensive technical specifications and features.
- Quick Setup Guide - Step-by-step instructions for initial setup and configuration.
- User Manual - Detailed information on device operation and management.
