Ruckus R650 Wi-Fi 6 Dual-Band Concurrent Wireless Access Point
By Brian Long
Introduction
The Ruckus R650 is a mid-range Wi-Fi 6 (802.11ax) access point designed to deliver increased capacity, improved coverage, and superior performance in medium-density indoor environments such as office buildings, classrooms, and retail venues. Supporting six spatial streams (4x4:4 in 5 GHz and 2x2:2 in 2.4 GHz bands), the R650 achieves a combined data rate of up to 2.974 Gbps and efficiently manages up to 512 client connections. With OFDMA and MU-MIMO capabilities, it provides enhanced efficiency and reduced latency for high-demand applications. The R650 also features built-in IoT radios with onboard Bluetooth® Low Energy (BLE) and Zigbee capabilities, allowing for seamless integration of various wireless technologies.
Product Gallery
- High Capacity: Supports up to 512 client connections, making it suitable for medium-density environments.
- Advanced Wi-Fi 6 Technologies: Utilizes OFDMA and MU-MIMO for efficient spectrum use and reduced latency.
- Embedded IoT Capabilities: Built-in support for BLE and Zigbee, with optional support for other protocols via a pluggable IoT module.
- BeamFlex+ Adaptive Antenna Technology: Enhances signal coverage, throughput, and network capacity by dynamically adjusting antenna patterns.
- 2.5 Gbps Ethernet Port: Ensures the backhaul will not be a bottleneck for full use of available Wi-Fi capacity.
- Enhanced Security: Supports WPA3 for advanced security protocols and protection against man-in-the-middle attacks.
| Specification | Details |
|---|---|
| Wi-Fi Standards | Wi-Fi 6 (802.11ax); backward compatible with 802.11a/b/g/n/ac |
| Frequency Bands | 2.4 GHz, 5 GHz |
| Spatial Streams | 4x4:4 (5 GHz), 2x2:2 (2.4 GHz) |
| Maximum Data Rate | Up to 2.974 Gbps |

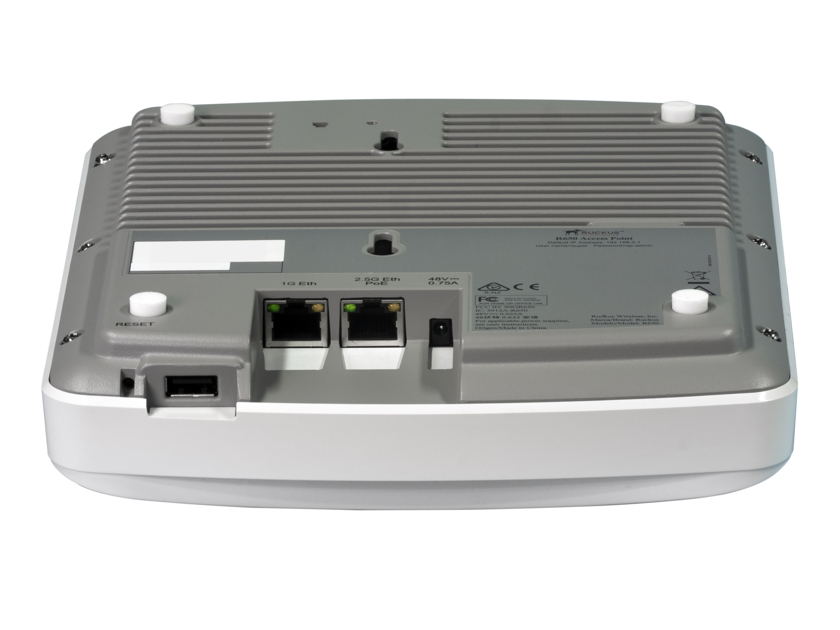

| Ethernet Ports | 1x 1/2.5 Gbps Ethernet port |
| Antenna Technology | BeamFlex+ Adaptive Antenna Technology |
| IoT Support | Embedded BLE and Zigbee; optional support for other protocols via pluggable IoT module :contentReference[oaicite:5]{index=5} |
| Security | WPA3, Enhanced protection against man-in-the-middle attacks |
| Power Options | 802.3at PoE |
| Dimensions | 8.3" x 8.3" x 2.0" |
| Weight | 1.9 lbs |
- Data Sheet - Comprehensive technical specifications and features.
- Quick Setup Guide - Step-by-step instructions for initial setup and configuration.
- User Manual - Detailed information on device operation and management.
