Ruckus R770 Wi-Fi 7 Tri-Band Concurrent Wireless Access Point
By Brian Long
Introduction
The Ruckus R770 is a state-of-the-art Wi-Fi 7 access point designed to meet the demands of high-traffic indoor environments such as transit hubs, auditoriums, and conference centers. With its tri-band concurrent design, the R770 delivers eight spatial streams—2x2:2 in 2.4 GHz, 4x4:4 in 5 GHz, and 2x2:2 in 6 GHz—achieving a combined data rate of 12.22 Gbps. This ensures ultra-fast, low-latency wireless connections with greater capacity and efficiency, supporting applications like 8K video streaming, XR video conferencing, and massive social gaming.

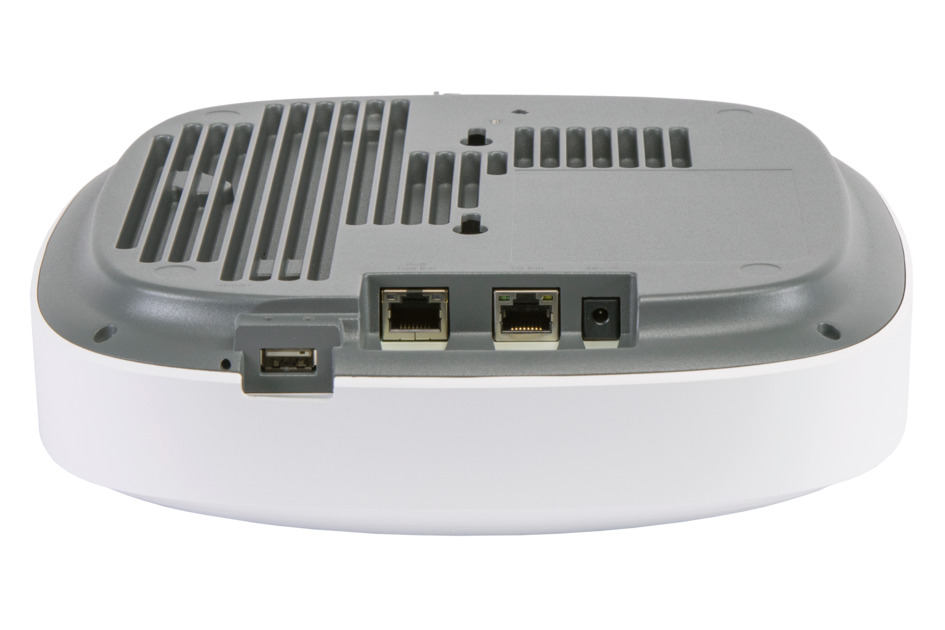

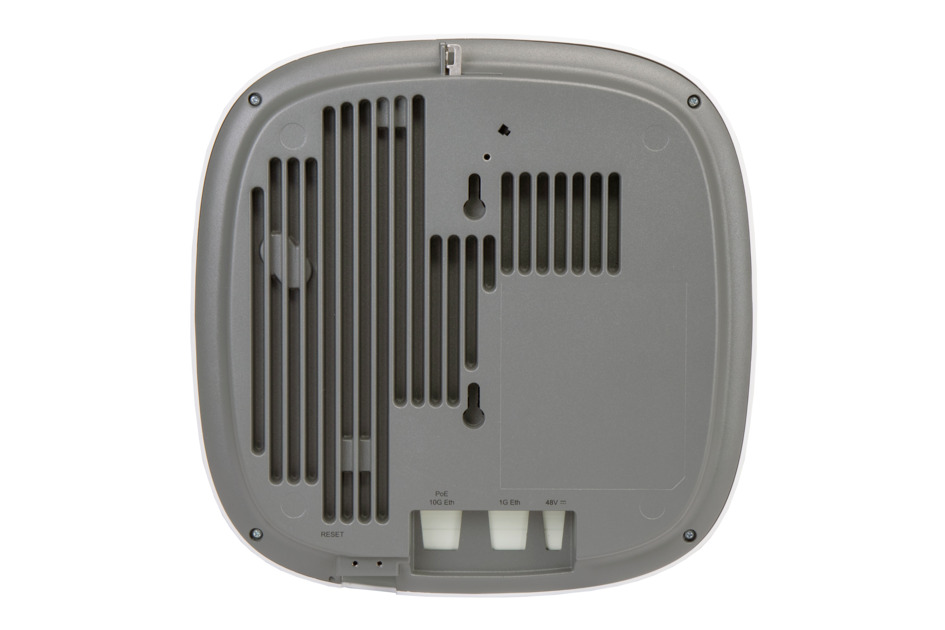

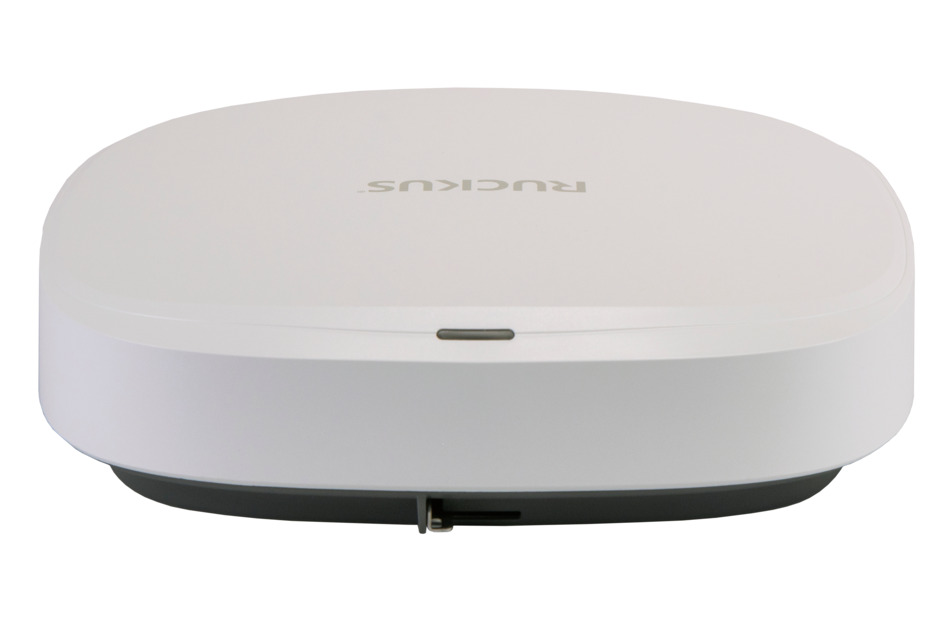

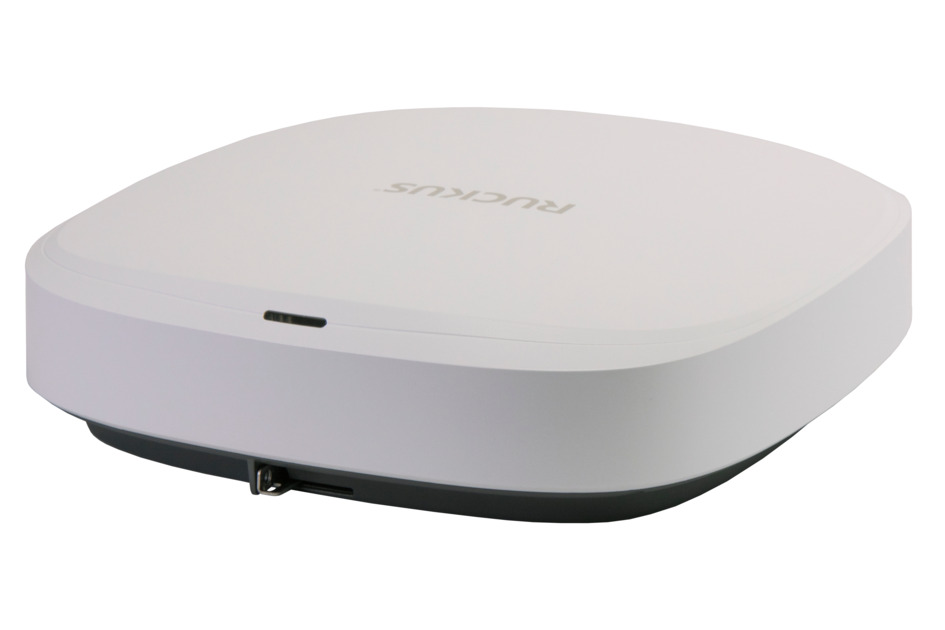

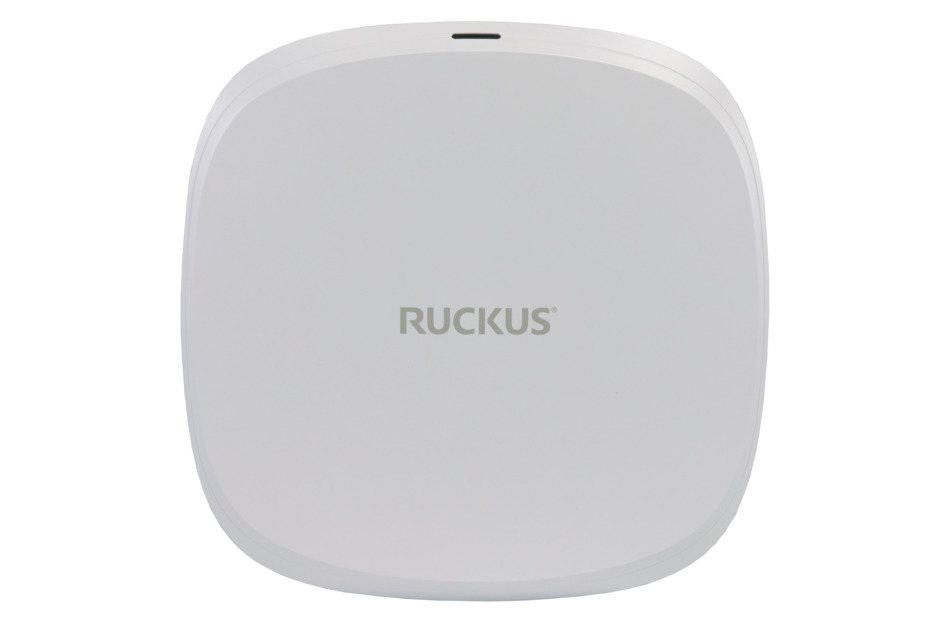

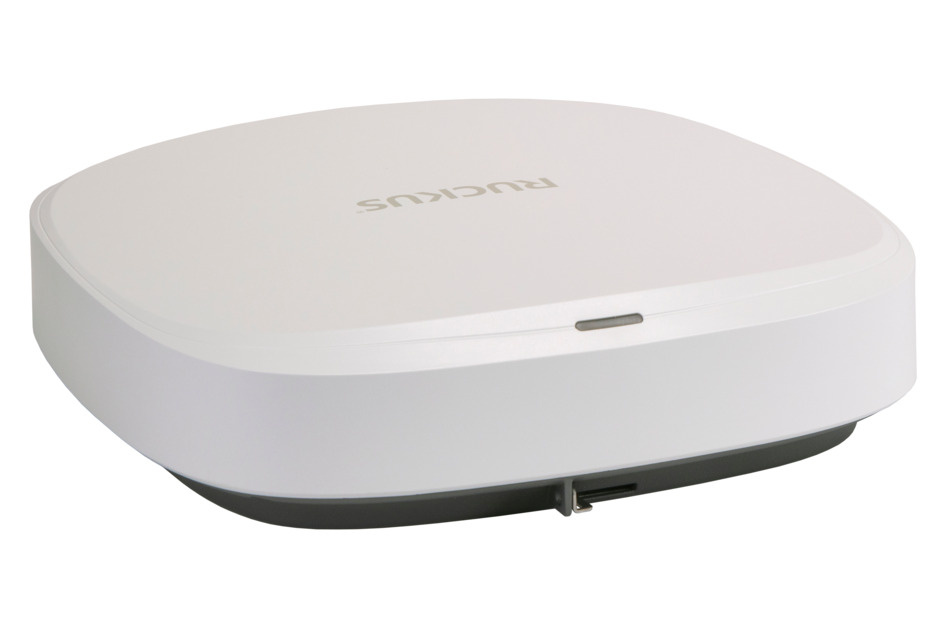

Product Gallery
Features
- High Performance: Delivers a combined data rate of 12.22 Gbps across tri-band concurrent radios.
- Advanced Wi-Fi 7 Technologies: Supports Multi-Link Operation (MLO), Preamble Puncturing, 4K QAM Modulation, and 320 MHz channels for enhanced performance.
- Embedded IoT Capabilities: Built-in BLE or Zigbee radio with support for Matter and Thread, allowing for seamless integration of IoT devices.
- BeamFlex+ Adaptive Antenna Technology: Enhances signal coverage, throughput, and network capacity by dynamically adjusting antenna patterns.
- 10 Gbps Ethernet Port: Eliminates wired backhaul bottlenecks, ensuring full utilization of available Wi-Fi capacity.
- Enhanced Security: Supports WPA3 for advanced security protocols and protection against man-in-the-middle attacks.
Specifications
| Specification | Details |
|---|---|
| Wi-Fi Standards | Wi-Fi 7 (802.11be); backward compatible with 802.11a/b/g/n/ac/ax |
| Frequency Bands | 2.4 GHz, 5 GHz, 6 GHz |
| Spatial Streams | 2x2:2 (2.4 GHz), 4x4:4 (5 GHz), 2x2:2 (6 GHz) |
| Maximum Data Rate | 12.22 Gbps |
| Ethernet Ports | 1x 1/2.5/5/10 Gbps Ethernet port |
| Antenna Technology | BeamFlex+ Adaptive Antenna Technology |
| IoT Support | Embedded BLE or Zigbee radio; support for Matter and Thread |
| Security | WPA3, Enhanced protection against man-in-the-middle attacks |
| Power Options | 802.3bt PoE |
| Dimensions | 10.2" x 9.5" x 3.6" |
| Weight | 2.5 lbs |
Manuals and Documents
- Data Sheet - Comprehensive technical specifications and features.
- Quick Setup Guide - Step-by-step instructions for initial setup and configuration.
- User Manual - Detailed information on device operation and management.
Need help with design and installation? Contact Synapses Technologies for expert solutions tailored to your networking needs.
