Ruckus T750 Wi-Fi 6 Dual-Band Outdoor Access Point
By Brian Long
Introduction
The Ruckus T750 is a high-performance Wi-Fi 6 (802.11ax) access point designed to meet the demands of high-density outdoor environments such as stadiums, arenas, airports, and other crowded public venues. With its dual-band concurrent design, the T750 supports eight spatial streams (4x4:4 in both 2.4 GHz and 5 GHz bands), achieving a combined data rate of up to 3.5 Gbps. This ensures reliable, high-speed wireless connectivity for a large number of devices, supporting applications like 4K video streaming and latency-sensitive voice and data transmissions.

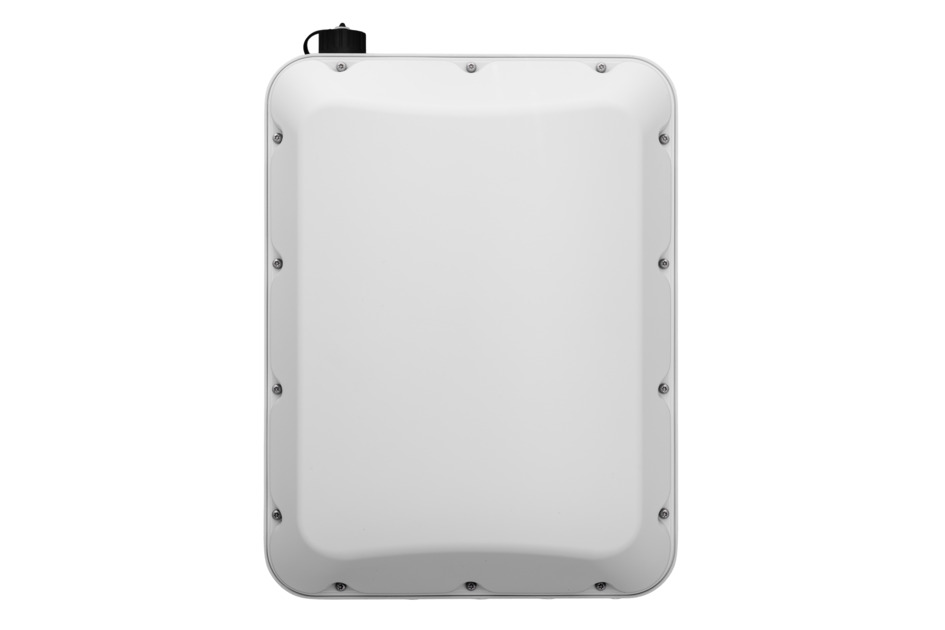

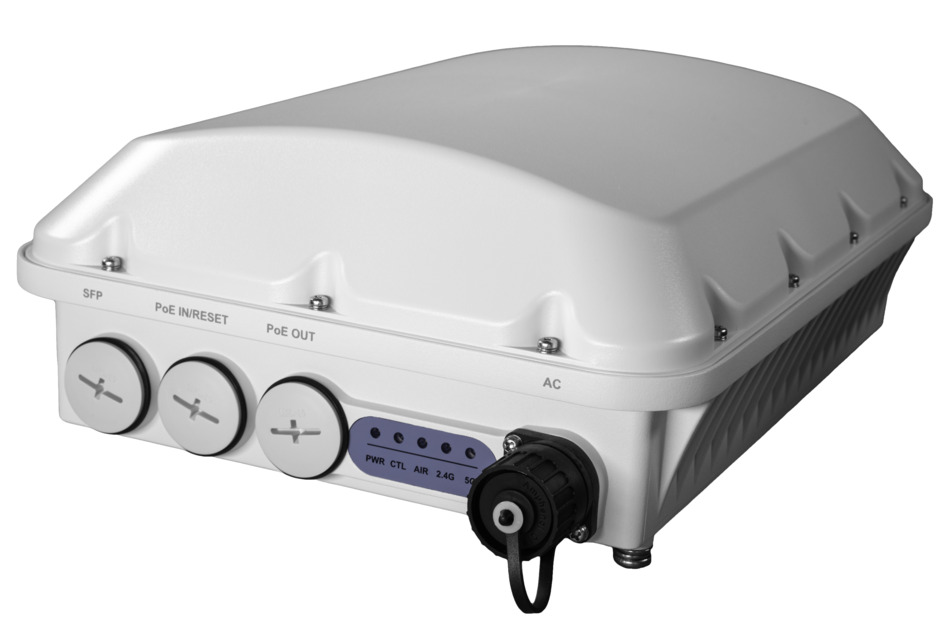

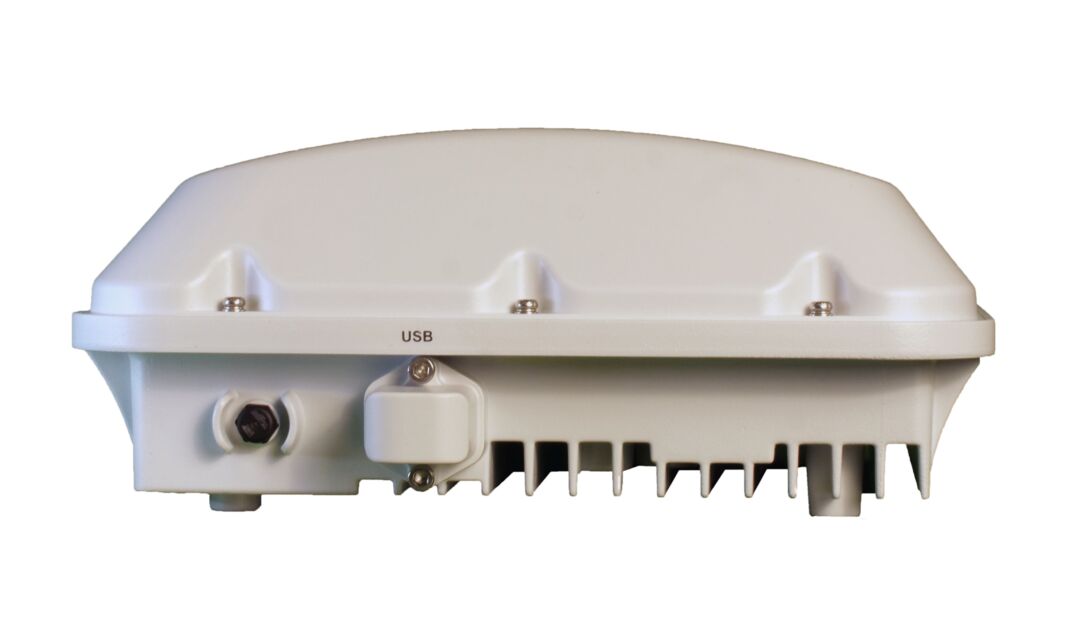

Product Gallery
Features
- High Performance: Delivers a combined data rate of up to 3.5 Gbps across dual-band concurrent radios.
- Advanced Wi-Fi 6 Technologies: Supports OFDMA and MU-MIMO for efficient spectrum use and reduced latency.
- Rugged Outdoor Design: IP-67 rated enclosure ensures durability in harsh outdoor conditions.
- Embedded IoT Capabilities: Built-in support for BLE and Zigbee, with optional support for other protocols via a pluggable IoT module.
- BeamFlex+ Adaptive Antenna Technology: Enhances signal coverage, throughput, and network capacity by dynamically adjusting antenna patterns.
- Multiple Management Options: Manageable through physical, virtual, and cloud management platforms, providing flexibility in network administration
Specifications
| Specification | Details |
|---|---|
| Wi-Fi Standards | Wi-Fi 6 (802.11ax); backward compatible with 802.11a/b/g/n/ac |
| Frequency Bands | 2.4 GHz, 5 GHz |
| Spatial Streams | 4x4:4 (2.4 GHz), 4x4:4 (5 GHz) |
| Maximum Data Rate | Up to 3.5 Gbps |
| Ethernet Ports | 1x 2.5 Gbps Ethernet port; 1x 1 Gbps Ethernet port |
| Antenna Technology | BeamFlex+ Adaptive Antenna Technology |
| IoT Support | Embedded BLE and Zigbee; optional support for other protocols via pluggable IoT module |
| Security | WPA3, Enhanced protection against man-in-the-middle attacks |
| Power Options | 802.3bt PoE |
| Dimensions | 12.4" x 9.1" x 5.5" |
| Weight | 9.7 lbs |
Manuals and Documents
- Data Sheet - Comprehensive technical specifications and features.
- Quick Setup Guide - Step-by-step instructions for initial setup and configuration.
- User Manual - Detailed information on device operation and management.
Need help with design and installation? Contact Synapses Technologies for expert solutions tailored to your networking needs.
