UniFi LTE Backup Pro
By Brian Long
The UniFi LTE Backup Pro is designed to maintain your network’s internet connectivity by providing an automatic failover solution in the event of primary WAN failure. By integrating with UniFi gateways, it ensures that your network remains operational, minimizing downtime and productivity loss.

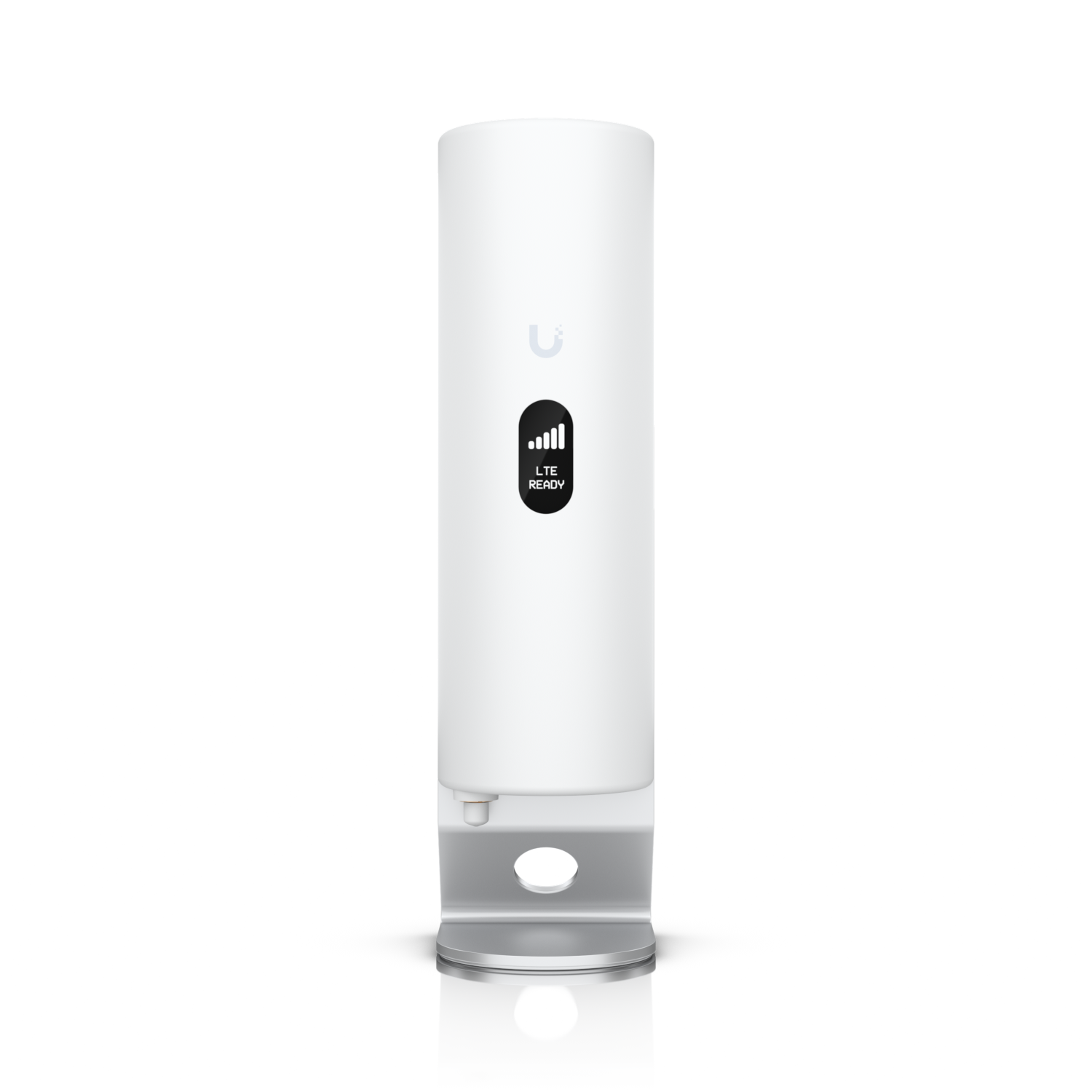

This device supports the AT&T network and requires you to bring your own AT&T nano-SIM for LTE data. It features flexible mounting options, including wall mount and foot stand, allowing for optimal placement to achieve the best LTE signal strength. The 1.54" status display provides real-time information on connection status and data usage.

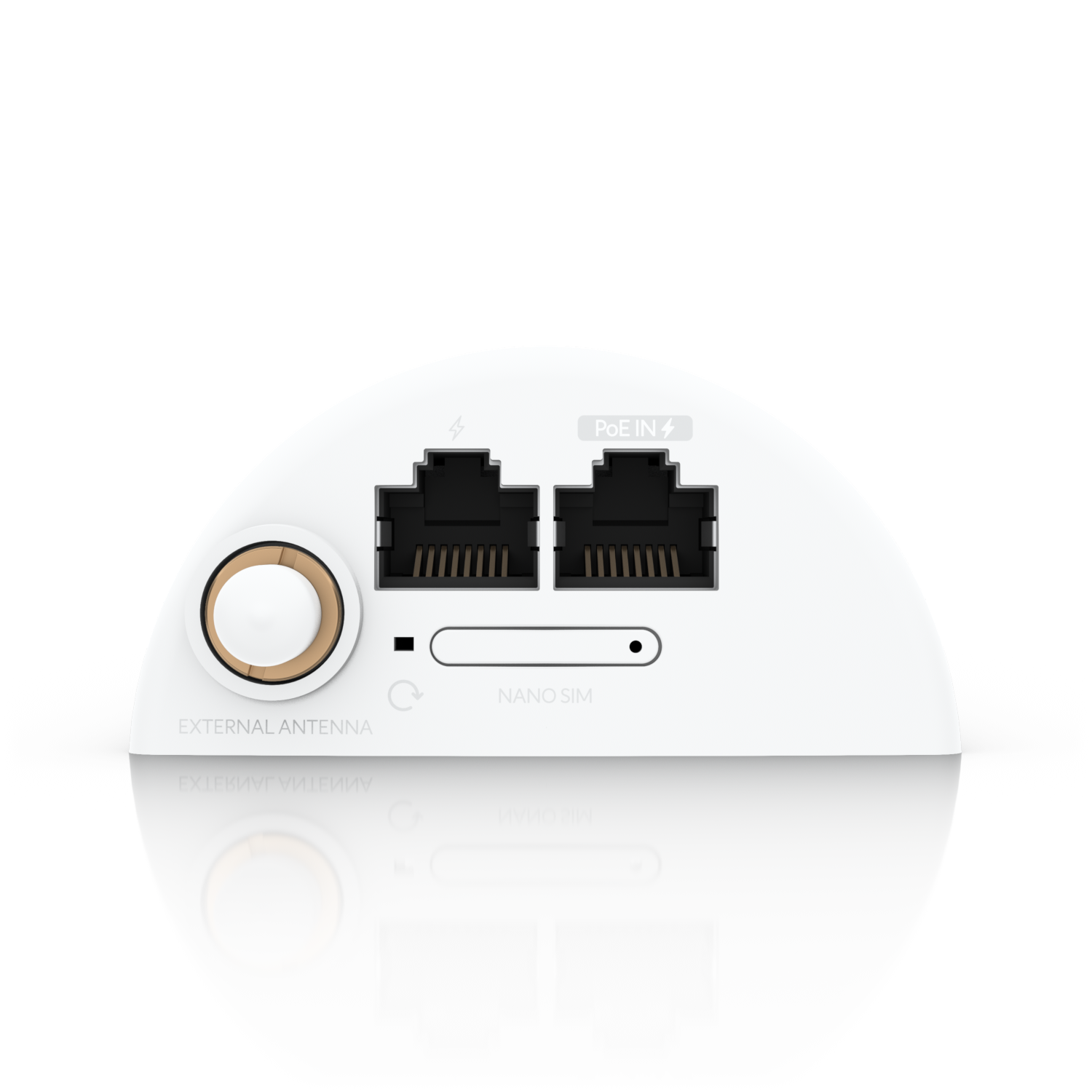

Powered via Power over Ethernet (PoE), the UniFi LTE Backup Pro simplifies installation by eliminating the need for additional power cables. It includes a Gigabit Ethernet port for seamless integration into your existing network infrastructure. Additionally, it offers a female RP-SMA connector for an optional external antenna to enhance LTE signal reception in areas with weak coverage.
- Seamless internet failover for UniFi gateways

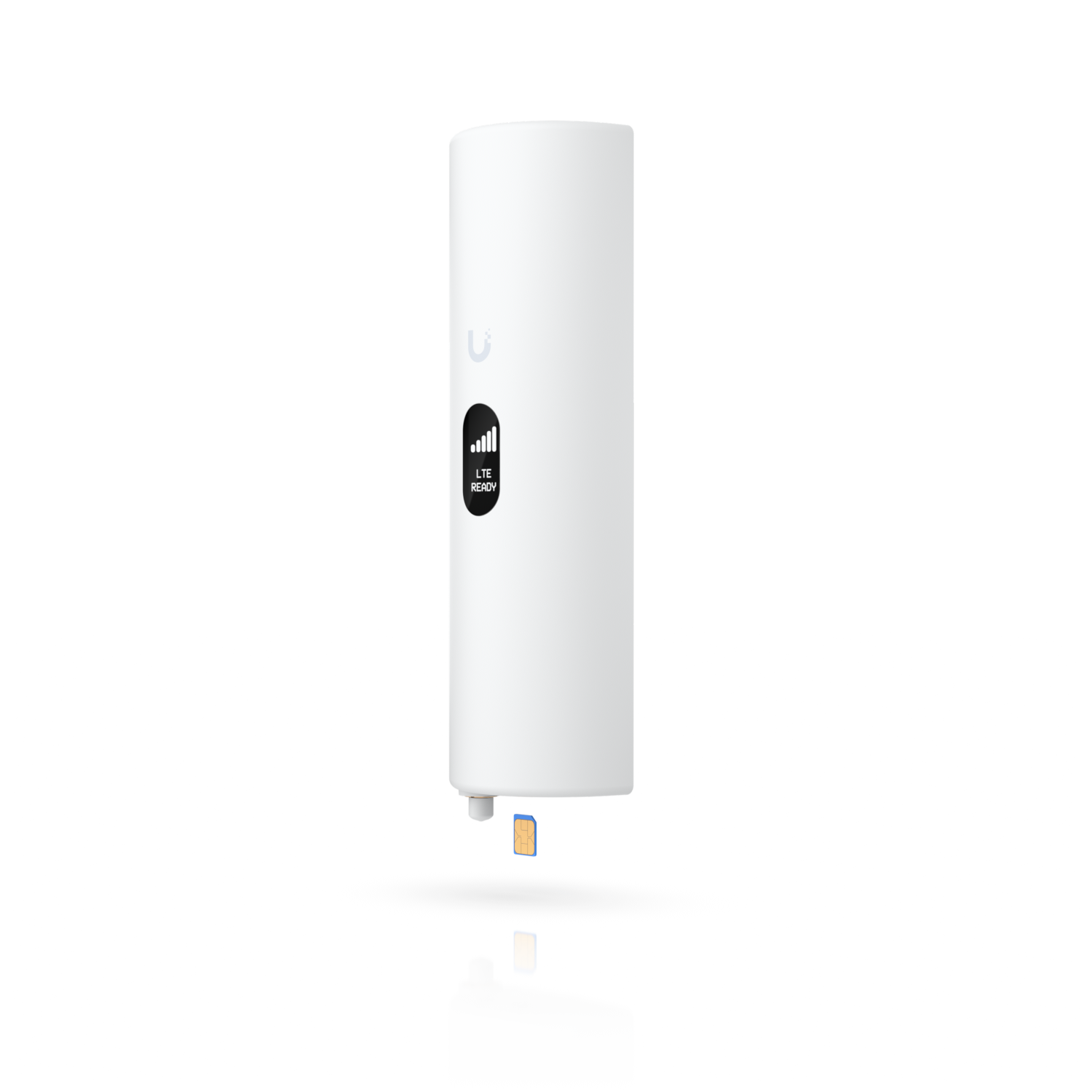

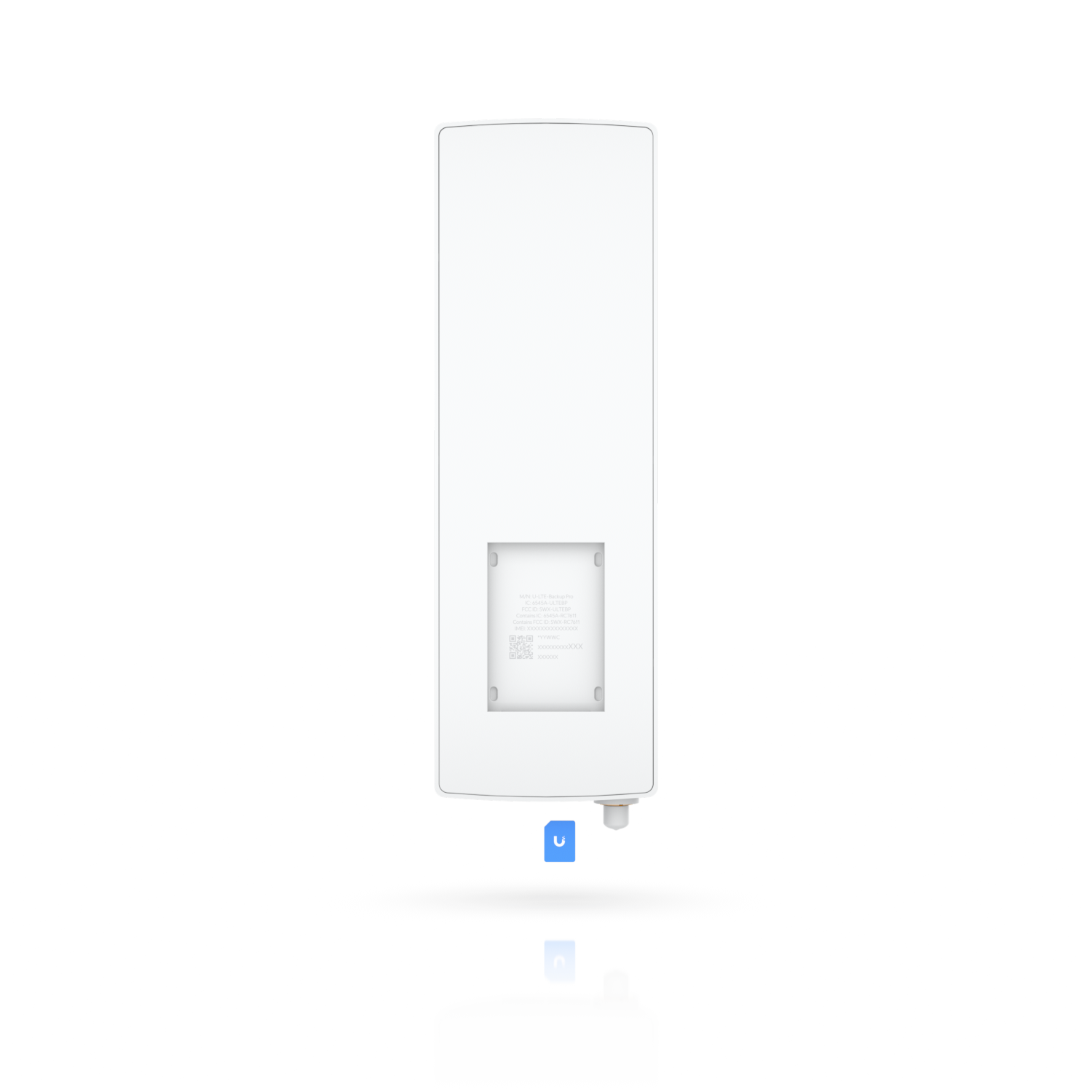

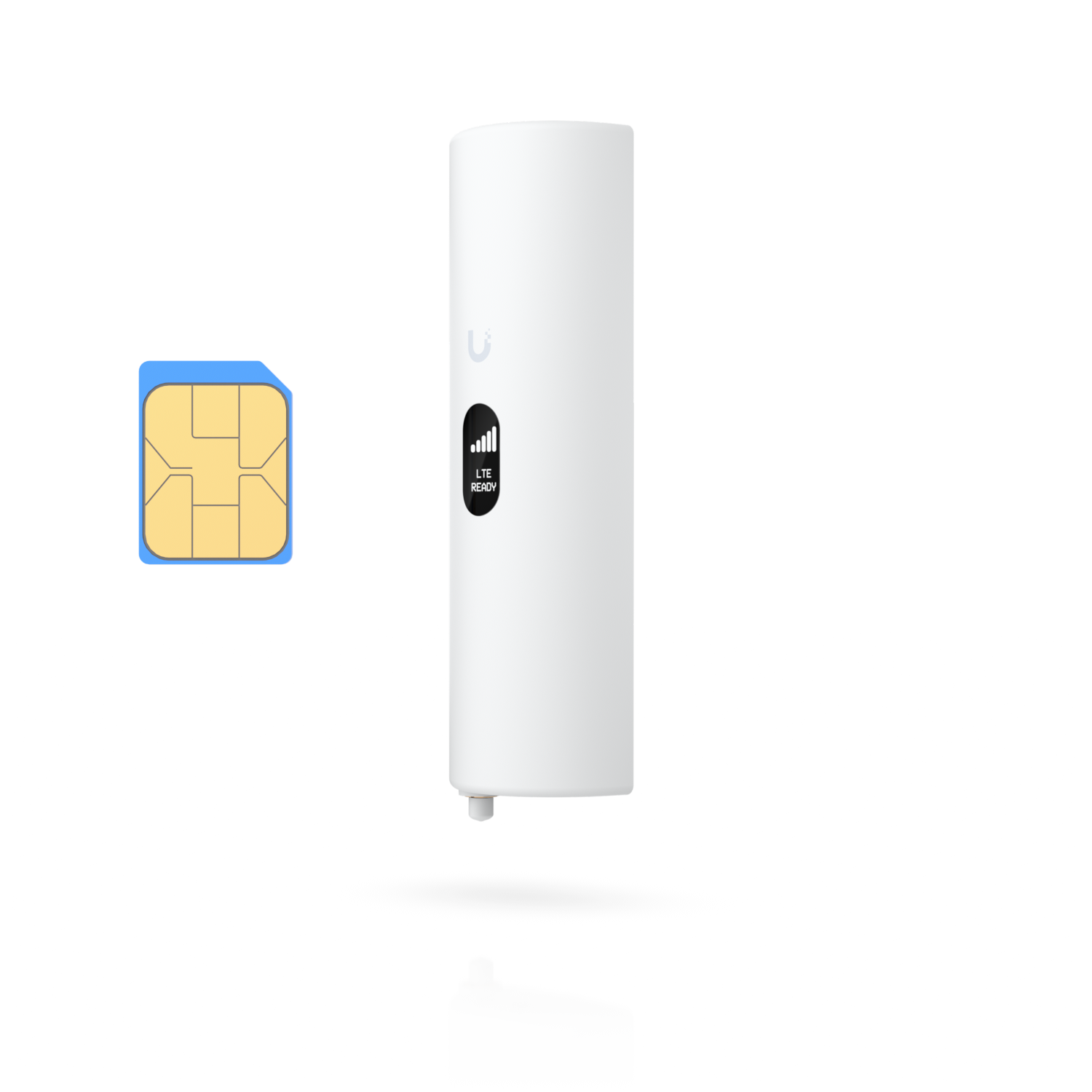

- Compatible with AT&T network (bring your own nano-SIM)
- Powered via PoE for simplified installation

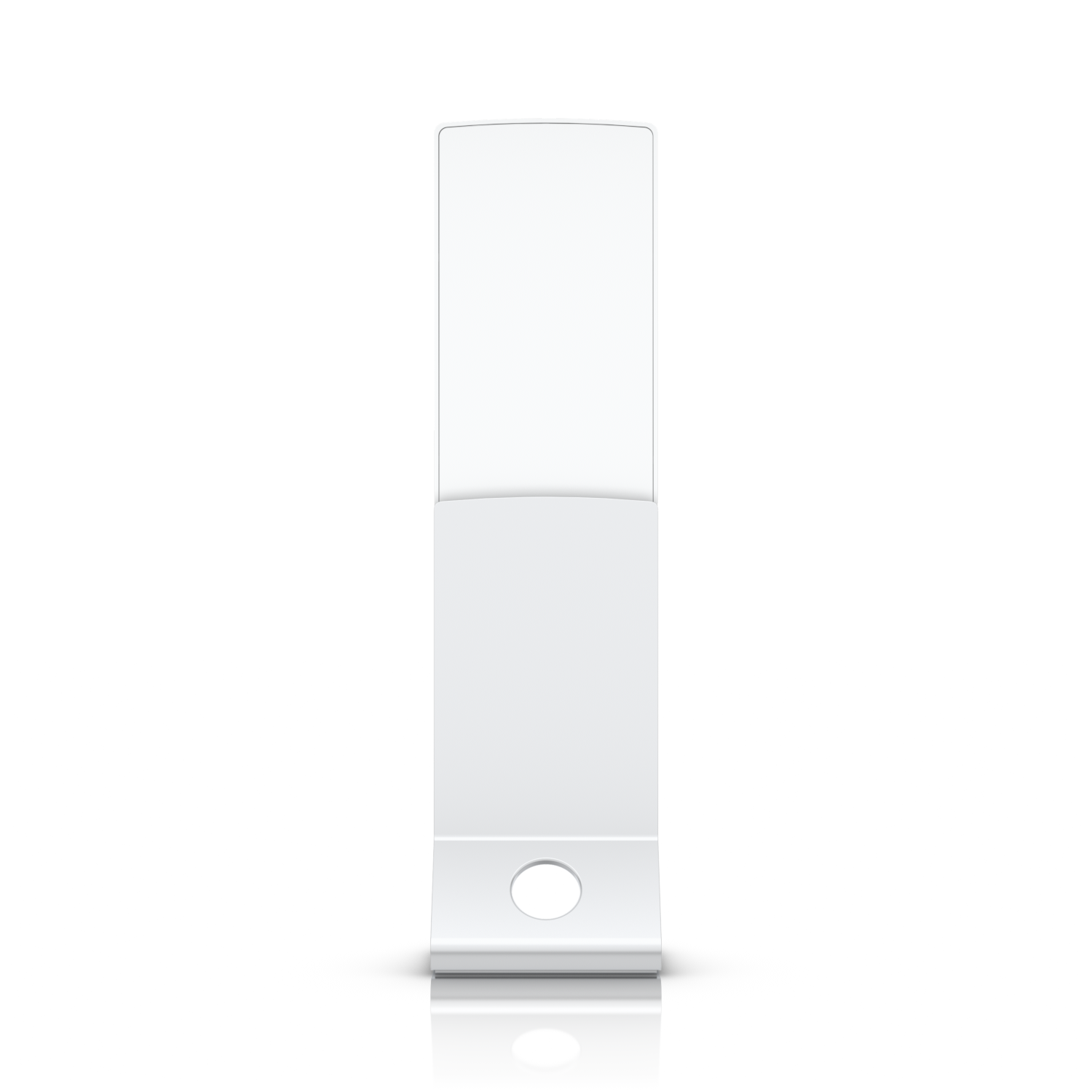

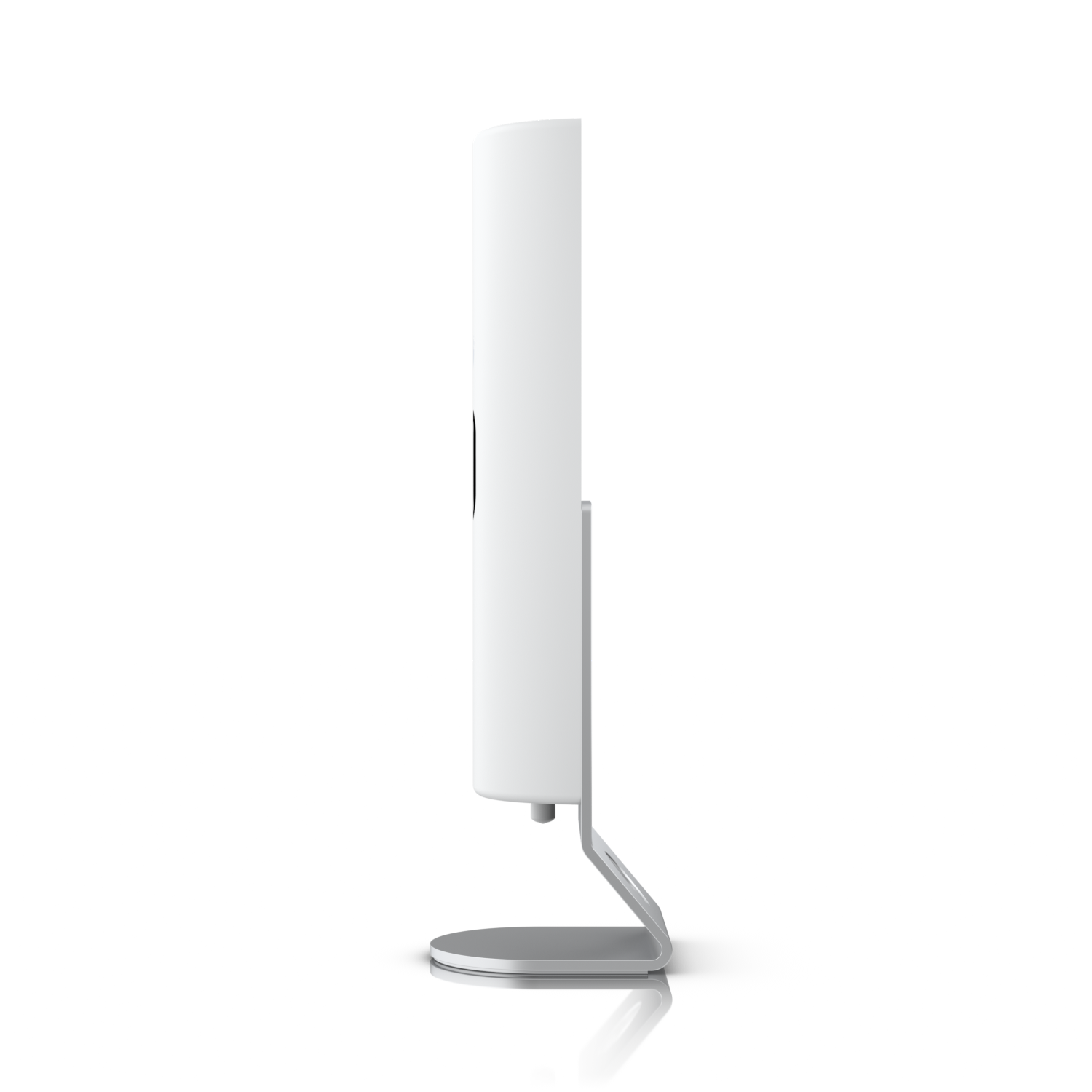

- Flexible mounting options: wall mount and foot stand included

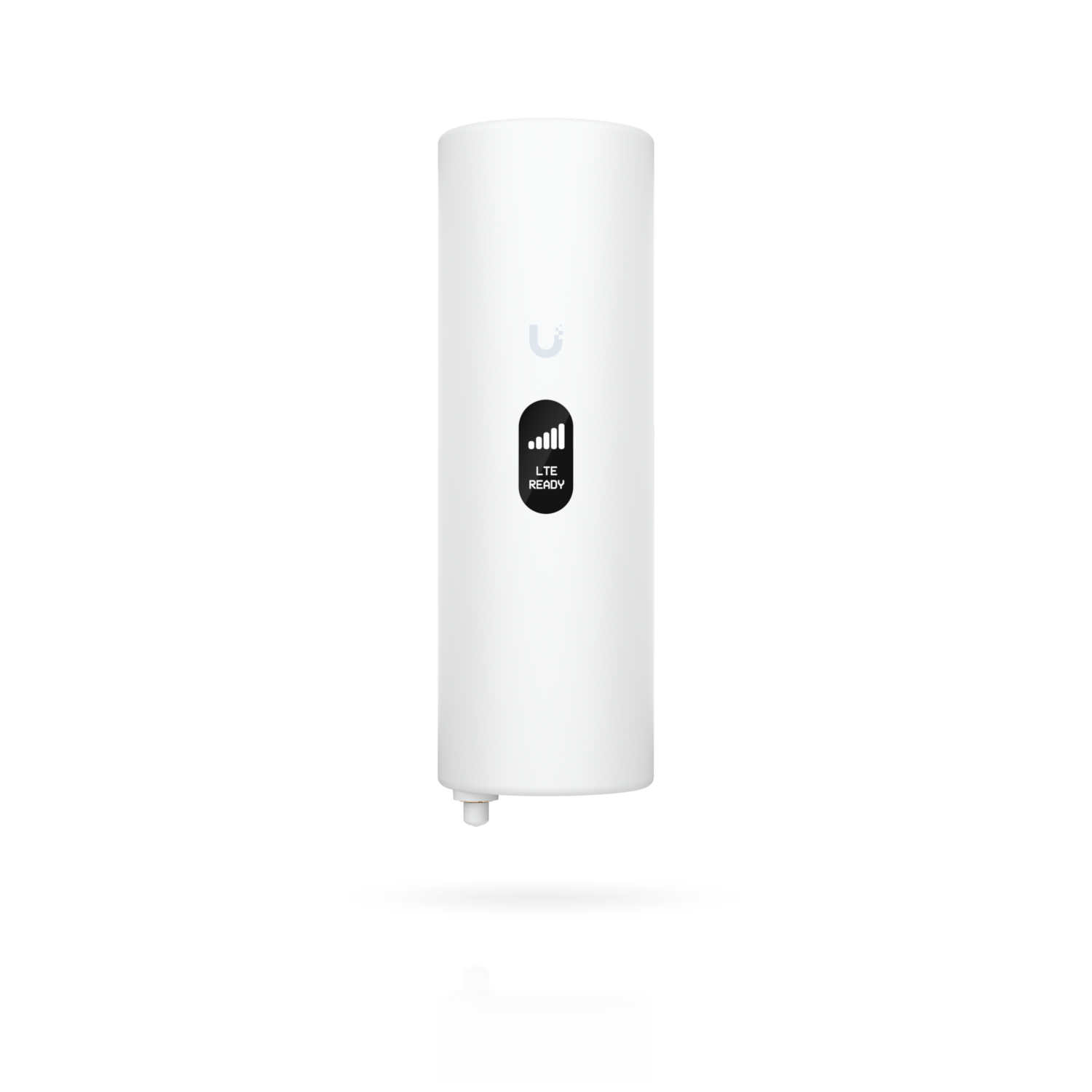

- 1.54" status display for real-time monitoring
- Optional external antenna support via RP-SMA connector
- Managed through UniFi Network application (version 7.2.85 and later)
| Specification | Value |
|---|---|
| Dimensions | 66 x 202 x 32 mm (2.6 x 8 x 1.3") |
| Weight | Without stand: 223 g (7.9 oz)With stand: 336 g (11.9 oz) |
| Networking Interface | (2) GbE RJ45 ports |
| LTE Radio | Category 4 |
| SIM Card | Nano-SIM (data-only) |
| LTE Bands | Band 2, 4, 5, 12, 14, 66 |
| MIMO | 2x2 |
| Max. Throughput Speeds | Download: 150 MbpsUpload: 50 Mbps |
| Antenna | (2) Internal LTE antennas(1) Female RP-SMA connector for optional external antenna (max gain 6 dBi) |
| Power Method | PoE (44–57V DC) |
| Max. Power Consumption | 8.5W (excluding PoE passthrough) |
| PoE Passthrough Wattage | 15.4W (requires PoE+ switch) |
| Display | 1.54" LCM screen |
| Operating Temperature | -10 to 60° C (14 to 140° F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC |
- Datasheet - Comprehensive technical specifications and features.
- Installation Guide - Step-by-step instructions for setup and installation.
