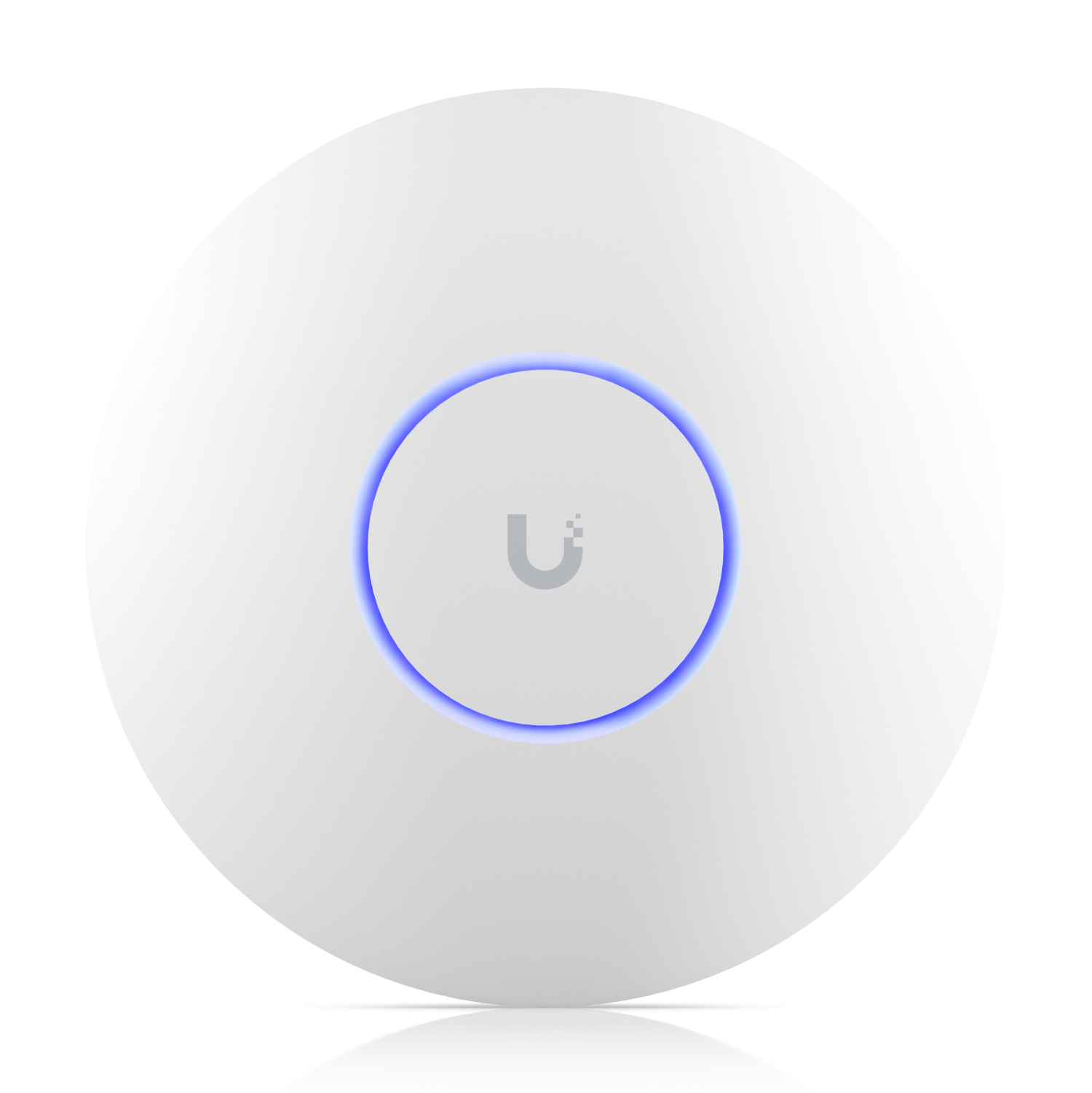

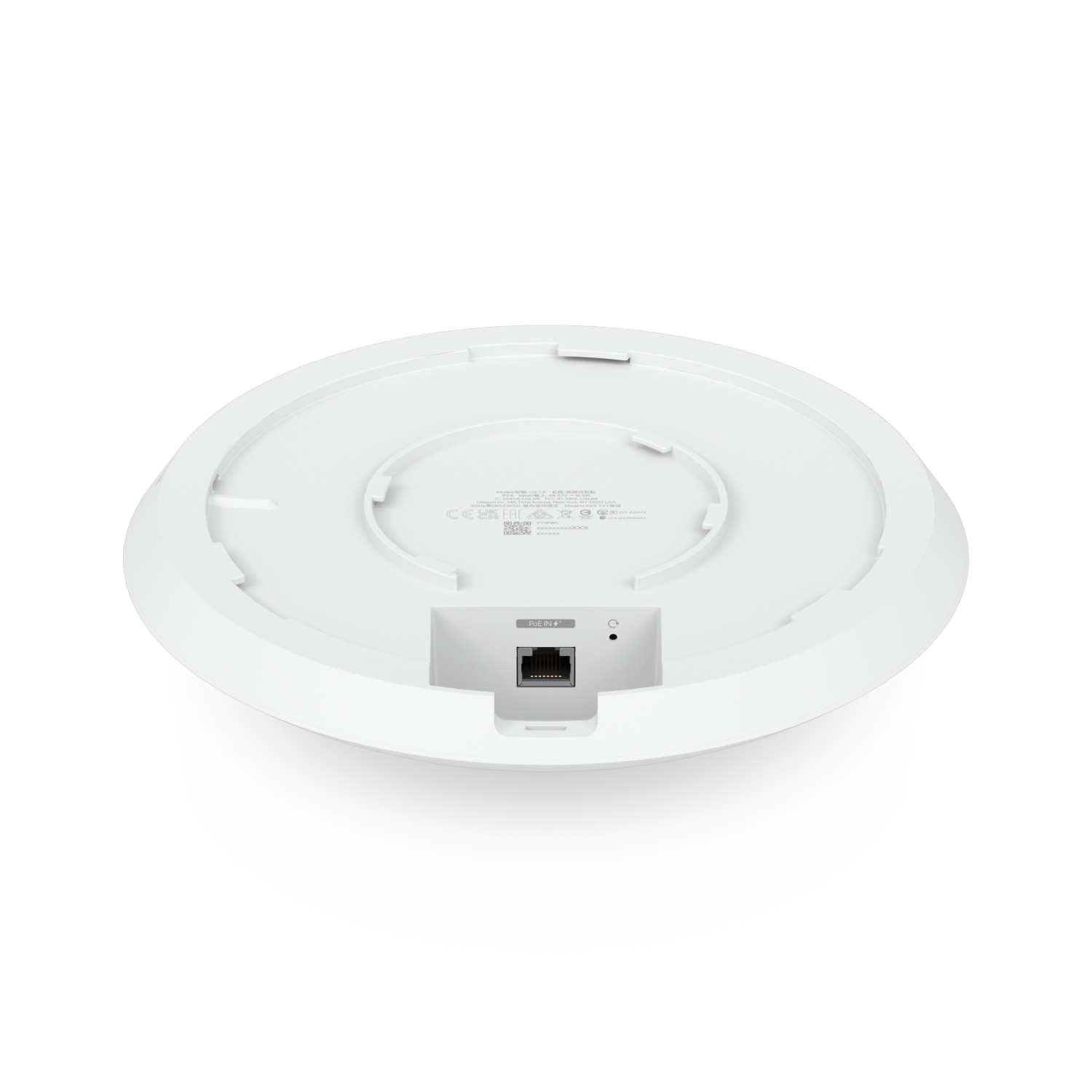

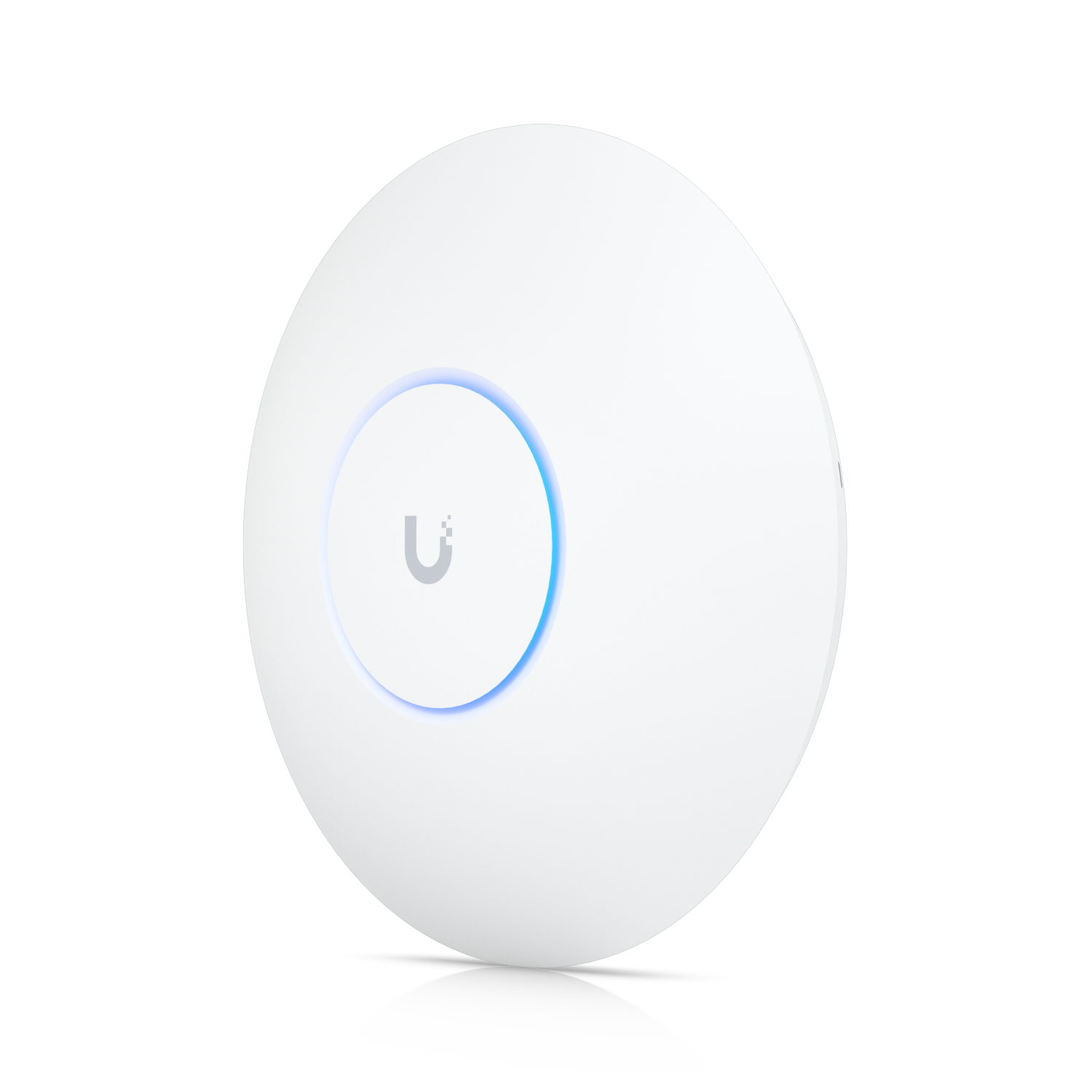

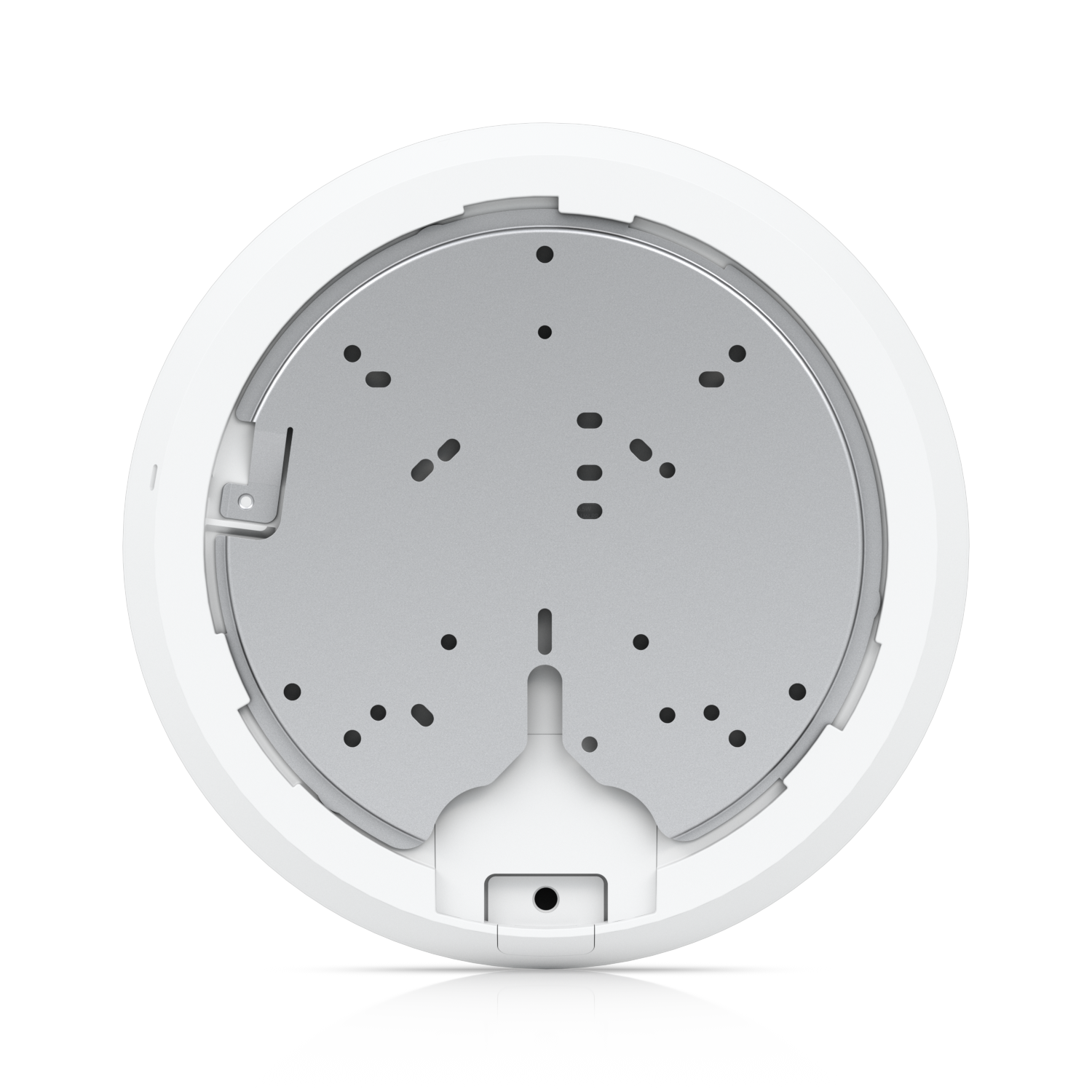

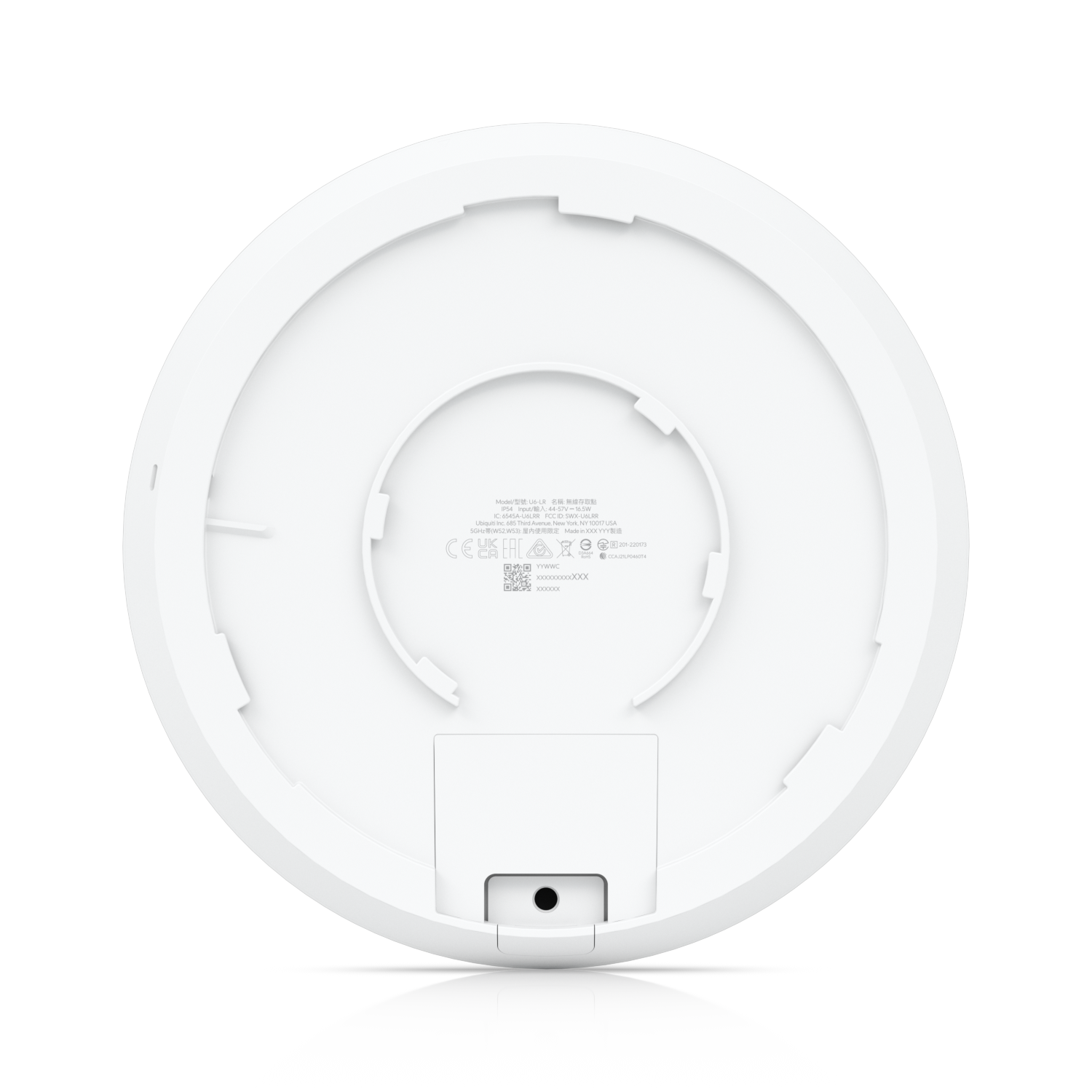

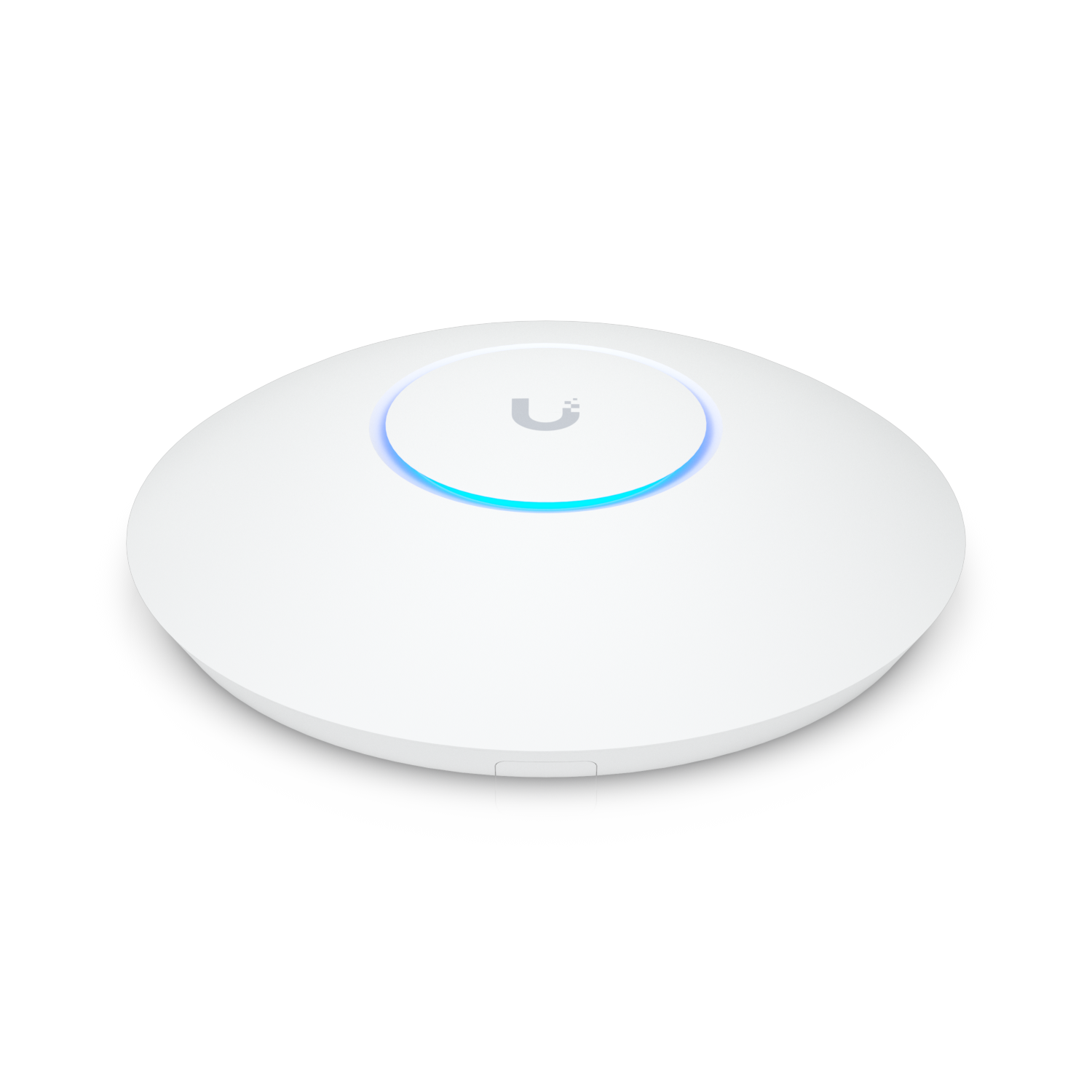

UniFi 6 Long-Range Access Point
By Brian Long
The UniFi 6 Long-Range (U6-LR) Access Point leverages advanced Wi-Fi 6 technology to deliver robust wireless coverage in enterprise settings. With its 4x4 MU-MIMO and OFDMA capabilities on both 2.4 GHz and 5 GHz bands, it achieves an aggregate data rate of up to 3.0 Gbps, ensuring high-speed connectivity for a multitude of devices.
Designed for versatility, the U6-LR features a sleek, minimalist aesthetic and is IP54-rated, making it suitable for indoor and semi-outdoor installations. Its enhanced antenna design provides a coverage area of up to 185 m² (2,000 ft²), accommodating over 300 concurrent clients, which makes it ideal for high-density environments.
The access point is powered via PoE+, simplifying deployment by utilizing existing network infrastructure. It integrates seamlessly with the UniFi Network Controller, offering centralized management and monitoring of all network devices.
- Wi-Fi 6 technology with 4x4 MU-MIMO and OFDMA
- Dual-band operation with 2.4 GHz and 5 GHz radios
- Aggregate data rate up to 3.0 Gbps
- Coverage area up to 185 m² (2,000 ft²)
- Supports over 300 concurrent clients
- IP54-rated for indoor and semi-outdoor installations
- Powered via PoE+ (802.3at)
- Managed through UniFi Network Controller
| Specification | Value |
|---|---|
| Dimensions | Ø220 x 48 mm (Ø8.7 x 1.9") |
| Weight | Without mount: 800 g (1.8 lb) |
| Networking Interface | (1) GbE RJ45 port |
| Max. Power Consumption | 18.5W |
| Max. TX Power | 2.4 GHz: 26 dBm5 GHz: 26 dBm |
| Antenna Gain | 2.4 GHz: 4 dBi5 GHz: 5.5 dBi |
| Wi-Fi Standards | 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Concurrent Clients | 300+ |
| Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
- Datasheet - Comprehensive technical specifications and features.
- Installation Guide - Step-by-step instructions for setup and installation.
