UniFi 6 Mesh Access Point
By Brian Long

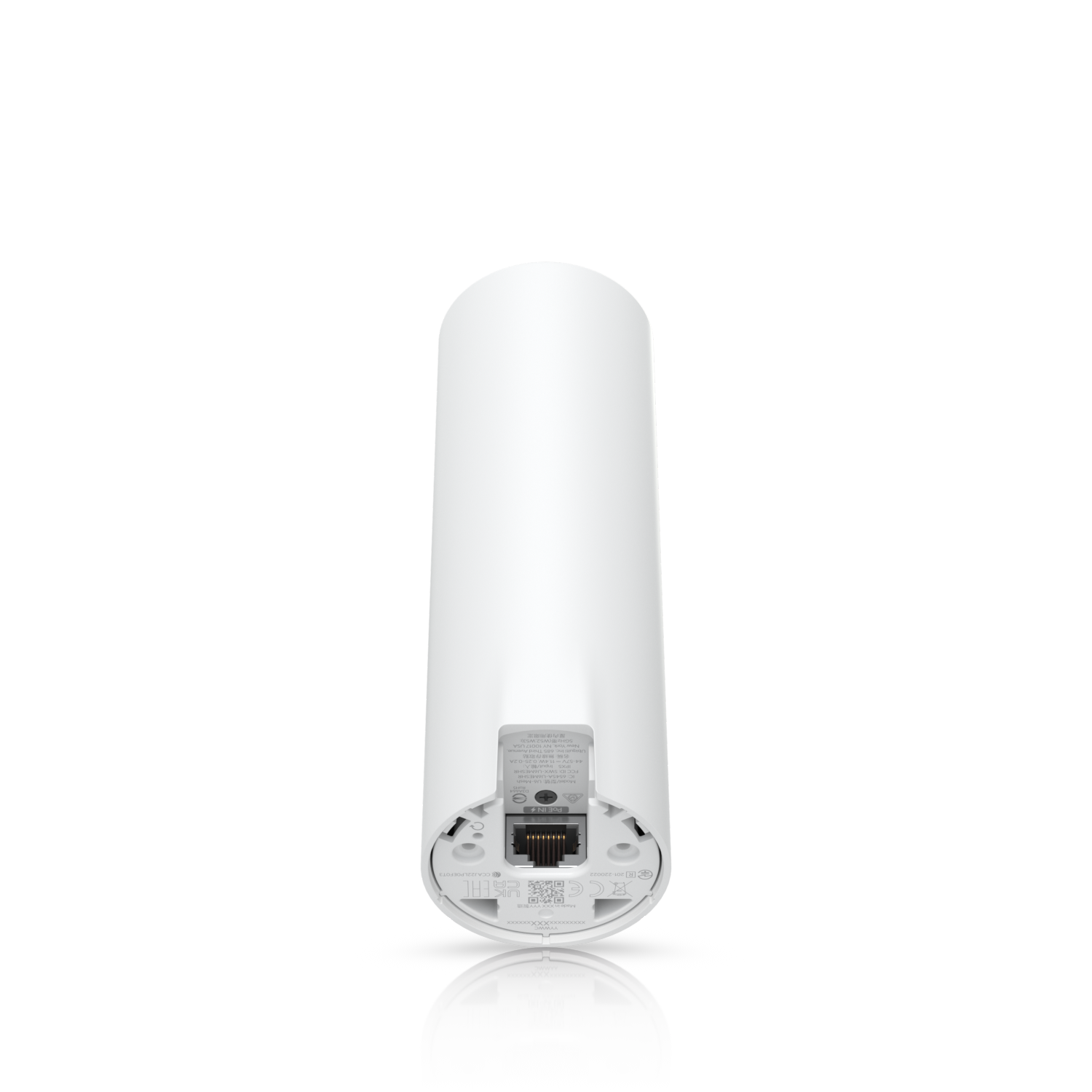

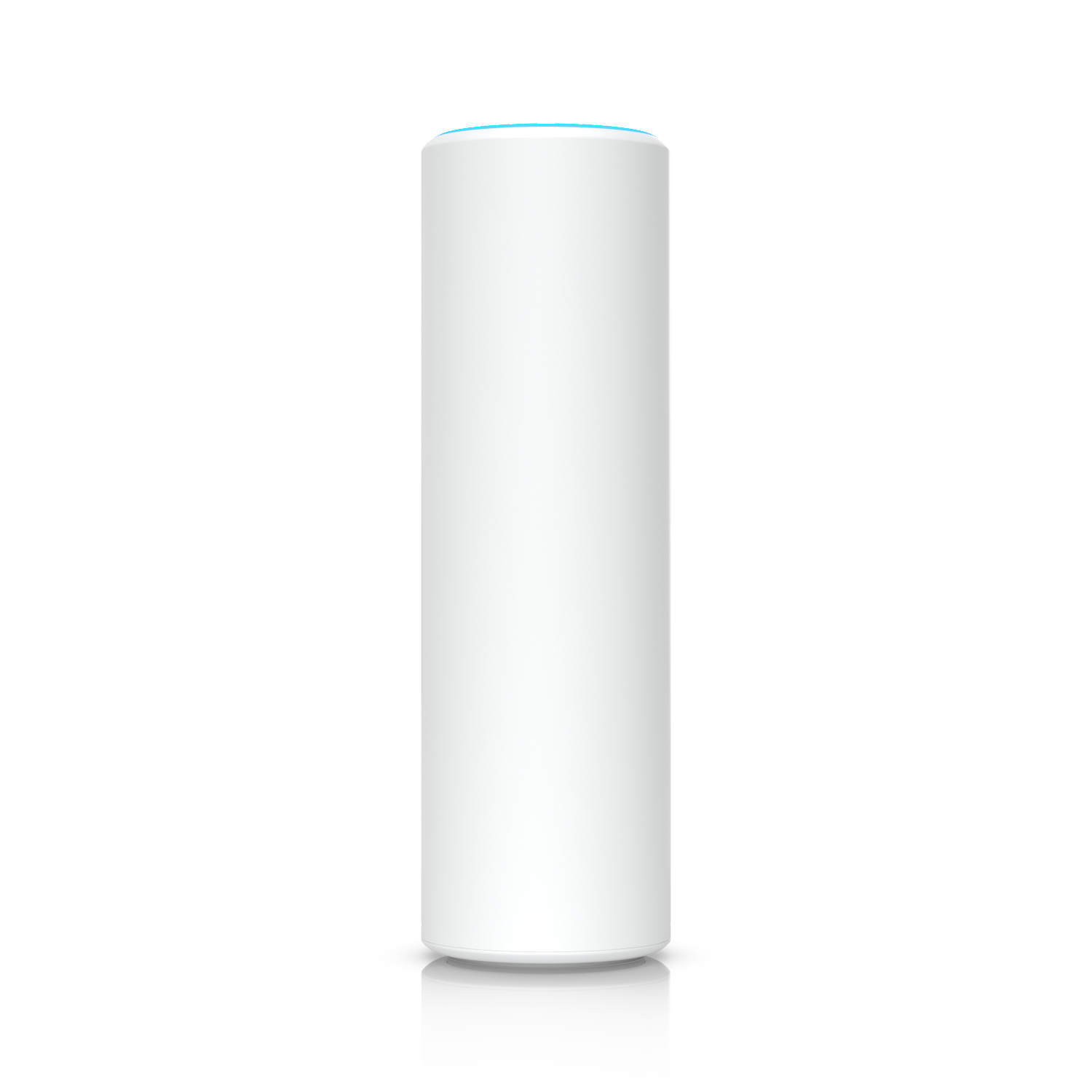

The UniFi 6 Mesh (U6-Mesh) is a sleek, high-performance Wi-Fi 6 access point engineered to provide robust wireless coverage in both indoor and outdoor environments. With its compact design and flexible mounting options, including wall, desktop, and pole mounts, the U6-Mesh seamlessly integrates into various deployment scenarios.
Equipped with advanced 4x4 MU-MIMO and OFDMA technology on the 5 GHz band and 2x2 MIMO on the 2.4 GHz band, the U6-Mesh delivers an impressive aggregate data rate of up to 5.3 Gbps. This ensures high-speed connectivity for a multitude of devices, supporting over 300 concurrent clients, making it ideal for high-density environments.
The U6-Mesh is powered via PoE, simplifying installation by utilizing existing network infrastructure. Its weather-resistant IPX5-rated enclosure ensures reliable performance in various environmental conditions. Managed through the intuitive UniFi Network Controller, it offers centralized management and monitoring of all network devices.
- Wi-Fi 6 technology with 4x4 MU-MIMO and OFDMA on 5 GHz
- Dual-band support with 2x2 MIMO on 2.4 GHz
- Aggregate data rate up to 5.3 Gbps
- Supports over 300 concurrent clients
- Weather-resistant IPX5-rated enclosure for indoor and outdoor use
- Powered via PoE for simplified installation

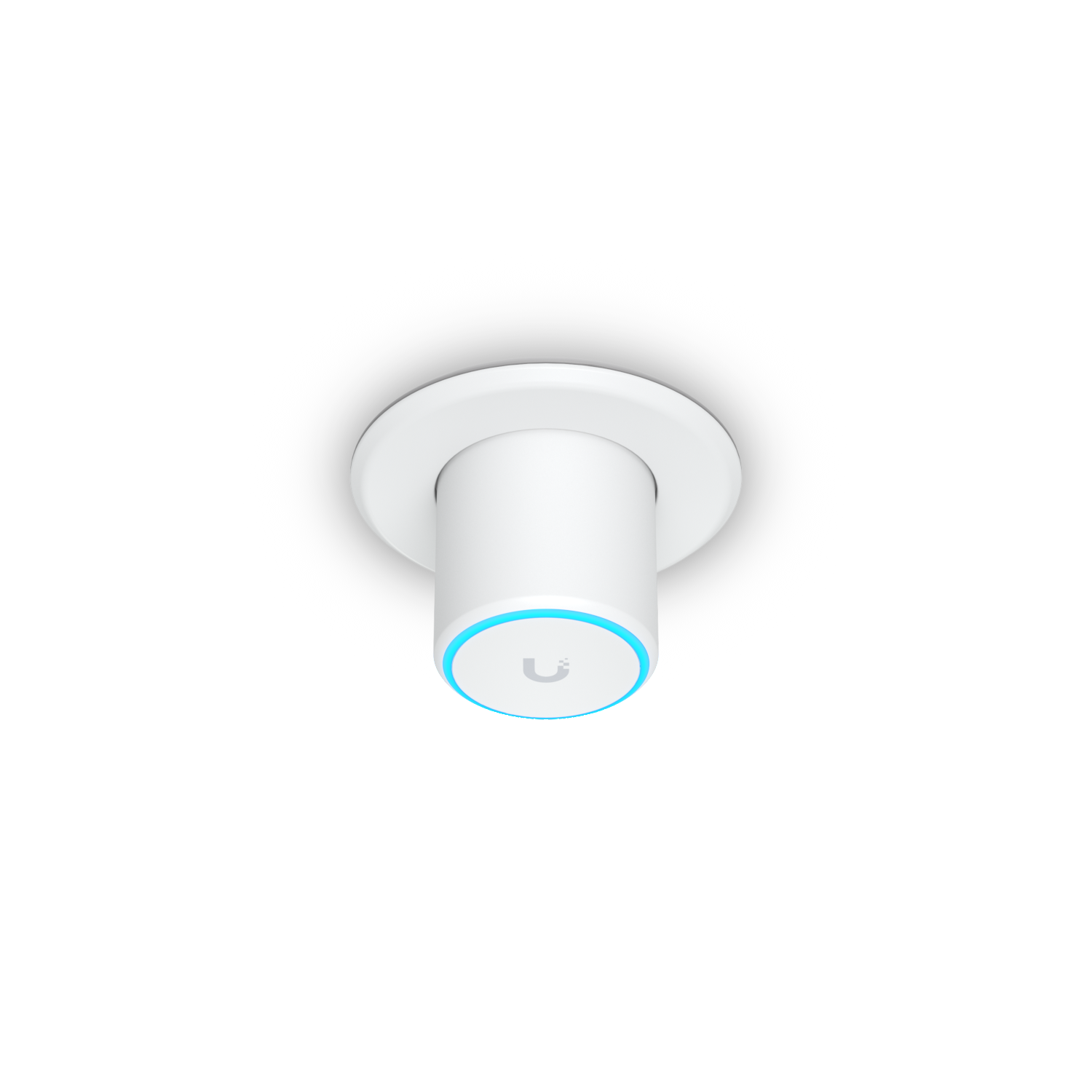

- Versatile mounting options: wall, desktop, and pole
- Managed through UniFi Network Controller
| Specification | Value |
|---|---|
| Dimensions | Ø48.5 x 159.5 mm (Ø1.9 x 6.3") |
| Weight | 400 g (14.1 oz) |
| Networking Interface | (1) GbE RJ45 port |
| Max. Power Consumption | 13W |
| Max. TX Power | 2.4 GHz: 22 dBm5 GHz: 26 dBm |
| Antenna Gain | 2.4 GHz: 3 dBi5 GHz: 5 dBi |
| Wi-Fi Standards | 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Concurrent Clients | 300+ |
| Weatherproofing | IPX5 |
| Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
- Datasheet - Comprehensive technical specifications and features.
- Installation Guide - Step-by-step instructions for setup and installation.
