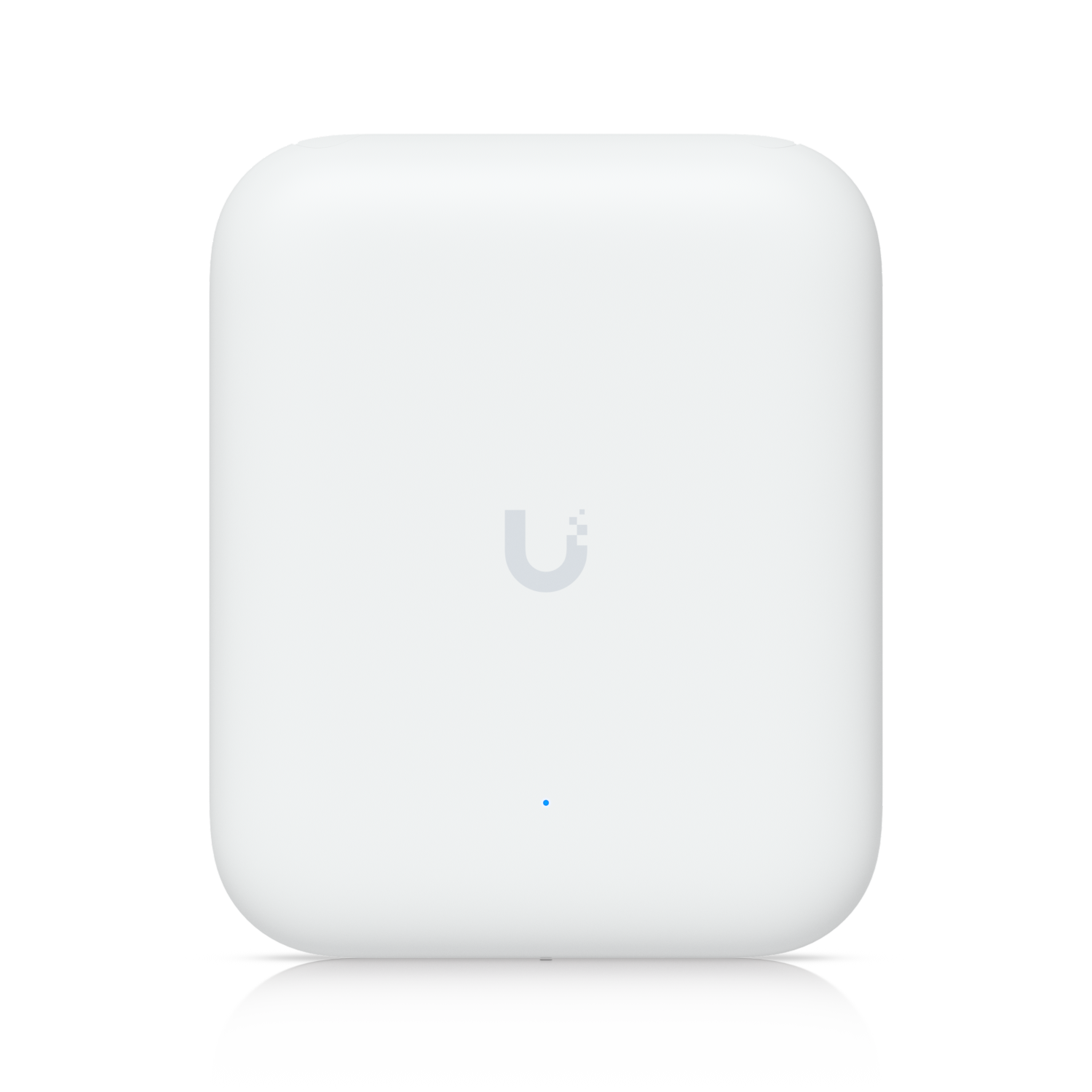

UniFi U7 Outdoor Access Point
By Brian Long
The UniFi U7 Outdoor is Ubiquiti’s latest all-weather Wi-Fi 7 access point, engineered to provide superior wireless performance in outdoor environments. With support for the latest Wi-Fi 7 technology, it offers enhanced capacity, efficiency, and reliability for modern applications.
Equipped with 4 spatial streams, the U7 Outdoor delivers impressive data rates across its dual-band configuration:
- 2.4 GHz: Up to 688 Mbps
- 5 GHz: Up to 4.3 Gbps
This ensures high-speed connectivity for a multitude of devices, supporting over 250 concurrent clients, making it ideal for large-scale outdoor deployments.
The U7 Outdoor features an integrated directional super antenna, providing up to 465 m² (5,000 ft²) of open space coverage. It also includes external omni antennas, allowing for flexible coverage options to suit various deployment scenarios.
Powered via PoE+, the U7 Outdoor simplifies installation by utilizing existing network infrastructure. Its weather-resistant IPX6-rated enclosure ensures reliable performance in various environmental conditions, with versatile mounting options for wall, ceiling, or pole installations.
Managed through the intuitive UniFi Network Controller, the U7 Outdoor offers centralized management and monitoring of all network devices, ensuring streamlined network administration.
- Dual-band Wi-Fi 7 technology with 4 spatial streams
- Aggregate data rate up to 5 Gbps
- Supports over 250 concurrent clients
- Integrated directional super antenna with up to 465 m² (5,000 ft²) coverage

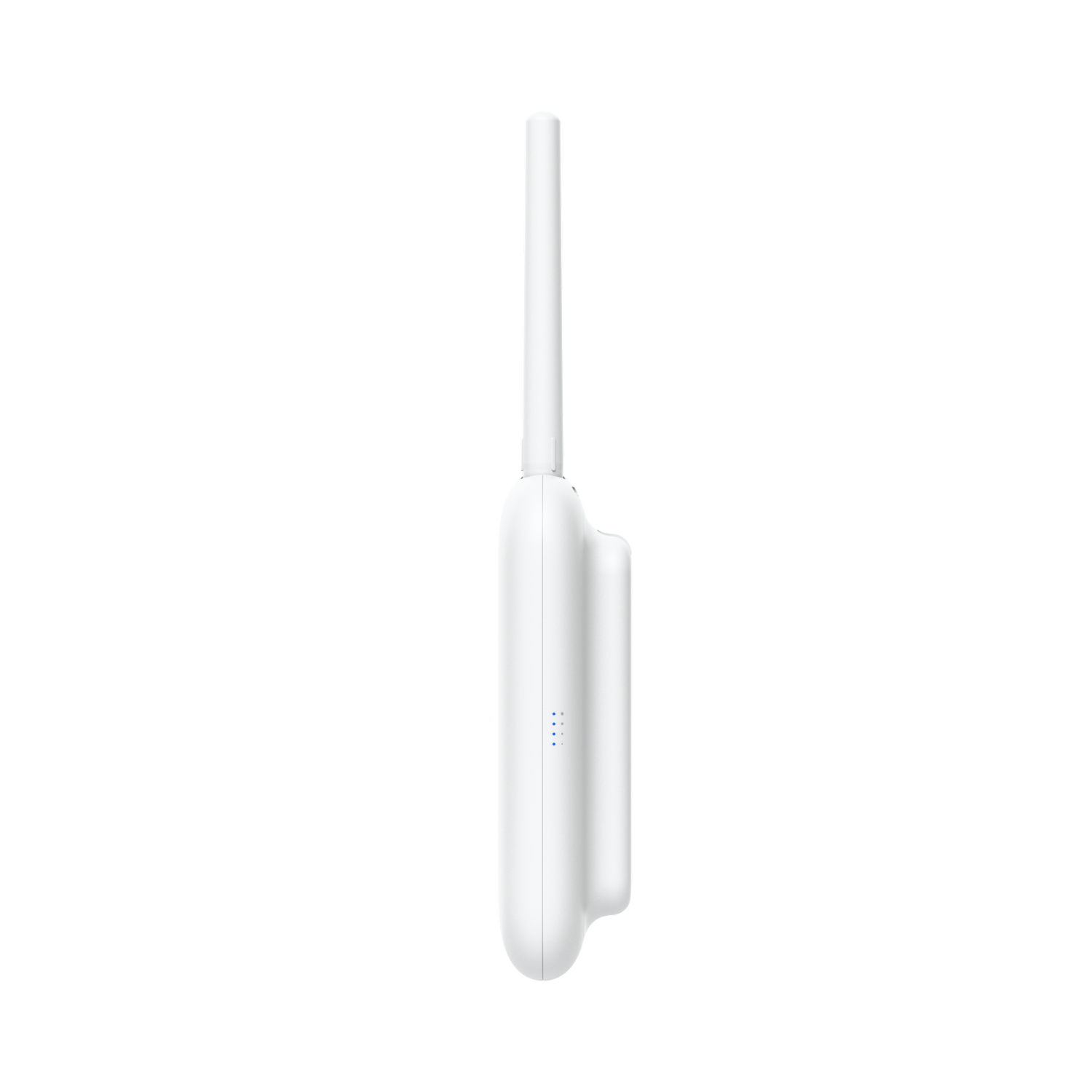

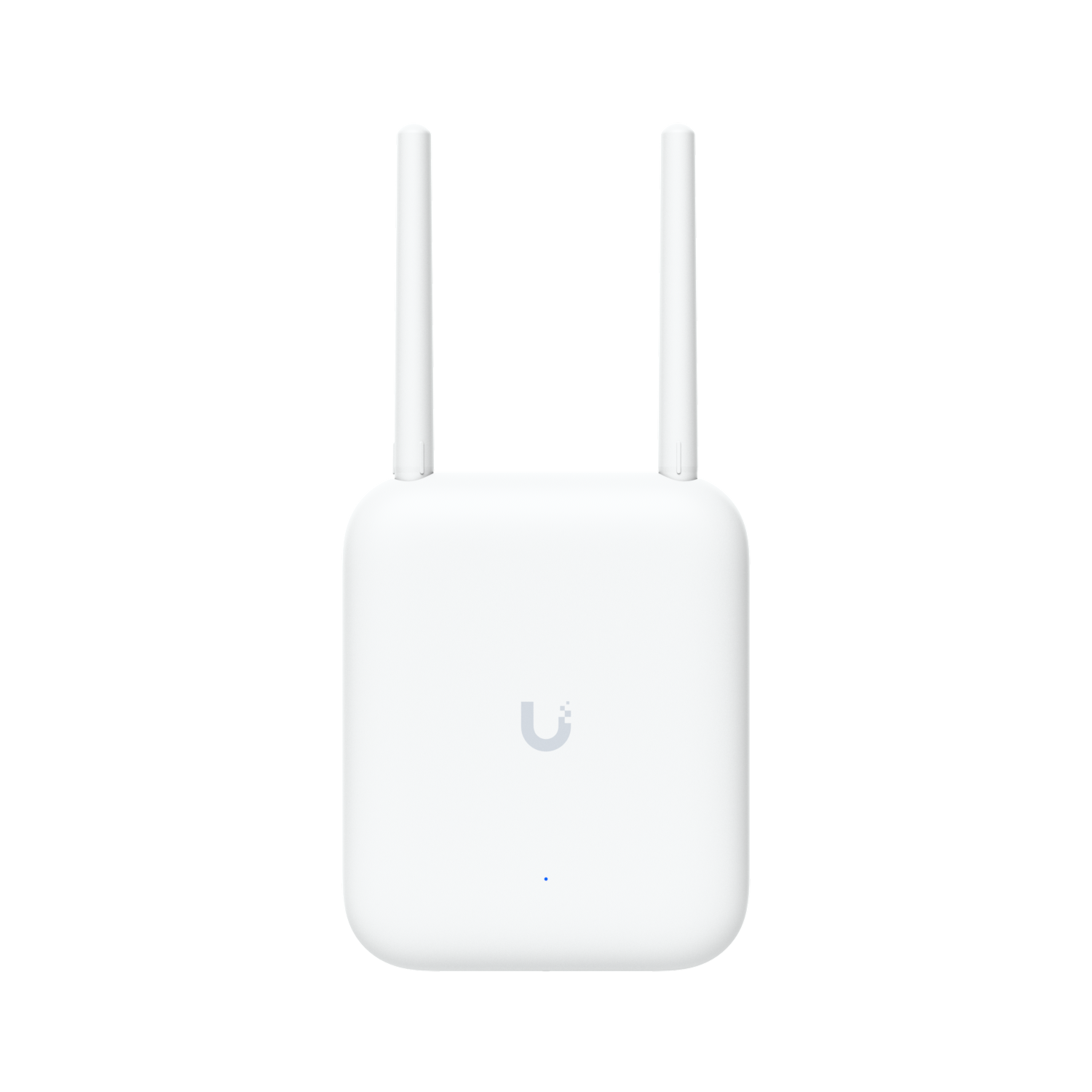

- Includes external omni antennas for flexible coverage options
- Powered via PoE+ for simplified installation
- Weather-resistant IPX6-rated enclosure for outdoor use

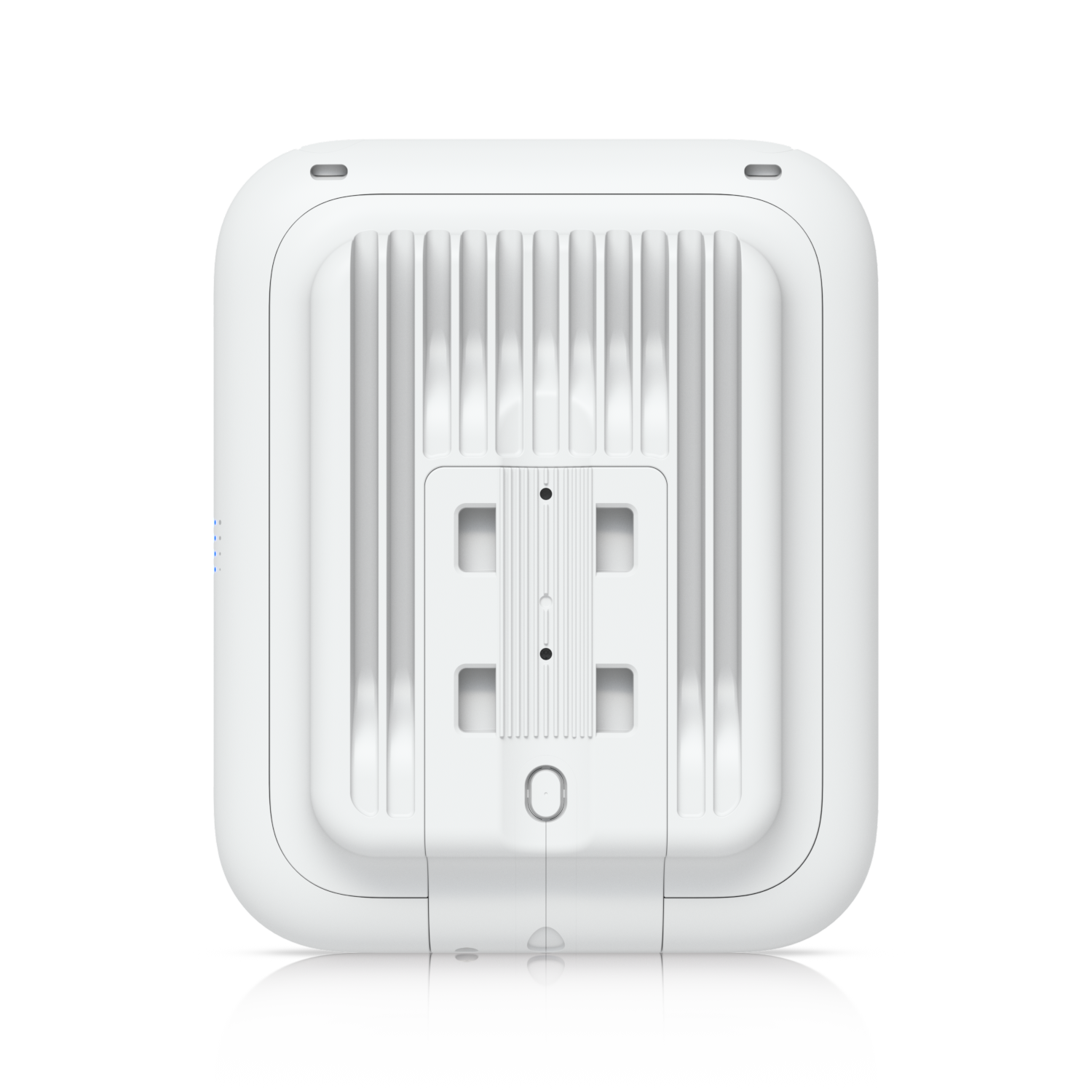

- Versatile mounting options: wall, ceiling, and pole
- Managed through UniFi Network Controller
| Specification | Value |
|---|---|
| Dimensions | 170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1") |
| Weight | 1.2 kg (2.6 lb) |

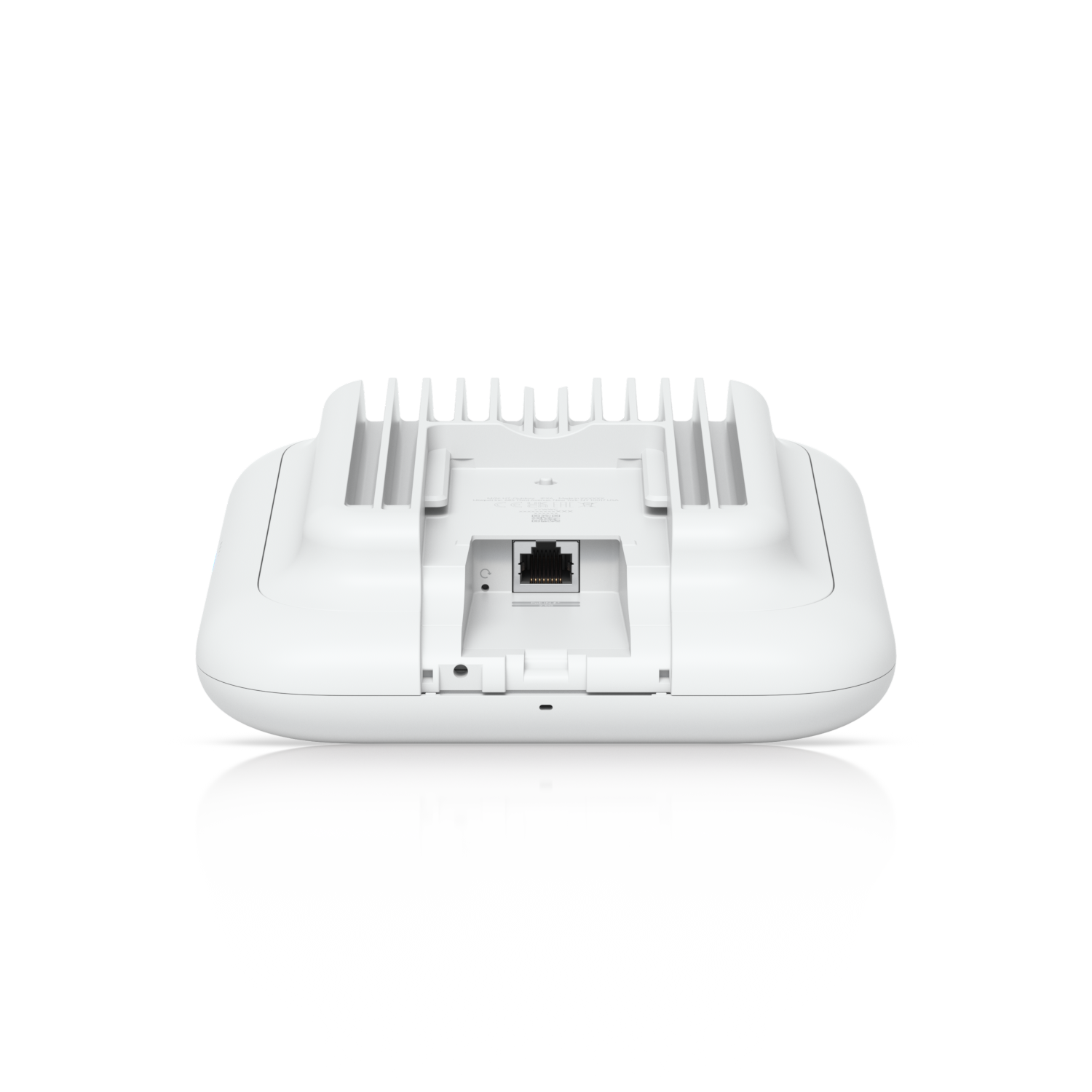

| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Max. Power Consumption | 19W |
| Max. TX Power | 2.4 GHz: 23 dBm5 GHz: 26 dBm |
| Antenna Gain | 2.4 GHz: Directional internal: 8 dBi / External omni: 3 dBi5 GHz: Directional internal: 12.5 dBi / External omni: 4 dBi |
| Wi-Fi Standards | 802.11a/b/g/n/ac/ax/be (Wi-Fi 6, Wi-Fi 7) |
| Concurrent Clients | 250+ |
| Weatherproofing | IPX6 |
| Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
- Datasheet - Comprehensive technical specifications and features.
- Installation Guide - Step-by-step instructions for setup and installation.
For quotes and expert services, contact Synapses Technologies—your trusted partner for UniFi solutions, installation, and project management.
