UniFi Standard 24 PoE Switch
By Brian Long

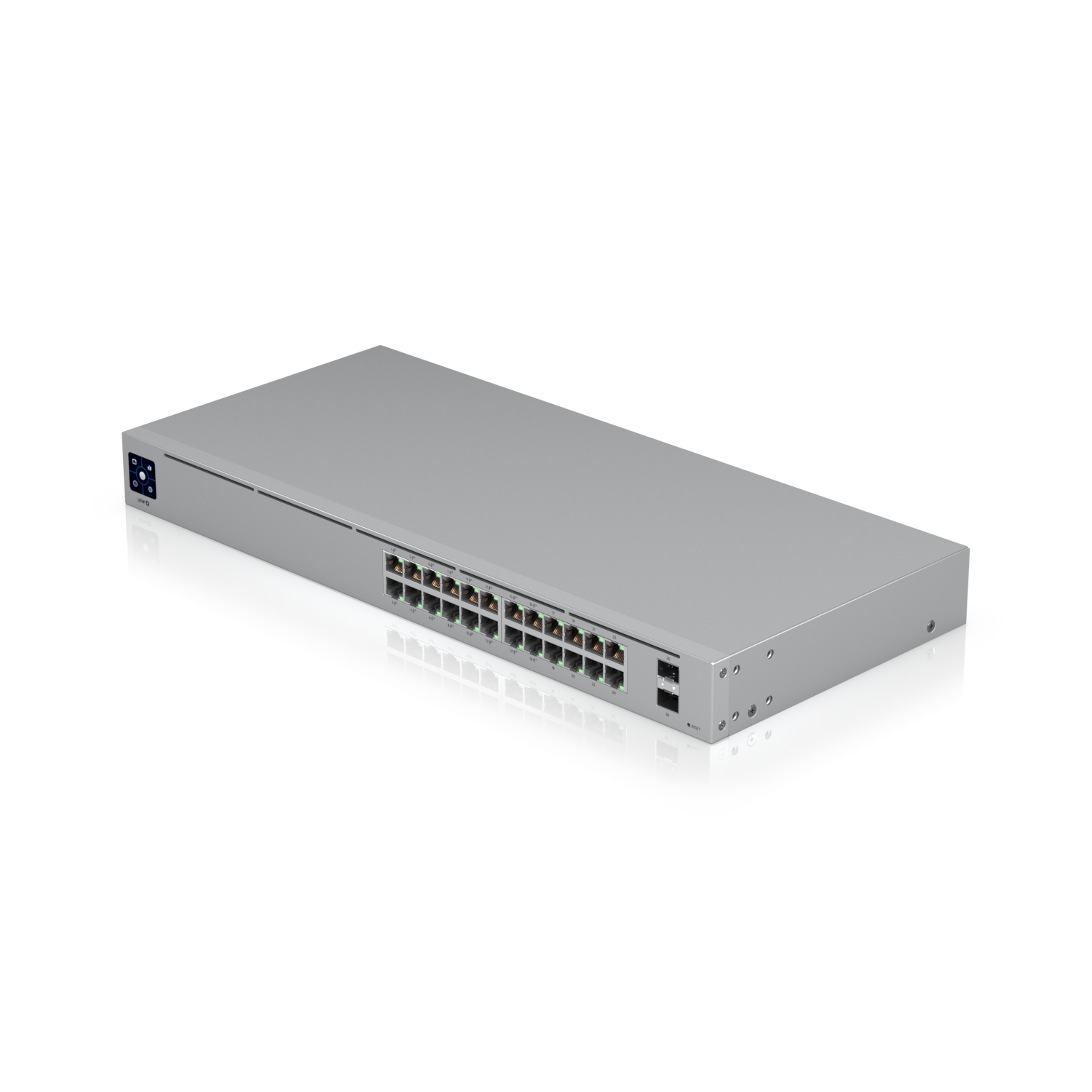

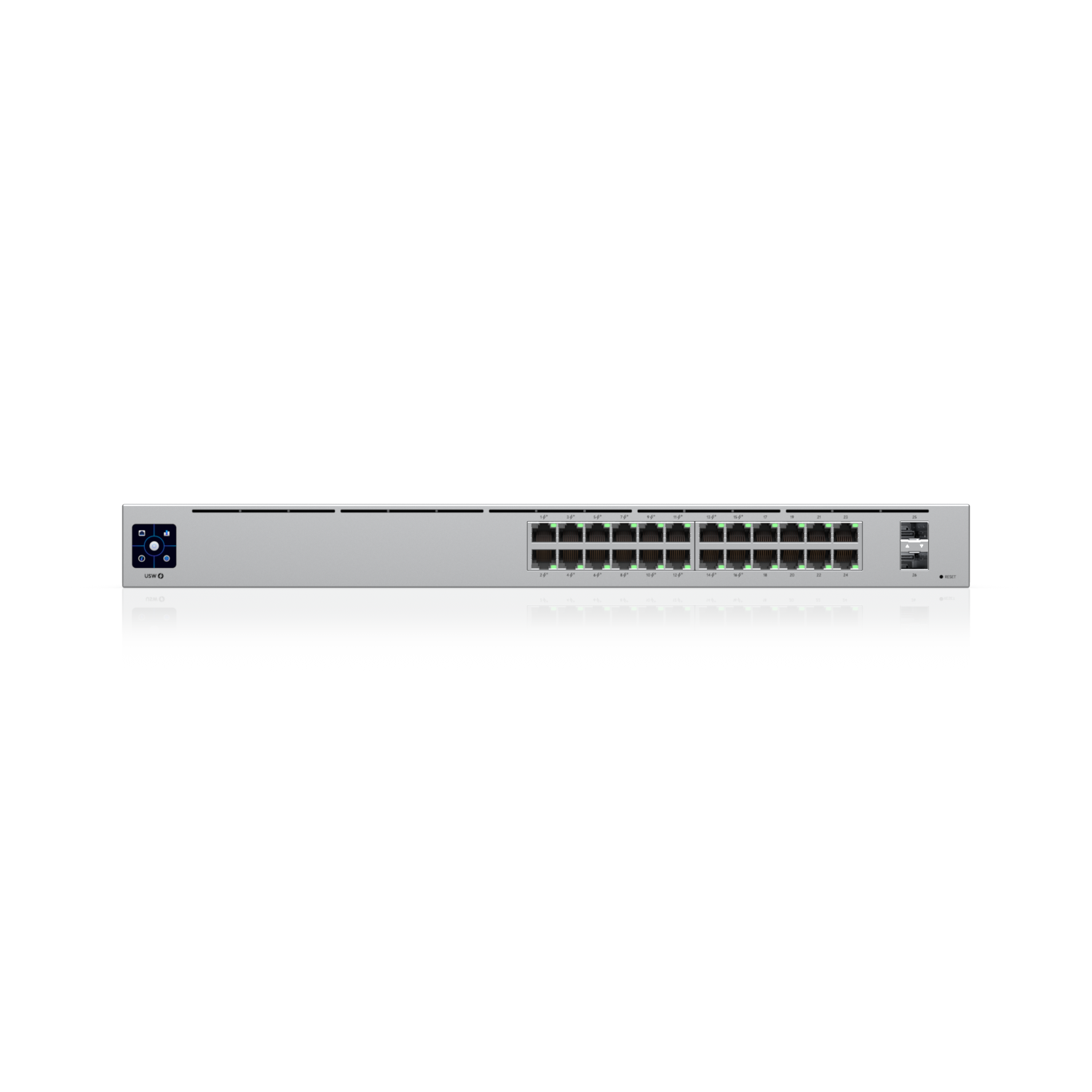

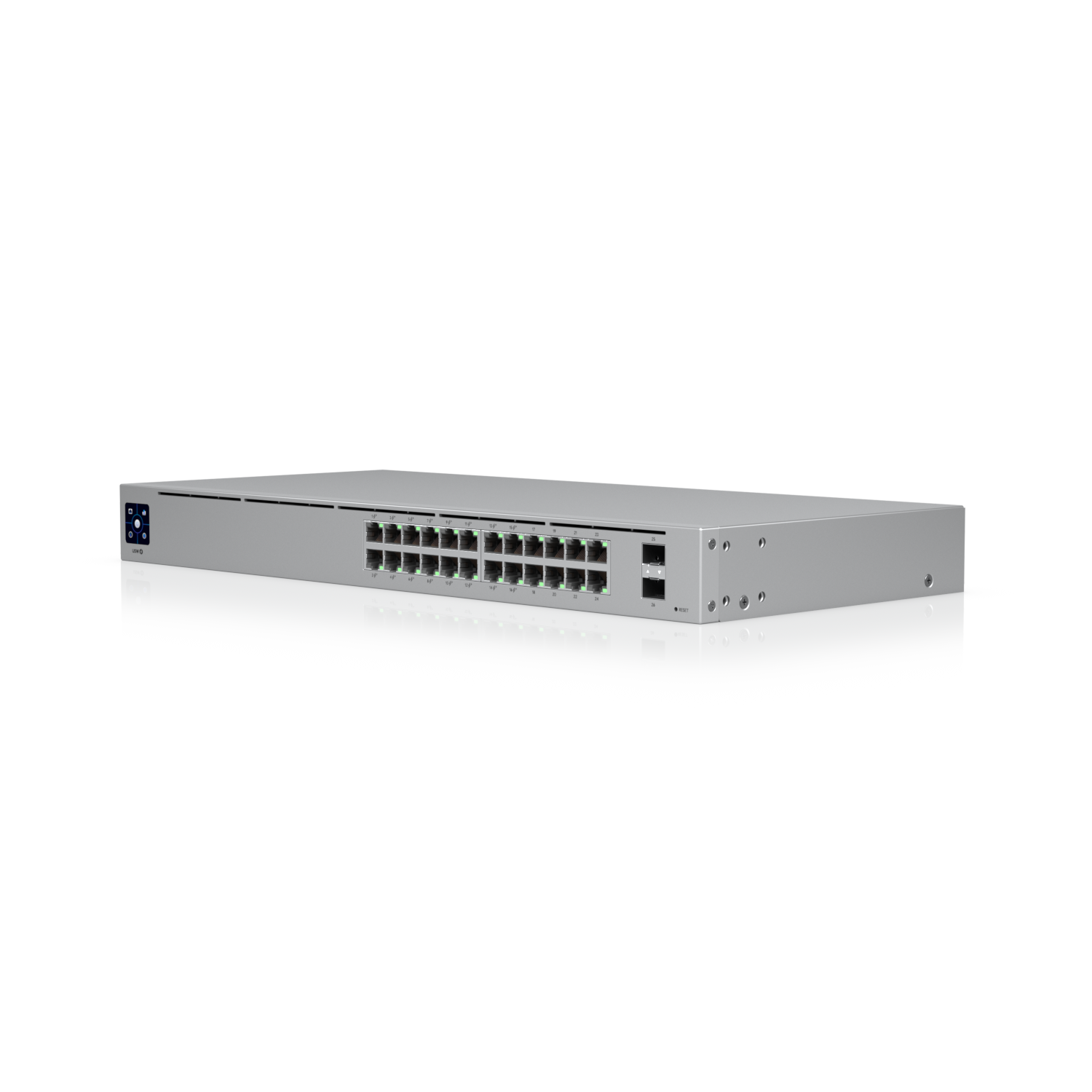

The UniFi Standard 24 PoE Switch (USW-24-POE) is a high-performance, fanless switch designed to provide robust networking solutions for small to medium-sized businesses. With its 24 Gigabit Ethernet ports, including 16 PoE+ ports, and 2 SFP ports, it ensures seamless connectivity and power delivery to a variety of devices such as access points, IP cameras, and VoIP phones.
This switch boasts a total non-blocking throughput of 26 Gbps and a switching capacity of 52 Gbps, ensuring efficient data transfer across your network. Its fanless, silent cooling design makes it ideal for noise-sensitive environments, while the refined rack-mountable industrial design allows for easy integration into existing network setups.
With a total available PoE of 95W and a maximum PoE wattage per port of 32W, the USW-24-POE can effectively power multiple devices simultaneously. The switch also features a 1.3" touchscreen LCM display for easy monitoring and management.
- 24 Gigabit Ethernet ports
- 16 PoE+ ports with 95W total PoE availability
- 2 SFP ports for fiber uplink connectivity
- Fanless, silent cooling design
- 1.3" touchscreen LCM display for easy monitoring
- Rack-mountable industrial design
| Specification | Value |
|---|---|
| Dimensions | 442 x 200 x 44 mm (17.4 x 7.9 x 1.7") |
| Weight | 3 kg (6.6 lb) without mounting brackets |
| Total Non-Blocking Throughput | 26 Gbps |
| Switching Capacity | 52 Gbps |
| Forwarding Rate | 38.69 Mpps |
| Max. Power Consumption | 25W (Excluding PoE output) |
| Total Available PoE | 95W |
| Max. PoE Wattage per Port | 32W |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
- Datasheet - Comprehensive technical specifications and features.
- Installation Guide - Step-by-step instructions for setup and installation.
