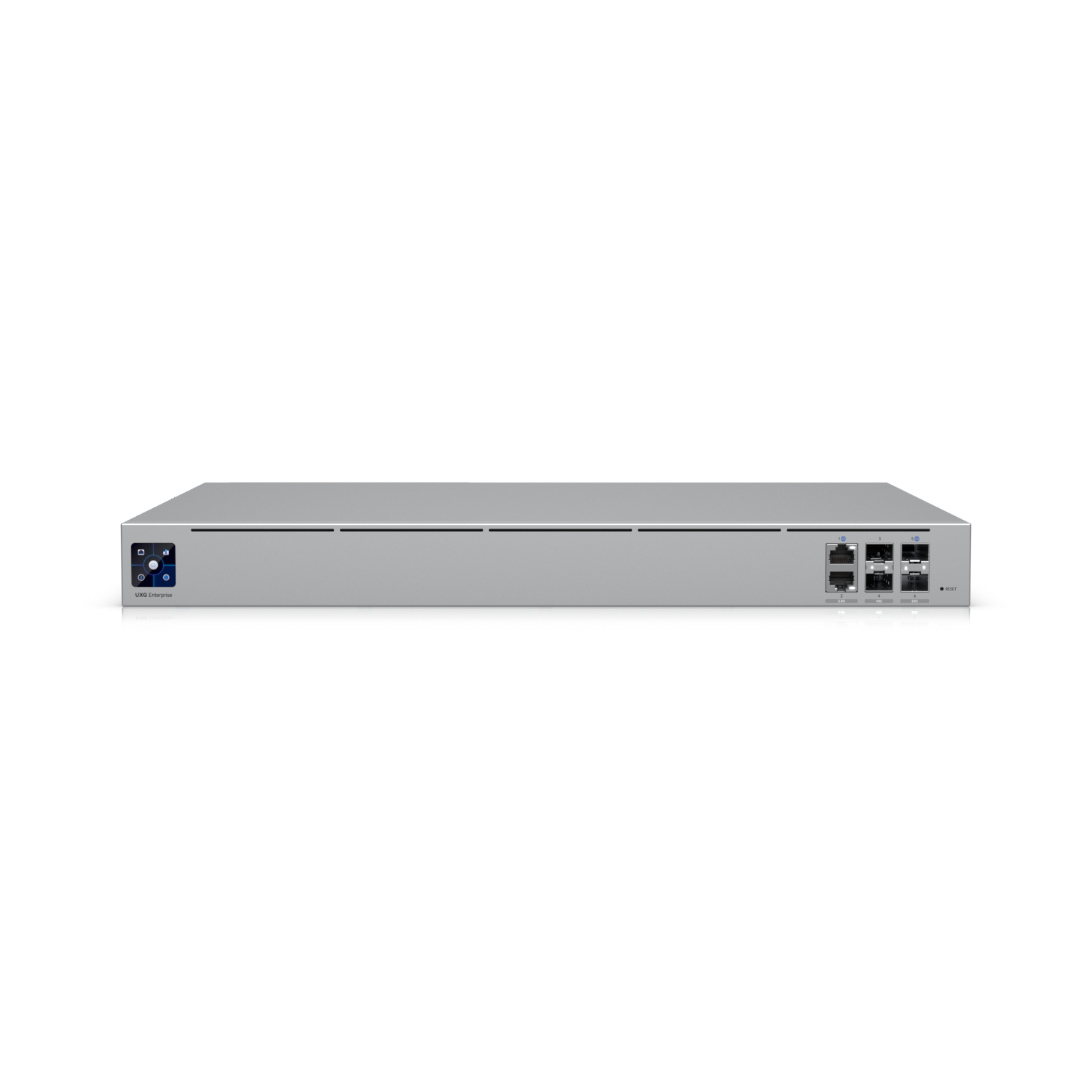

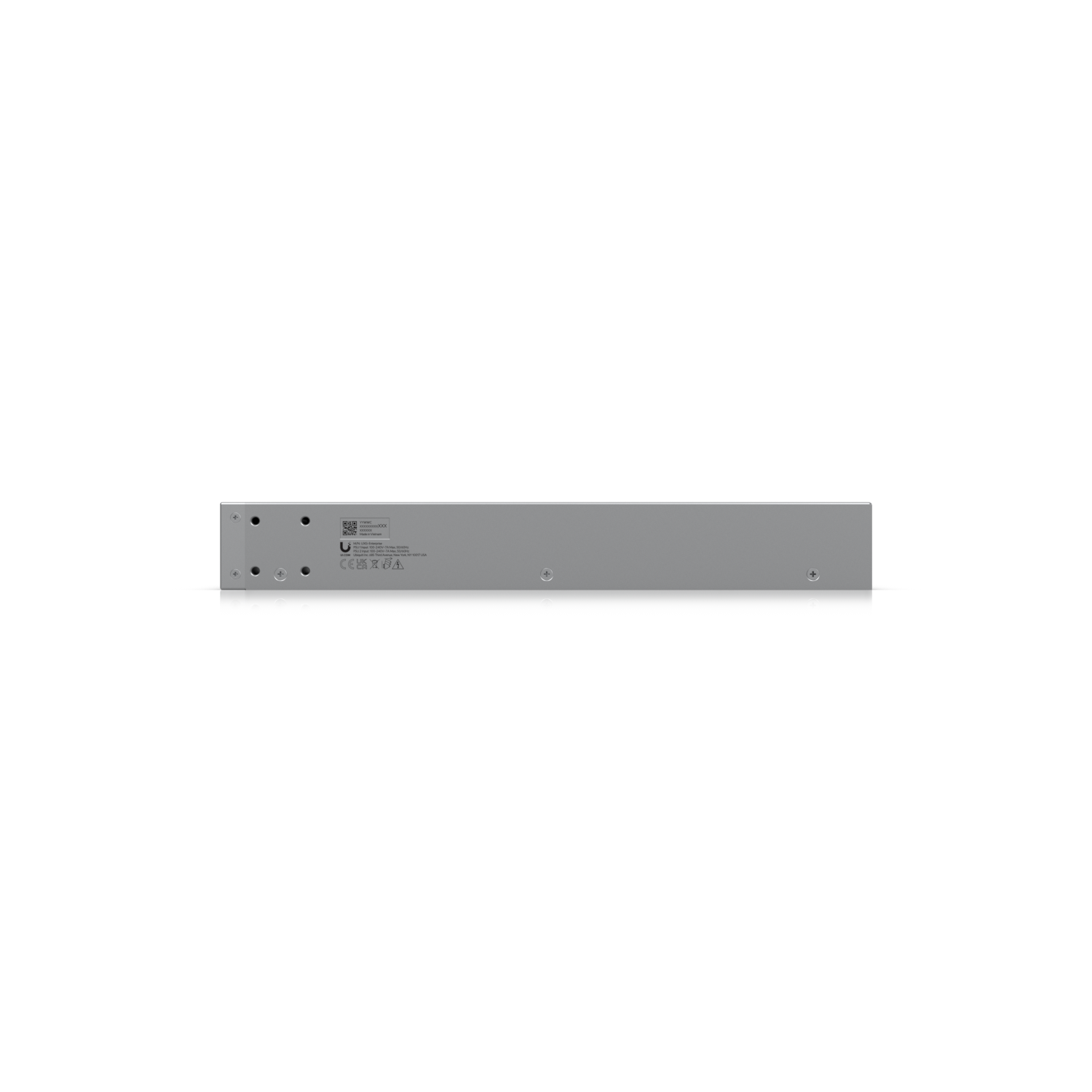

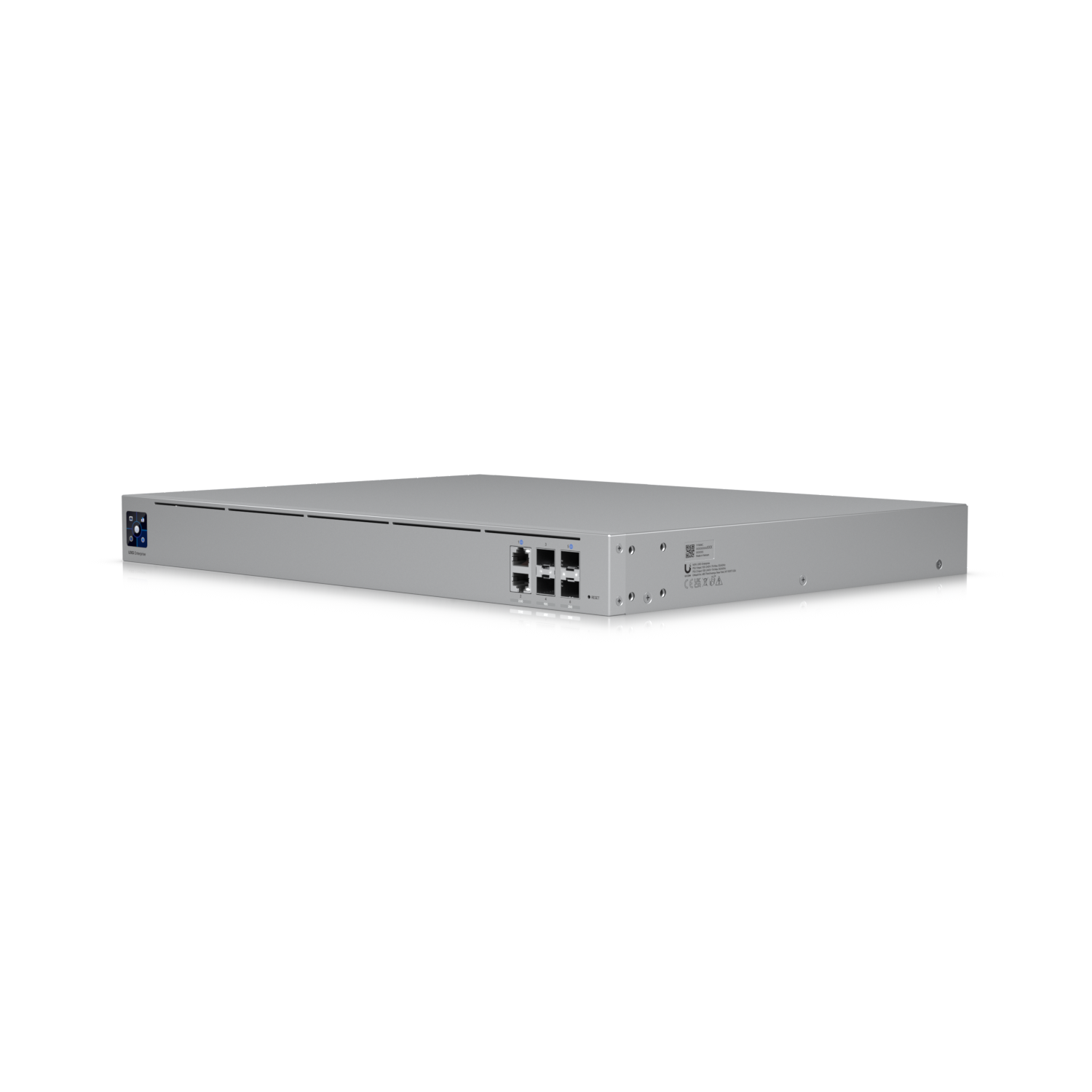

UniFi Gateway Enterprise
By Brian Long
The UniFi Gateway Enterprise (UXG-Enterprise) is engineered to meet the demands of large-scale enterprise networks, offering robust performance and advanced security features. With its 25G SFP28 ports and multi-WAN load balancing capabilities, it ensures seamless and efficient data routing across complex network infrastructures.
Equipped with an 18-core ARM® v8.2 processor running at 2 GHz and 16 GB DDR4 memory, the UXG-Enterprise delivers exceptional processing power for high-throughput applications. Its redundant hot-swappable 150W power supplies and fanless design enhance reliability and minimize downtime, making it a dependable choice for mission-critical environments.
The gateway supports advanced security protocols, including application-aware firewall rules, signature-based IPS/IDS threat detection, and SSL/TLS inspection with NEXT AI (when paired with CloudKey Enterprise or Official UniFi Hosting), providing comprehensive protection against network threats. Additionally, it offers license-free SD-WAN capabilities, WireGuard, L2TP, and OpenVPN support, facilitating secure and flexible connectivity options.
- 25G SFP28 and 10G SFP+ ports for high-speed connectivity
- Multi-WAN load balancing with failover support
- 12.5 Gbps IPS routing throughput
- Redundant hot-swappable 150W power supplies
- Advanced security features including application-aware firewall and IDS/IPS
- License-free SD-WAN and VPN support
- 1.3" touchscreen display for real-time monitoring
- Fanless design for silent operation
| Specification | Value |
|---|---|
| Dimensions | 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8") |
| Weight | 6.5 kg (14.3 lb) |
| Processor | 18-core ARM® v8.2 at 2 GHz |
| System Memory | 16 GB DDR4 DIMM |
| LAN Interfaces | (1) 25G SFP28, (2) 10G SFP+, (1) 2.5 GbE RJ45 |
| WAN Interfaces | (1) 25G SFP28, (1) 2.5 GbE RJ45 |
| Max. Power Consumption | 82W |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
- Datasheet - Comprehensive technical specifications and features.
- Installation Guide - Step-by-step instructions for setup and installation.
For quotes and expert services, contact Synapses Technologies—your trusted partner for UniFi solutions, installation, and project management.
