UniFi Gateway Max
By Brian Long
The UniFi Gateway Max (UXG-Max) is a high-performance gateway designed to deliver advanced routing and security features for medium to large-sized networks. Equipped with a quad-core ARM Cortex-A53 processor running at 1.5 GHz and 2 GB DDR4 memory, it ensures efficient network performance and management.

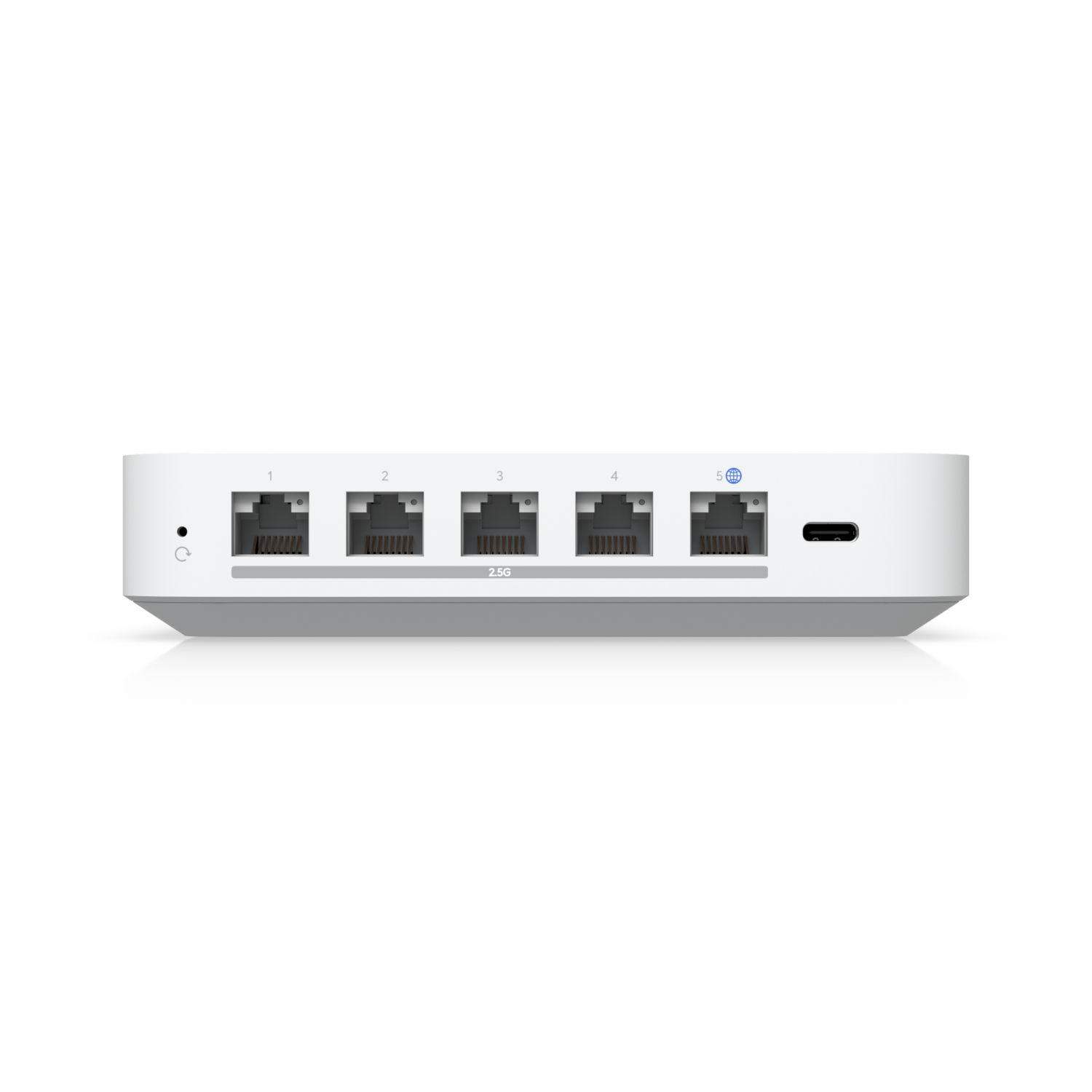

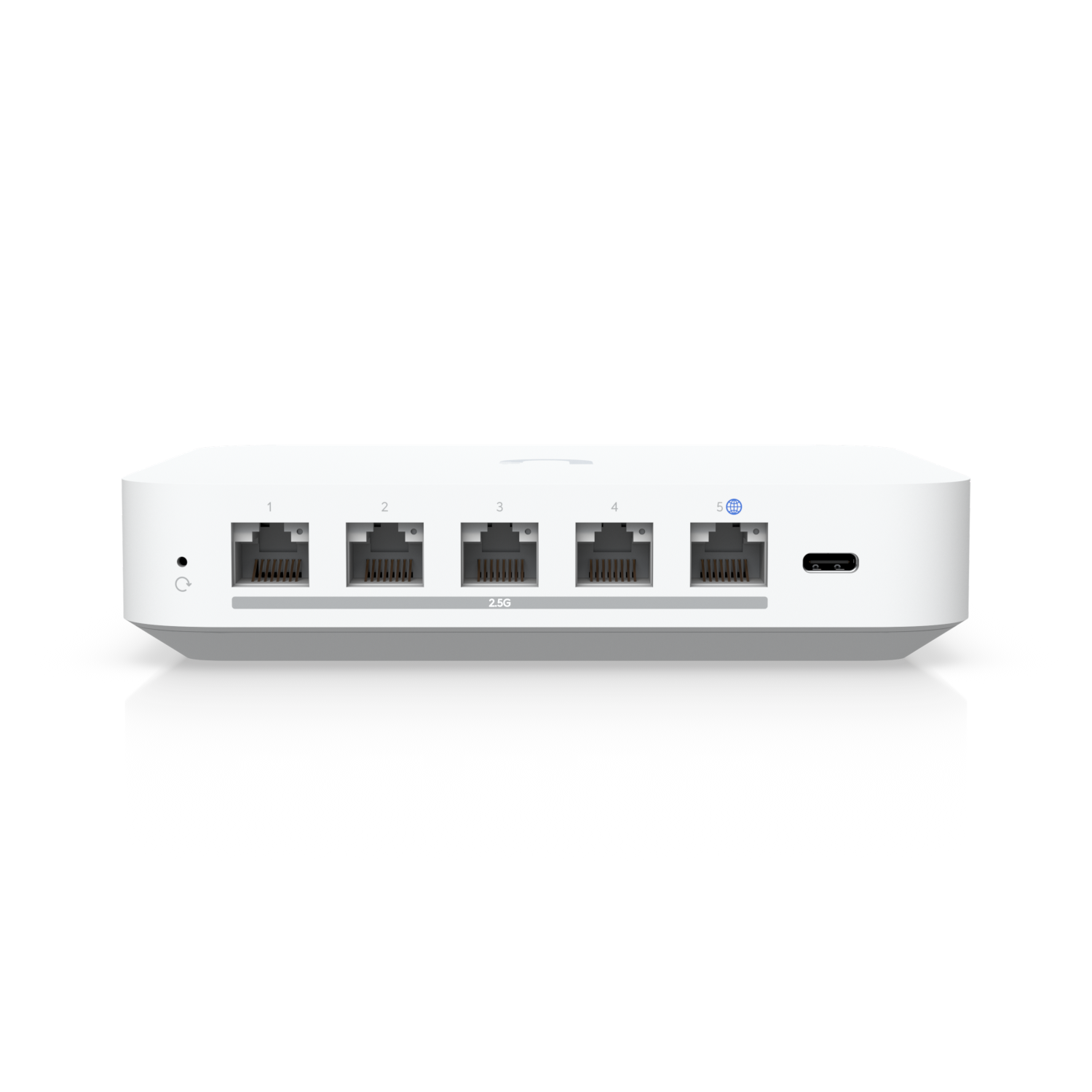

This gateway features one 2.5 GbE RJ45 WAN port and four 2.5 GbE RJ45 LAN ports, providing seamless high-speed connectivity for your network devices. Its compact design and USB-C power method allow for easy integration into various network setups.
The UXG-Max supports a comprehensive suite of advanced routing and security functionalities, including application-aware firewall rules, signature-based IPS/IDS threat detection, content filtering, and VLAN-based traffic segmentation. It also offers WiFi Quality of Service (QoS) when paired with UniFi Access Points, ensuring optimal performance for your wireless devices.
With an IDS/IPS throughput of up to 1.5 Gbps, the UniFi Gateway Max is capable of handling high-speed internet connections while maintaining robust security measures. Its fanless design ensures silent operation, making it suitable for noise-sensitive environments.
- Quad-core ARM Cortex-A53 processor at 1.5 GHz
- 2 GB DDR4 memory
- 1 x 2.5 GbE RJ45 WAN port
- 4 x 2.5 GbE RJ45 LAN ports
- USB-C powered (adapter included)
- Advanced routing and security features
- Application-aware firewall rules
- Signature-based IPS/IDS threat detection
- Content, country, domain, and ad filtering
- VLAN/subnet-based traffic segmentation
- WiFi QoS with UniFi Access Points
- Compact and fanless design for silent operation
| Specification | Value |
|---|---|
| Dimensions | 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2") |
| Weight | 520 g (1.1 lb) |
| Enclosure Material | Polycarbonate |
| Processor | Quad-core ARM Cortex-A53 at 1.5 GHz |
| Memory | 2 GB DDR4 |
| Management Interface | Ethernet, Bluetooth |
| Networking Interfaces | LAN: (4) 2.5 GbE RJ45 portsWAN: (1) 2.5 GbE RJ45 port |
| IDS/IPS Throughput | 1.5 Gbps* |
| Power Method | USB Type-C (5V/3A) |
| Max. Power Consumption | 9.6W |
| Operating Temperature | -10 to 40° C (14 to 104° F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| *Measured with iPerf3 on DHCP WAN. Performance may be reduced with PPPoE depending on ISP implementation. |
- Datasheet - Comprehensive technical specifications and features.
- Installation Guide - Step-by-step instructions for setup and installation.
